Multi Function Professional Puncher – B1

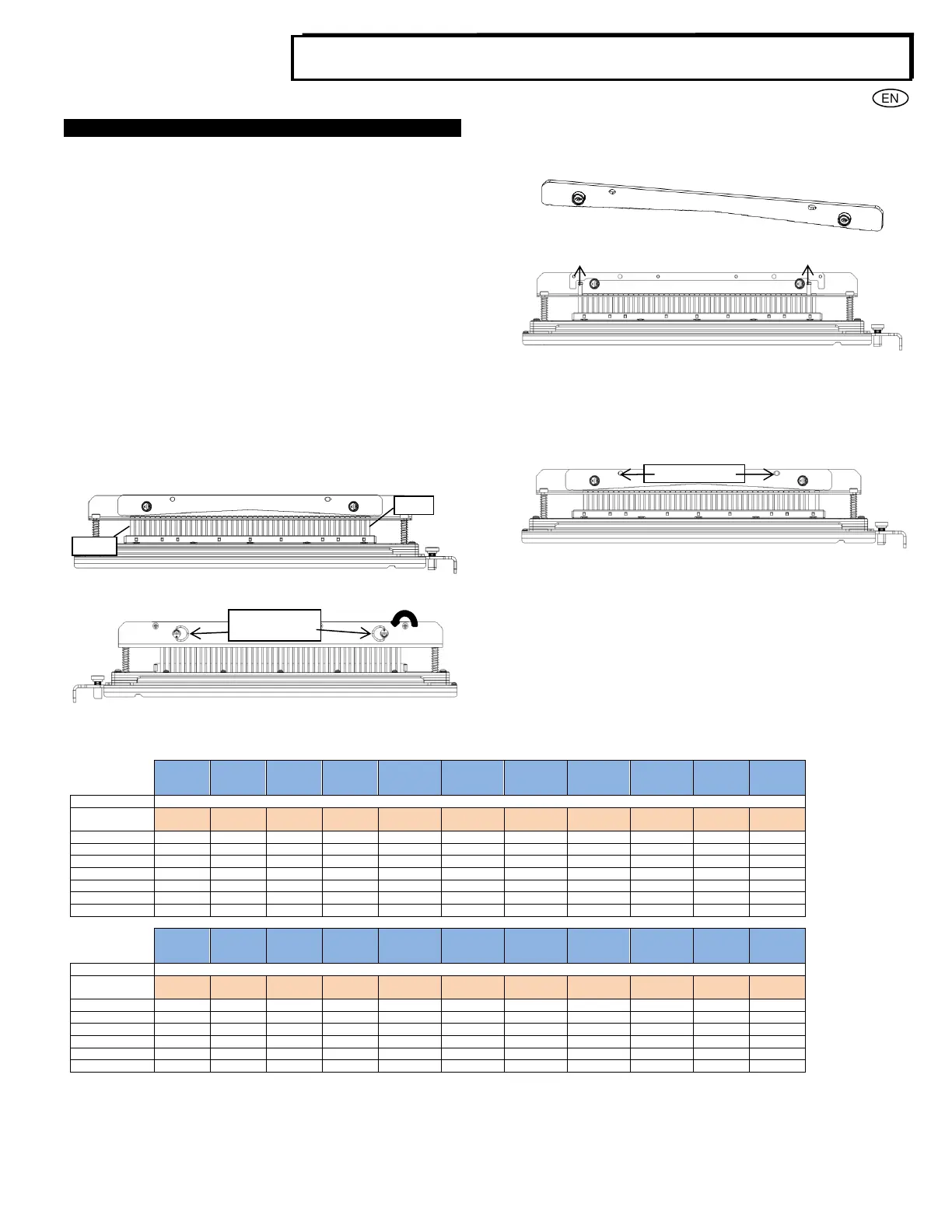

8. DIE SET USER MANUAL
The die sets for the MFPP-B1 are intended to work with multiple paper
sizes and sheet feed directions. In order to accommodate different sheet
sizes this die set must be configured to the correct number of punching
pins and the die stop must be set to the proper position. The die label
contains information on the common paper punching sizes, for the
uncommon sizes please refer to
Table 8.1.
Glossary
LEF- Long Edge Feed- Indicates that the paper is being fed through the
machine so that the longer side of the sheet will be punched.
SEF- Short Edge Feed- Indicates that the paper is being fed through the
machine so that the shorter side of the sheet will be punched.
Statement Paper- 8.5" X 5.5"
Legal Paper- 8.5" X 14"
Ledger Paper- 11" X 17"
Pin Numbering
Die punching pins are numbered sequentially starting from the handle
end. Figure 8.1 shows a 47 hole coil die as an example. All square and
round hole die sets follow the same pin numbering format.
Figure 8.1 Coil Die Set Pin Numbering
Figure 8.2 Pressure Bar Removal
To remove punch pins from the MFPP-B1 first turn the two Quarter Turn
Fasteners CCW direction to release the pressure bar. Remove the
pressure bar and set aside.
Figure 8.3 Pressure Bar
Figure 8.4 Pin Removal
Note: Lubricating oil may be present on the die pins, wear gloves if
needed.
Lift up and remove the desired pins according to Table 8.1. Store pins in
the pin storage tray inside front door of machine making sure pins cannot
be dropped, damaged or lost while removed.
Figure 8.5 Replace Pressure Bar
Replace the pressure bar by lining up dowel pin holes with exposed
dowel pins. Hold pressure bar so that it is seats completely over dowel
pins and then rotate Quarter Turn Fasteners clockwise until a click is felt
to lock pressure bar in position. The pressure bar can be locked only if
the orientation is correct, it cannot be locked in any other orientation.
Important!
Before reinserting, clean the punch pin to remove any dust or foreign
substances.
Make sure pressure bar is attached and both Quarter Turn Fasteners
are in the locked position prior to inserting the die set into the machine
or serious damage can occur to both the machine and die set.
Pin Numbers to Remove Based On Paper Size or Orientation
Pin Numbers to Remove Based On Paper Size or Orientation
*For CombBind 20H Configuration Pull Pin Number 1
Table 8.1 Pin Removal Guide
The above chart shows the information on which pins need to be removed to correctly punch each sheet size and configuration that the MFPP-B1 can
accept. For standard offering dies not found in the chart no pin adjustment is necessary.
