Basic Functions
Playback
E
Playing Back on a TV Screen
TVs with SCART Terminal
Refer also to the TV or VCR instruction manual.
1. Turn off all the devices before starting the connections.
2. Connect the PC-A10 SCART Adapter to the TV or VCR’s SCART
terminal.
3. Connect the STV-250N Stereo Video Cable to the camcorder’s AV
terminal and the audio terminals on the SCART Adapter.
Connect the white plug to the white AUDIO terminal L (left), and the red plug to the red
AUDIO terminal R (right) and the yellow plug to the yellow VIDEO terminal.
4. If connecting to a TV, set the input selector to VIDEO. If connecting to
a VCR, set the input selector to LINE.
Open the terminal cover
STV-250N Stereo Video
Cable (supplied)

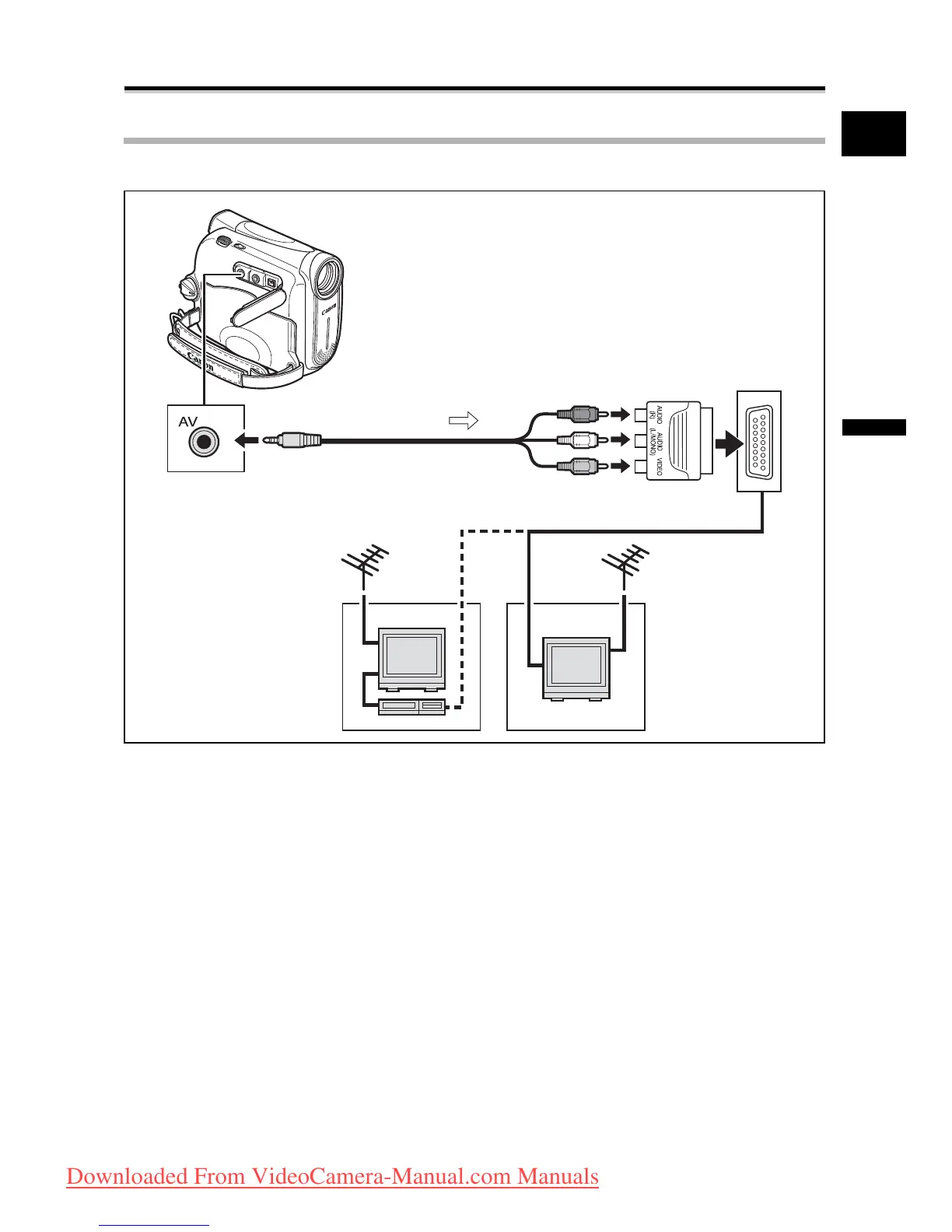

PC-A10 SCART
Adapter
Signal flow
