PRODUCT NO. 088-1759-2
ASSEM BLY
Step 13
Requires E1, E2, J, K1, K2, K3, M, BB, EE

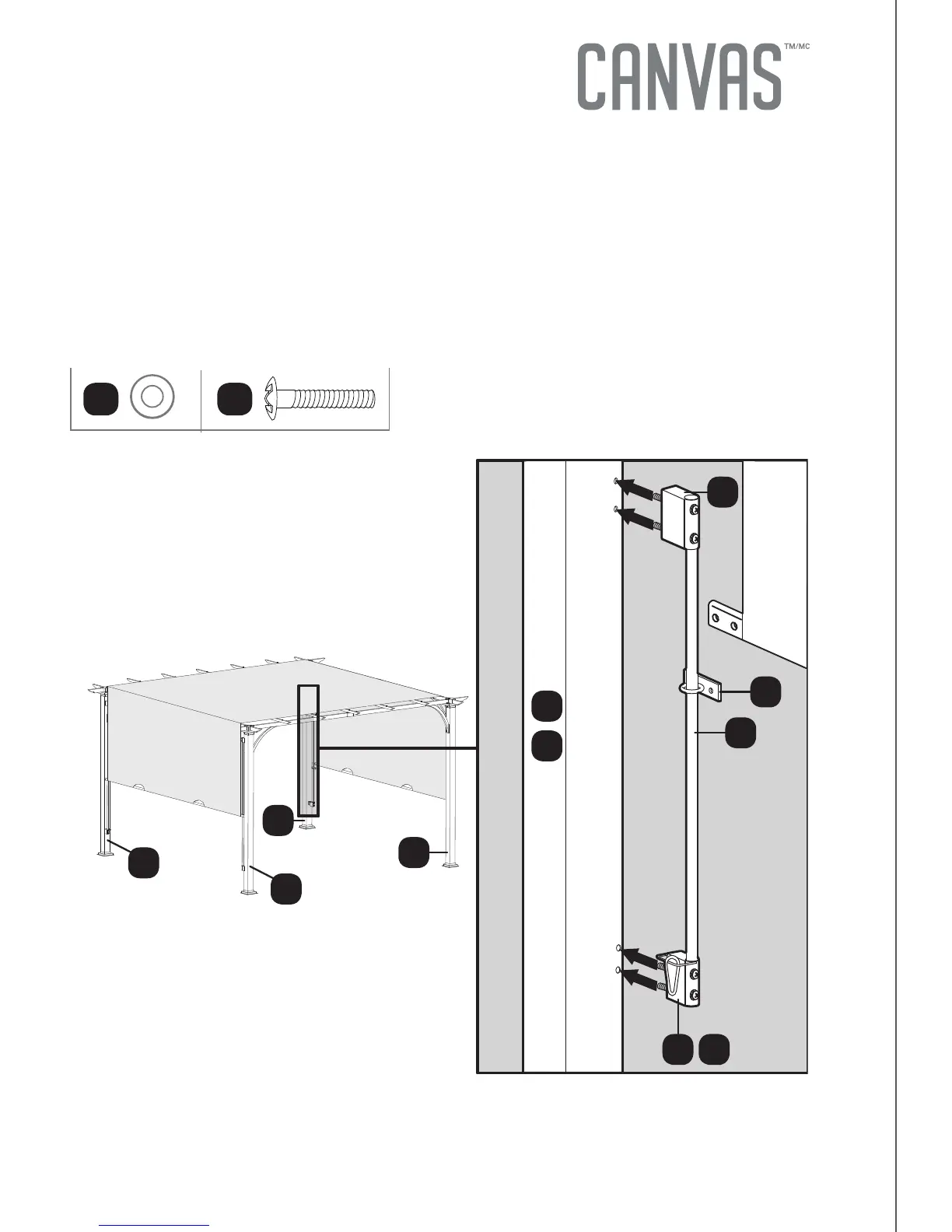

Attach the assembled Guideway bars (M) to Posts (E1, E2) using M6x75 screws
(EE) and M6 washers (BB).
EE
BB
E1
E1
E2
E2
E1
K2 K3
M
J
K1
E2
NOTE:
When attaching Guideway bars (M) to Posts (E1, E2), make sure that the Guideway
bars (M) with Connectors (K2) attach to Posts (E1) and the Guideway bars (M) with
Connectors (K3) attach to Posts (E2). (Clip should be toward inner side of pergola.)
