PRODUCT NO. 088-1759-2
ASSEM BLY

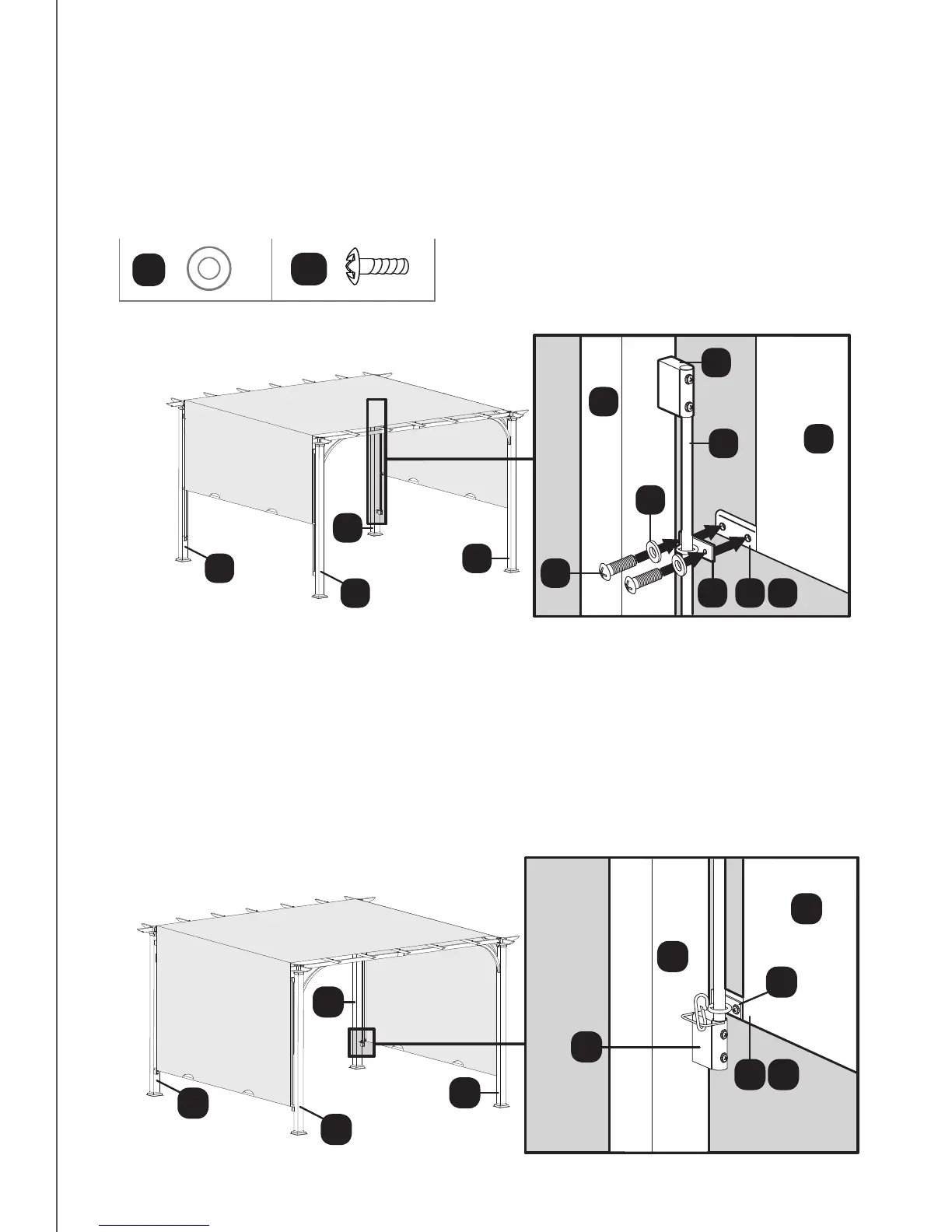

Step 15
Requires J, K2, K3, L1, L2
Heavy wind can cause damage or can blow the canopy o of the frame. To prevent
damage to the canopy, pull down the tubes (L1, L2) and attach each latch on
Connector for rail (K2, K3) to each Connector for the tube of canopy (J).
E1
K2
E1
L1
J
L2
N
E2
E2
E1
Step 14
Requires J, L1, L2, BB, DD
Attach each Connector for the tube of canopy (J) to the end of the Tubes for
the canopy (L1, L2) using M6x15 screws (DD) and M6 washers (BB).
E1
E1
E2
E2
E1
M
N
J
L1
L2
K1
DD
BB
BB
DD
