PRODUCT NO. 088-1760-6
ASS E MBLY

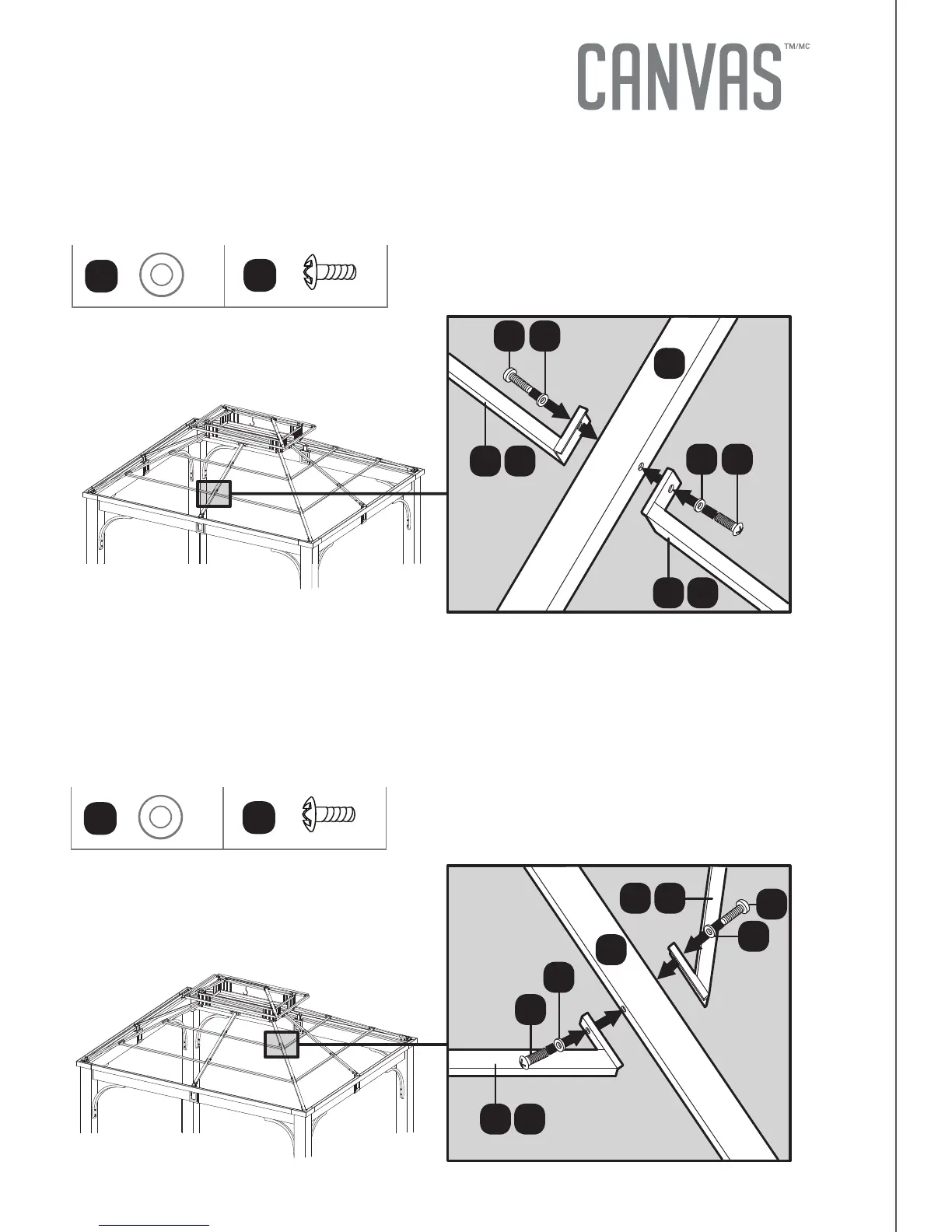

Step 23
Requires F1, L3, L4, M3, M4, BB, CC
Attach other end of each beam (L3, L4, M3, M4) to Slanting bar for large roof
(F1) using M6x15 screws (CC) and M6 washers (BB).
CC
CC
BB
F1
M3
L3
M4
L4
BB
Step 22
Requires G, L3, L4, M3, M4, BB, CC
Attach one end of each beam (L3, L4, M3, M4) to Middle bar for large roofs (G)
using M6x15 screws (CC) and M6 washers (BB).
M3
L3
G
CC BB
BB
CC
M4
L4
BB
CC
BB
CC
