Instruction manual BUCH
Please keep this instruction manual for future reference
11
Extra lengths and/or bends may be required, depending on the length required and
whether there is any structural material in the run e.g. rafters.
Some authorities require rangehoods to be vented outside. Ducted models should
comply with this requirement in every aspect.
INSTALLATION POSITION
When installing the rangehood, the lower edge of the unit must be a minimum of
600mm (650 for gas cooker) above the cooking range. The recommended position
for the hood is 650mm above hotplates.

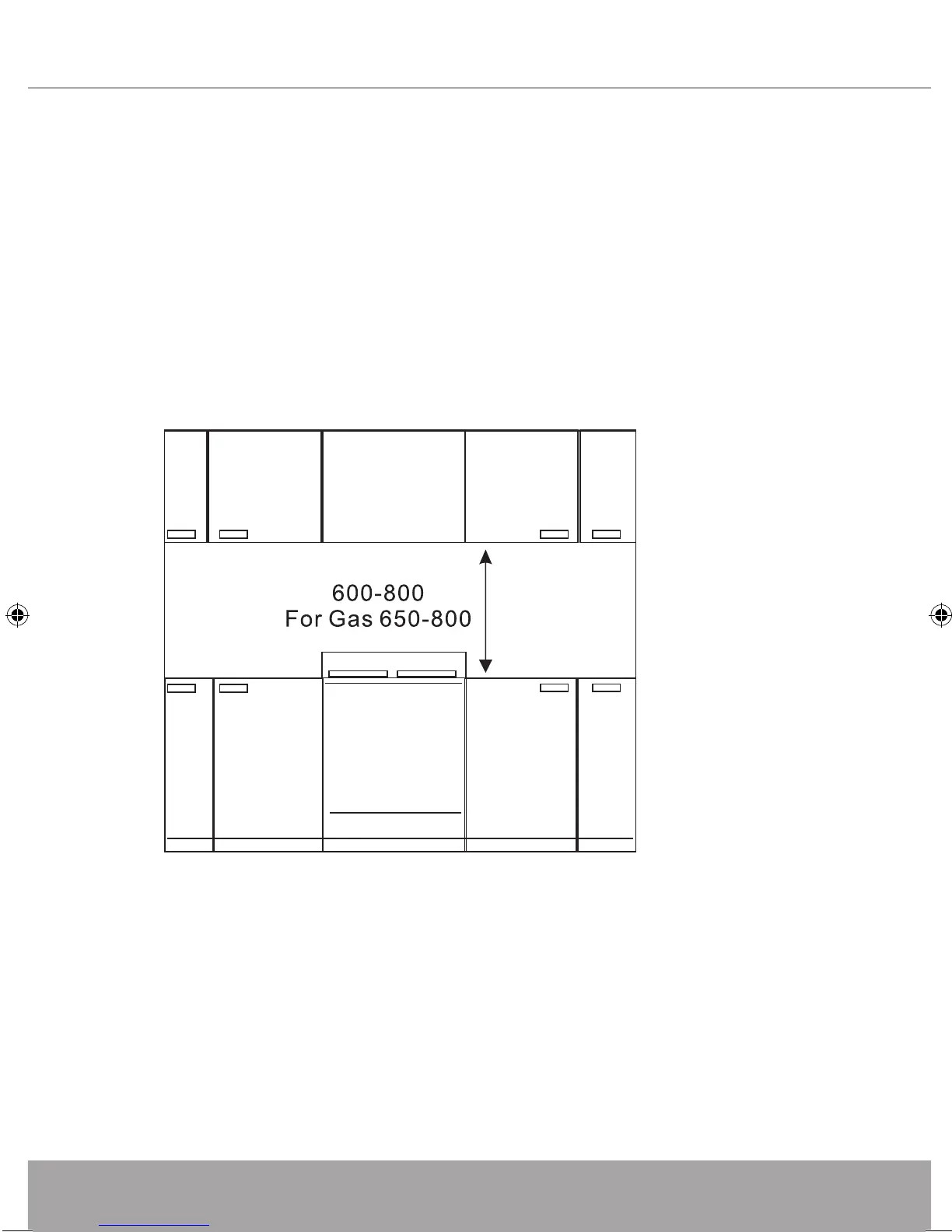

Pictures: Minimum height from the hob surface to the underside face of the
rangehood is : 600mm for electric hob, 650mm for gas hob.
Notes:
If the instructions for the gas hob specify a greater distance, this has to be taken
into account. Any installation above 750mm will compromise performance.
BUCH Extractor Instruction manual.indd 11 06/07/2017 14:45
