Instruction manual BUCH
Please keep this instruction manual for future reference
12
INSTALLATION

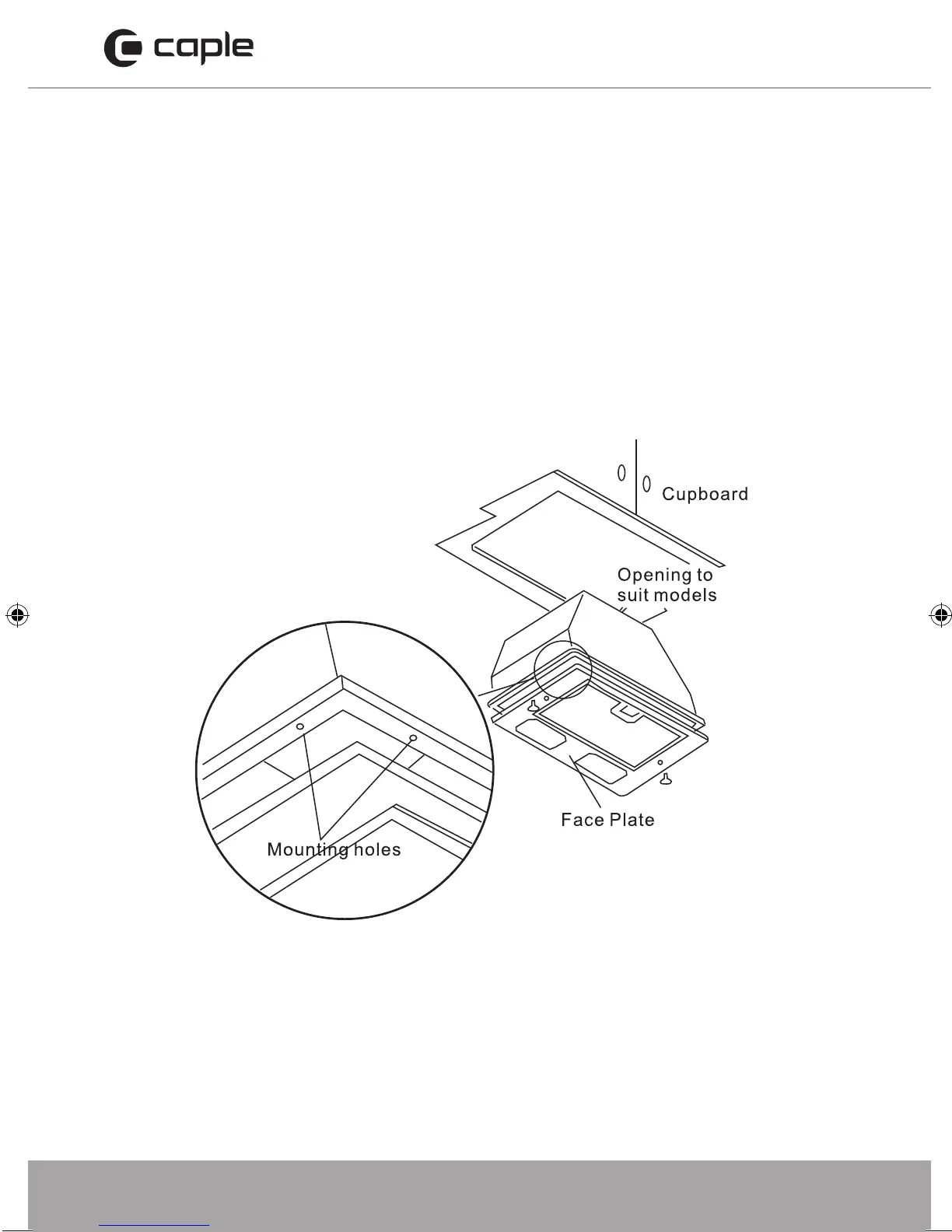

MOUNTING THE RANGEHOOD
Fit the ducting adapter to the rangehood using the short screws supplied. Provide
an opening on the underside of the cupboard to suit models/provide 490mm x
256mm for 600 model.
Remove the face plate of the rangehood by undoing the two visible screws located
on both side-ends. Eight mounting holes around the unit then are accessible.
Lift the rangehood and fit through the opening cupboards. Secure unit using long
screws supplied. Refit face plate.
BUCH Extractor Instruction manual.indd 12 06/07/2017 14:45
