Instruction manual C844i 21
Please keep this instruction manual for future reference
INSTALLATION

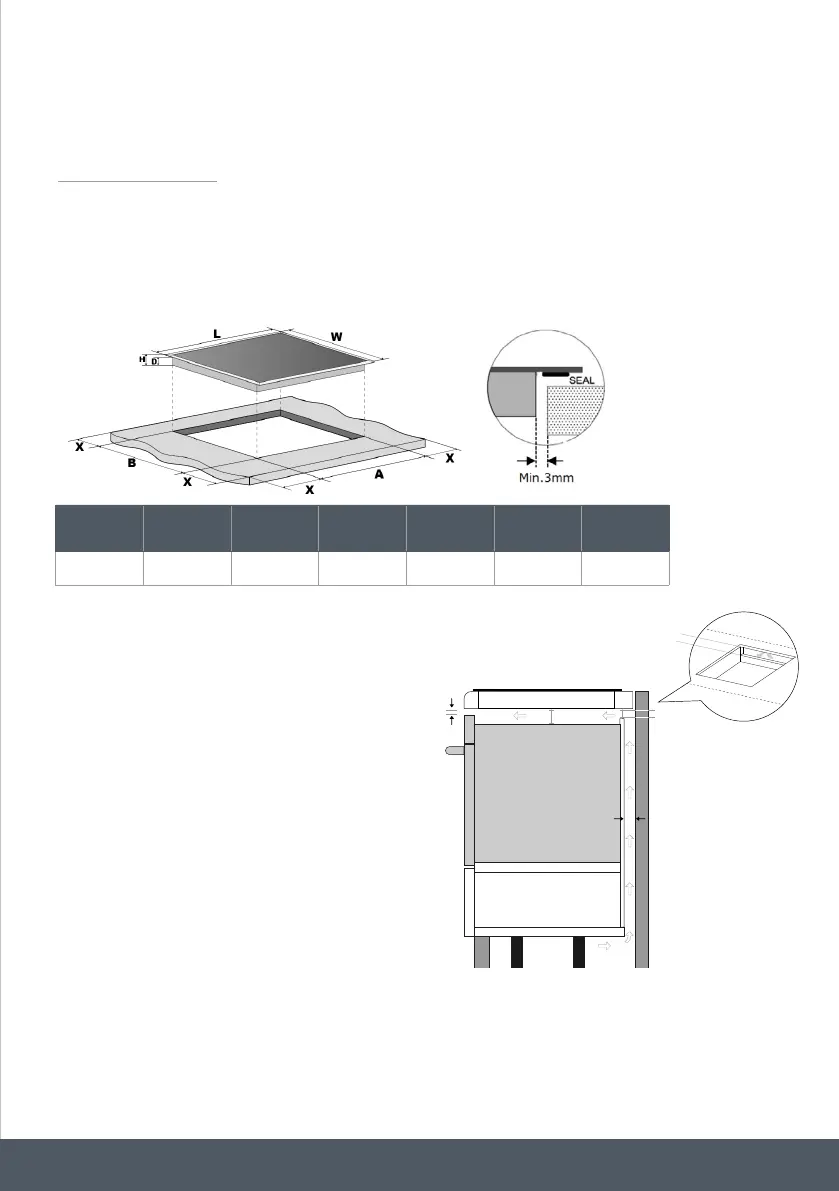

Cut out the work surface according to the sizes shown in the drawing. For the purpose of
installation and use, a minimum of 5cm space shall be preserved around the hole. Be sure the
thickness of the work surface is at least 30mm. Please select heat-resistant work surface material
to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:
L (MM) W (MM) H (MM) D (MM) A (MM) B (MM) X (MM)
590 520 60 56 564 494 50 min
VENTILATION REQUIREMENTS
To ensure adequate ventilation of your induction
hob, please ensure the installation requirements
shown in this diagram are followed.
A 5mm gap at the front of the unit must be left,
and a minimum 10mm gap must be cut out at
the back of the cabinet to allow air to circulate.
A minimum distance of 50mm must be left
between the underside of the hob and the
appliance directly below. If a drawer is installed
below the hob, a minimum distance of 50mm
must be left between the underside of the hob,
and the contents of the drawer.
Over filling the drawer may effect the airflow. If the drawer is overfilled or the ventilation requirements
not followed, this will void the guarantee.
NOTE:
The safety distance between the hotplate and cupboard above the hotplate should be at least 600mm.
min. 50mm
min. 10mm
min. 10mm
5mm
min. 20mm
VENTILATION REQUIREMENTS
To ensure adequate ventilation of your induction hob
installation requirements shown in this diagr
A 5mm gap at the front of the unit must be left,
must be cut out at the back of the cabinet to allow air to circulate
A minimum distance of 50mm must be left between the underside of the hob
and the appliance directly below.
minimum distance of 50mm must be left between the underside of the hob
and the contents of the drawer.
Over filling the drawer may effect the airflow
