Caple C873G - Inset Installation Details

17Instruction manual C873G, C866G & C848GPlease keep this instruction manual for future reference
If cladding made from a combustible material (e.g. wood) is used on an adjacent wall, the
minimum distance between the worktop cut-out and the cladding must be 50mm.
If cladding made from non-combustible materials (e.g. metal, natural stone) is installed on the
back wall, the minimum distance between the cut-out and the cladding will be 50mm, less the
thickness of the cladding.
For example: 10mm thick stainless-steel splash-back/cladding
50mm – 10mm = minimum distance of 40mm

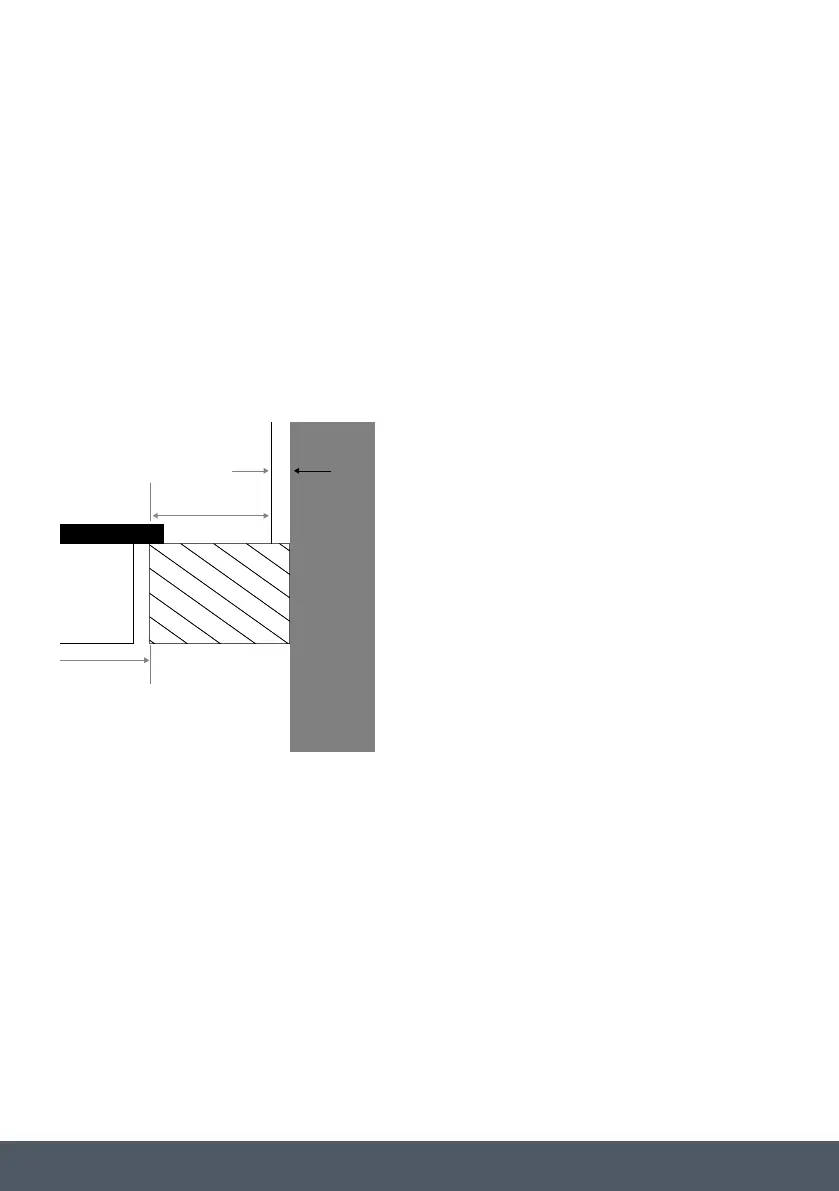

A. Wall
B. Cladding Dimension ‘x’ = thickness of cladding material
C. Worktop
D. Worktop cut-out
E. Minimum distance to:
Combustible materials 50mm
Non-combustible materials 50mm – Dimension ‘x’
FLUSH MOUNTED INSTALLATION INSET INSTALLATION
D
E
C
C
A
B
x
D
E
A
B
x
INSET INSTALLATION
