It is good practice to isolate the appliance from the
cupboard below in the kitchen unit by means of a separator,
leaving a well space of at least 10mm in depth. (Fig.3).
If the hob is installed over an oven, precautions must be
taken to guarantee installation in accordance with current
accident prevention standards. Pay particular Fig.3 attention
to the position of the electric cable and gas supply hose,
they must not touch any hot parts of the oven. Moreover, if
the hob is installed over an oven without a forced cooling
system, to ensure adequate ventilation air vents must be provided with lower intake surface area
of at least 200cm
2
and upper outlet surface area of at least 60cm
2
.

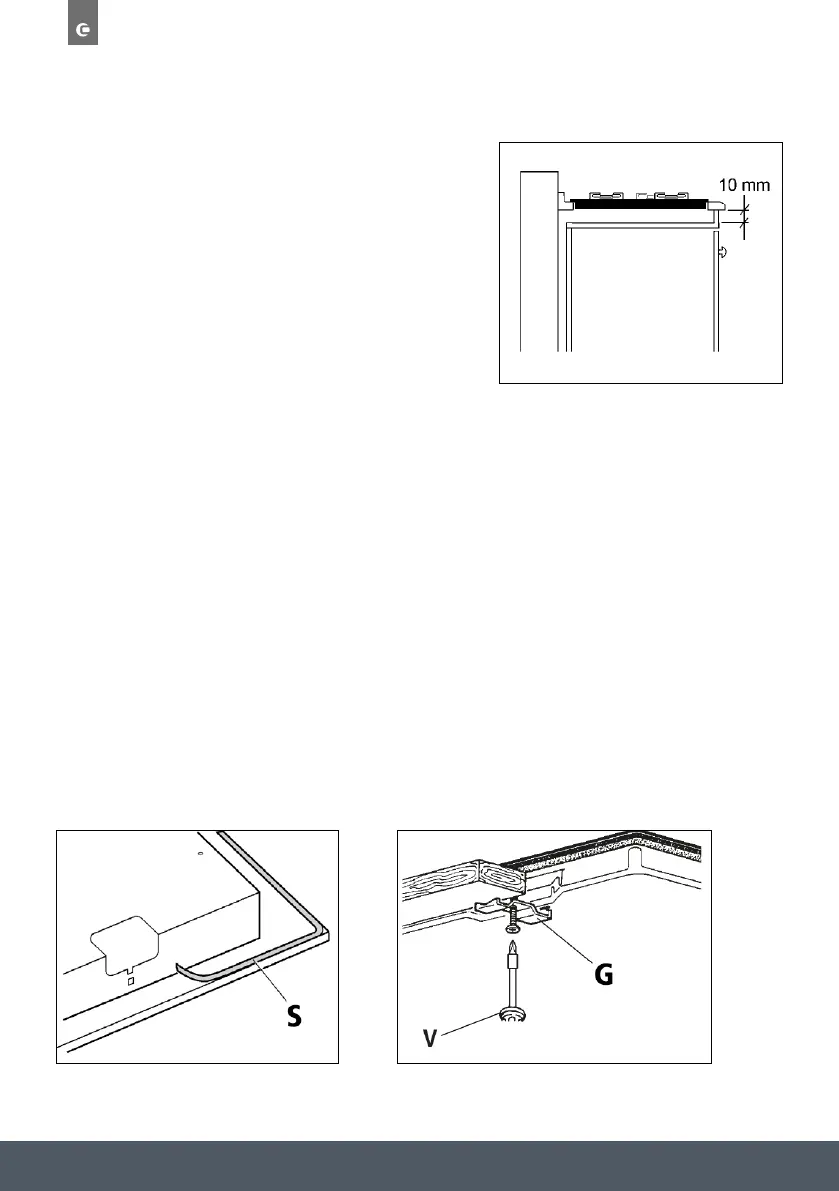

FIXING THE HOB
Each hob is supplied with a special gasket and a set of brackets to be used for securing it to the
worktop.
TO INSTALL THE HOB PROCEED AS FOLLOWS:
› Remove the pan supports and burners from the hob.
› Turn the appliance upside down and fit gasket (S) around the outer edge (Fig.4).
› Place the hob in the unit opening and fix it with screws (V) of brackets (G) (Fig.5).
FIG.4
FIG.3
FIG.5
› Remove the pan supports and burners from the hob.
› Turn the appliance upside down and fit gasket (S) around the outer edge (Fig.3).
› Place the hob in the unit opening and fix it with screws (V) of brackets (G) (Fig.4).
Fig.2
It is good practice to isolate the appliance from the
cupboard below in the kitchen unit by means of a
separator, leaving a well space of at least 10mm in
depth. (Fig.2).
If the hob is installed over an oven, precautions must be
taken to guarantee installation in accordance with
current accident prevention standards. Pay particular
attention to the position of the electric cable and gas
supply hose, they must not touch any hot parts of the oven. Moreover, if the hob is installed over
an oven without a forced cooling system, to ensure adequate ventilation air vents must be
provided with lower intake surface area of at least 200cm
2
and upper outlet surface area of at
least 60cm
2
.
F I XING THE HOB
Each hob is supplied with a special gasket and a set of brackets to be used for securing it to the
worktop.
TO INSTALL THE HOB PROCEED AS FOLLO W S :
Fig.3
Fig.4
V
