13Instruction manual CE902SS/CE902WHPlease keep this instruction manual for future reference

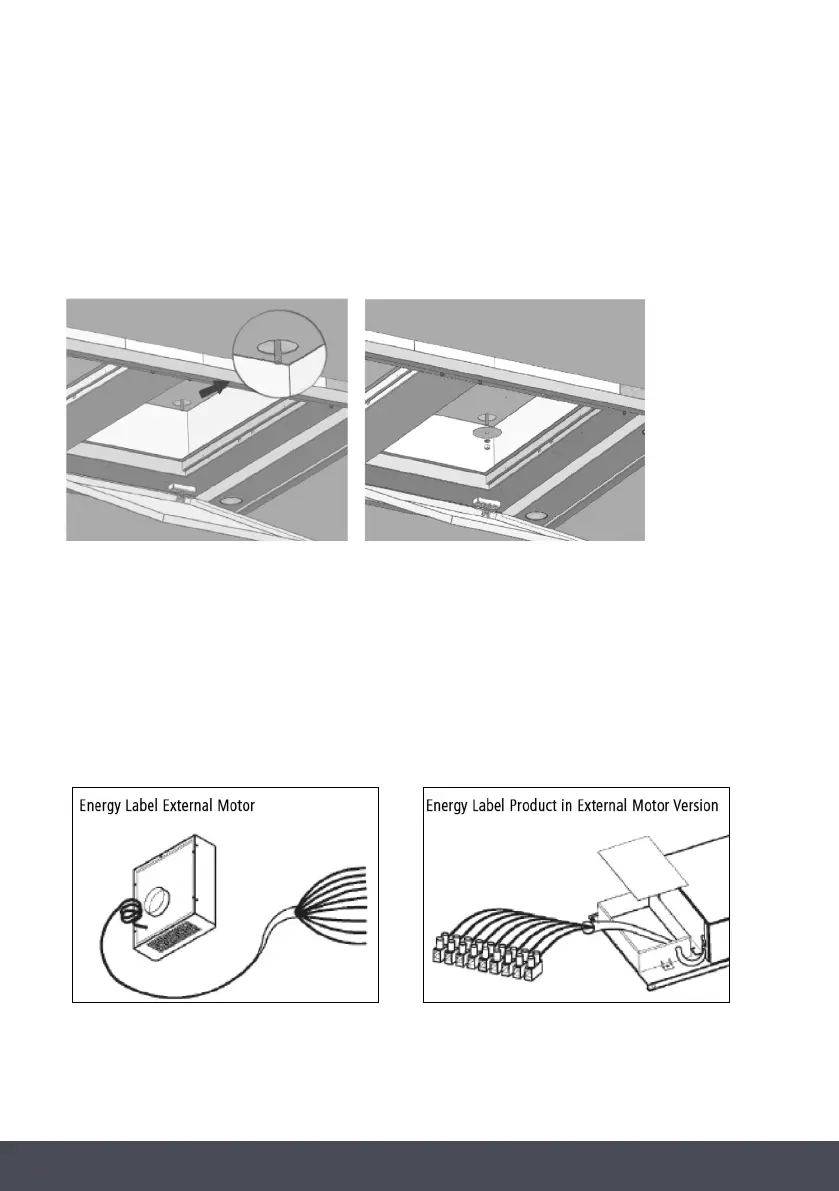

Place the ceiling-mounted hood into the niche, by inserting the threaded bars into the holes
(Fig.7). The outer edge of the hood needs to be perfectly flush with the false ceiling.
Insert the plates and nuts provided into the threaded bars, making sure to tighten them
securely (Fig.8); refit the grease filters and filter cover panels.
FIG.7 FIG.8
FIG.9
Connect the internal motor or the external motor’s cable to the terminal board found inside the
plastic box of the wiring. The cables are colour coded, ensure you respect the cables colours
when performing the electrical connection (Fig.9).
