12 Instruction manual CE902SS/CE902WH Please keep this instruction manual for future reference

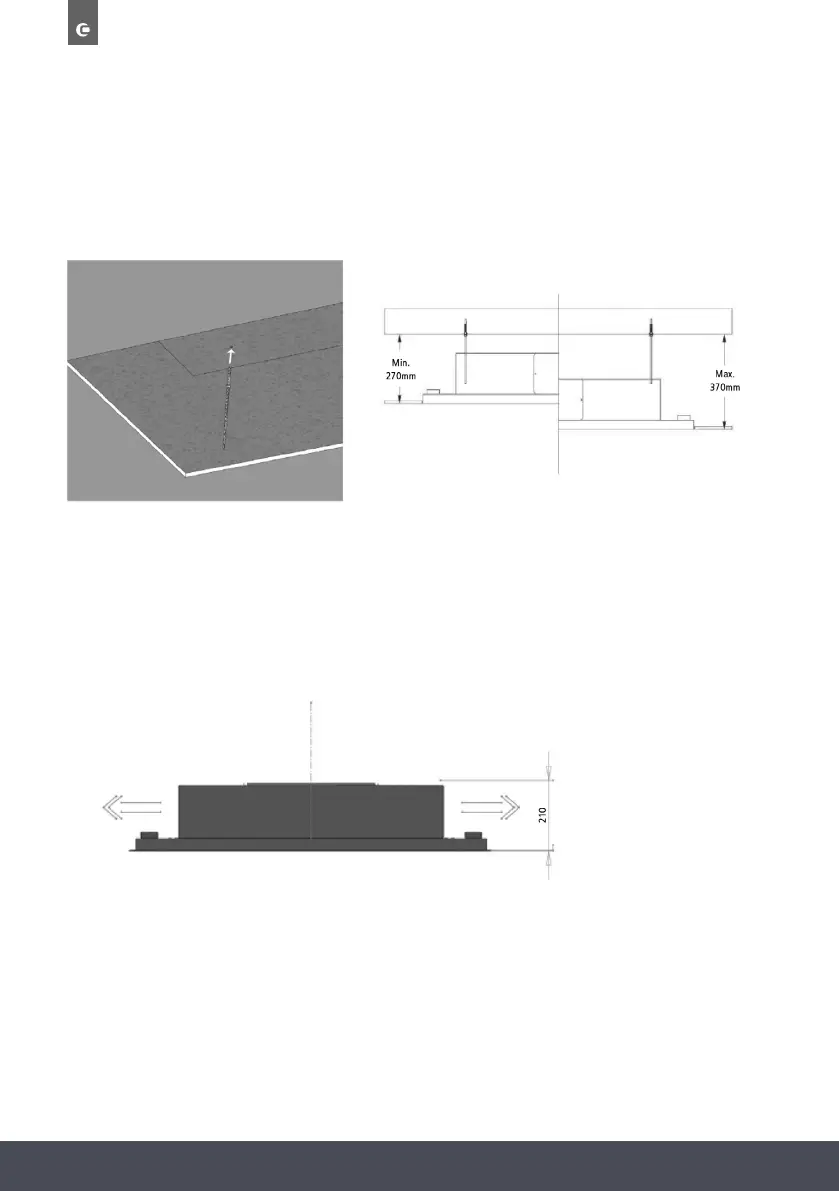

FIG.4 FIG.5
FIG.6
Screw the threaded bars provided into the plugs (Fig.4); the threaded bars are 250mm long
and serve to install the ceiling mounted hood at a distance from the solid ceiling of between
270mm and 370mm (Fig.5).
If the hood is installed with a lateral air outlet, fit a false ceiling with an opening that has a
minimum gap of 210mm between the ceiling and the false ceiling (Fig.6); in case of a larger
gap between the hood and the ceiling, you need to use longer threaded bars.
Make the electrical connections and connect the air outlet pipe.
