11Instruction manual CE902SS/CE902WHPlease keep this instruction manual for future reference
INSTALLATION
Fit a false ceiling with an opening of 865 x 405mm with a minimum distance of 270mm
between the ceiling and the false ceiling.
It is possible to select the side of the hood where the extracted air can be discharged.
After choosing the most suitable position, prepare the ducting. An air outlet connection piece,
with a diameter of 150mm is provided with the appliance. Install the connection piece to the
selected side.
Leave any unused exhaust outlets closed.

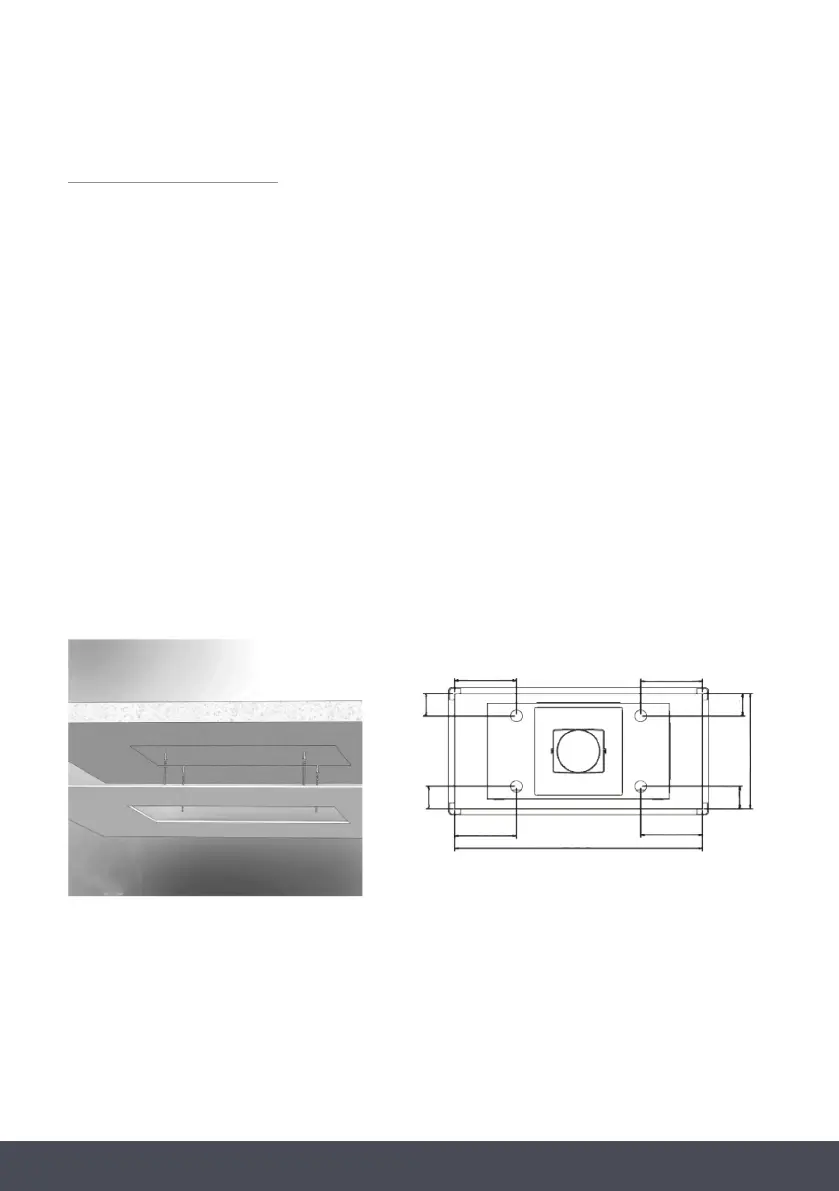

Draw the outline of the hole to house the ceiling mounted hood on the solid ceiling (Fig.2).
Make 4 holes in the ceiling according to the dimensions shown in (Fig.3). Place the metric
plugs provided in the holes.
Open the stainless steel panels, following the instructions in ‘Opening the Panels’ and remove
the grease filters in order to avoid damaging them and to allow installation.
Open the stainless steel panels, following the instructions in ‘Opening the Panels’ and remove
the grease filters in order to avoid damaging them and to allow installation.
FIG.2 FIG.3
215 215
860
215
215
400
78
78
78
78
