INSTALLING THE FURNITURE DOOR
Locate parts A and B (see the below) in the bag with the installation accessories:
A. Door guide
B. Door guide cover

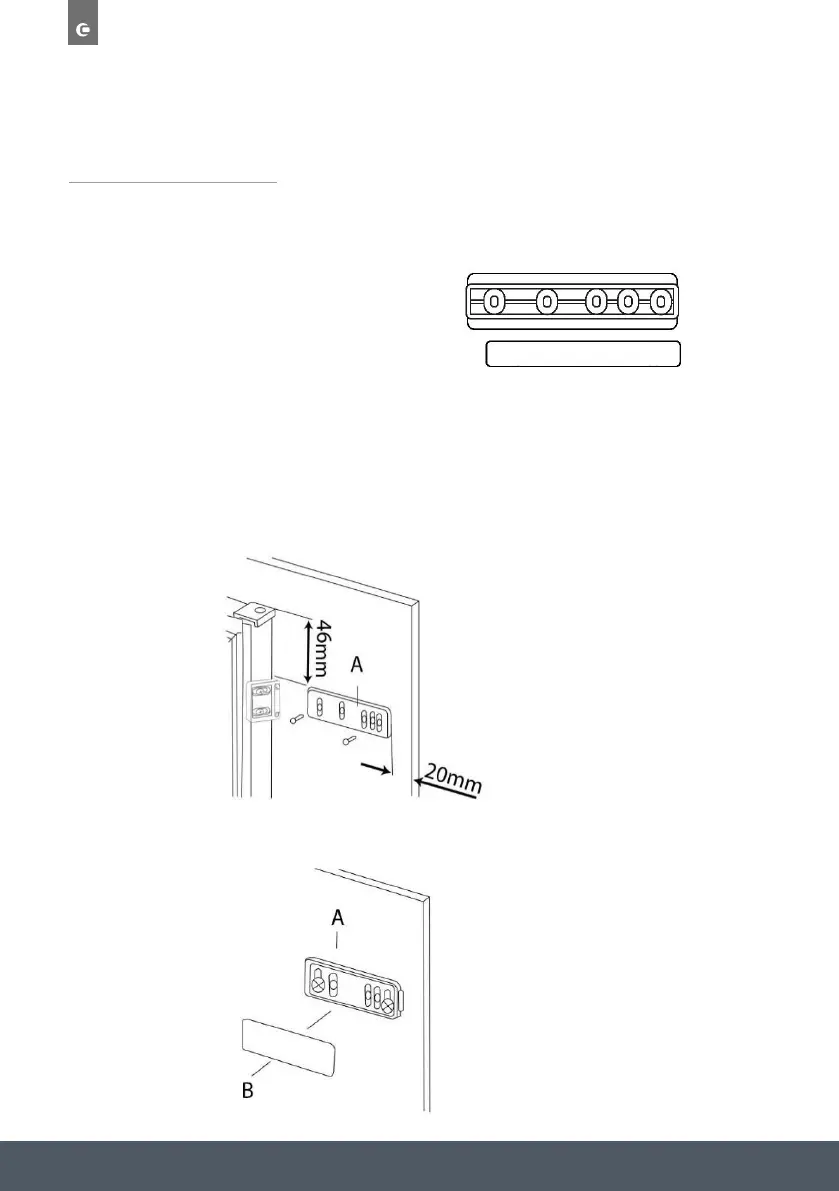

› Open the cabinet door and the fridge door, mark on the back of the cabinet door where
the top of the fridge door reaches. Place the door guide (part A) on the back of the cabinet
door, in the location shown below and mark the position of first hole and the last hole on
the door guide. Fix the door guide into place with 2 torx headed screws.
› Clip the door guide cover (part B) on the door guide (part A) hiding the screws.
