Instruction manual TSCH601 TSCH901 11
Please keep this instruction manual for future reference
INSTALLATION

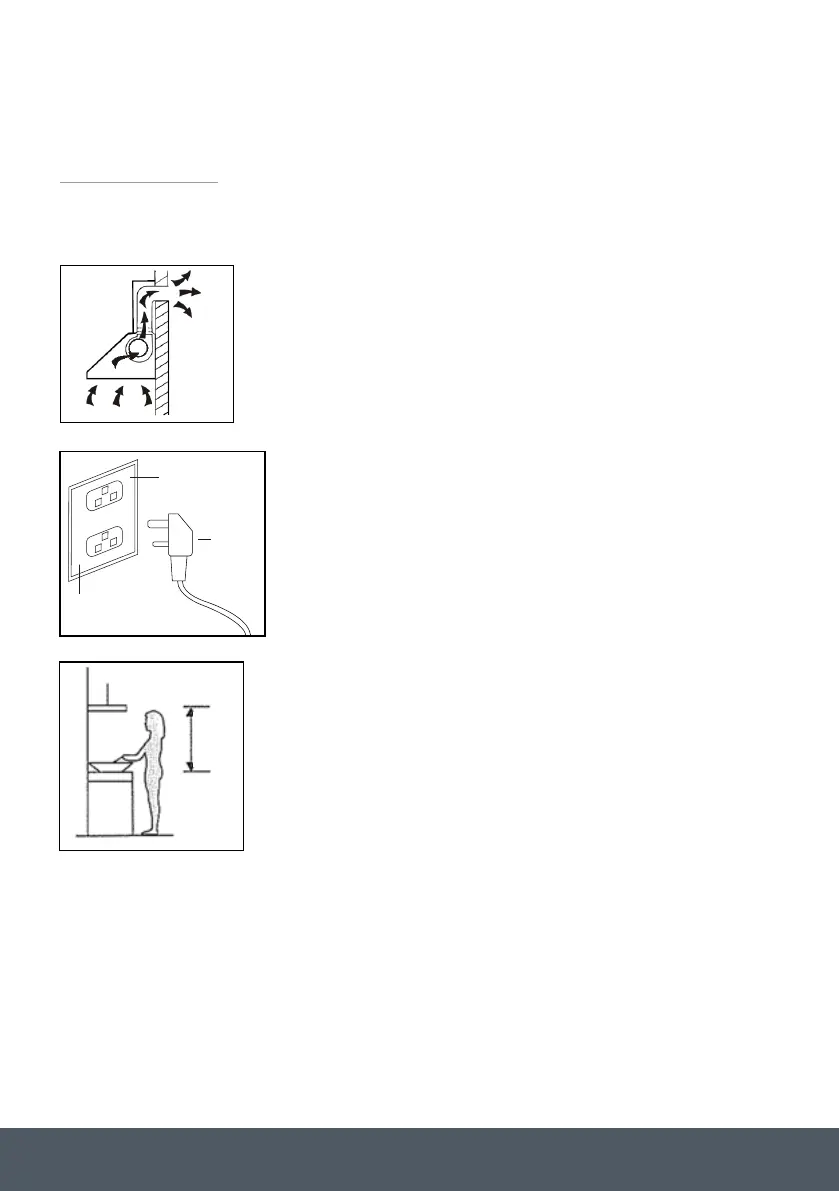

PREPARE FOR THE INSTALLATION:
If you have an outlet to the outside, your cooker hood can be connected
as per the below picture by means of an extraction duct with an interior
diameter of 150mm.
Before installation, turn the unit off and unplug it from
the outlet.
The cooker hood should be placed at a minimum distance of
65~76cm above the hob. It is the manufacturer of the hob who
determines the clearance required and the clearance quoted by
the hob manufacturer must be followed. In the absence of any
instructions supplied with a gas hob the minimum distance between
the hob and the hood must be
at least 760mm.
The width of the extractor hood must correspond with at least the width of the hob fitted below.
When installed above a gas hob or range cooker, do not use all the gas burners simultaneously
for prolonged periods of time at the maximum setting (max. 15mins). There can be a risk of burns
if the housing or extractor surfaces become hot, and there is also a risk that the extractor can
become damaged due to excessive heat. If 3 or more burners are used simultaneously.
Never operate the gas hob without pans situated on the burners as the excess heat can damage
the extractor.
4
Earthed Outlet Box
Earthed Plug
Earthed Outlet
4
To Next Page
