Instruction manual TSCH601 & TSCH90112
Please keep this instruction manual for future reference
INSTALLATION TYPE ONE

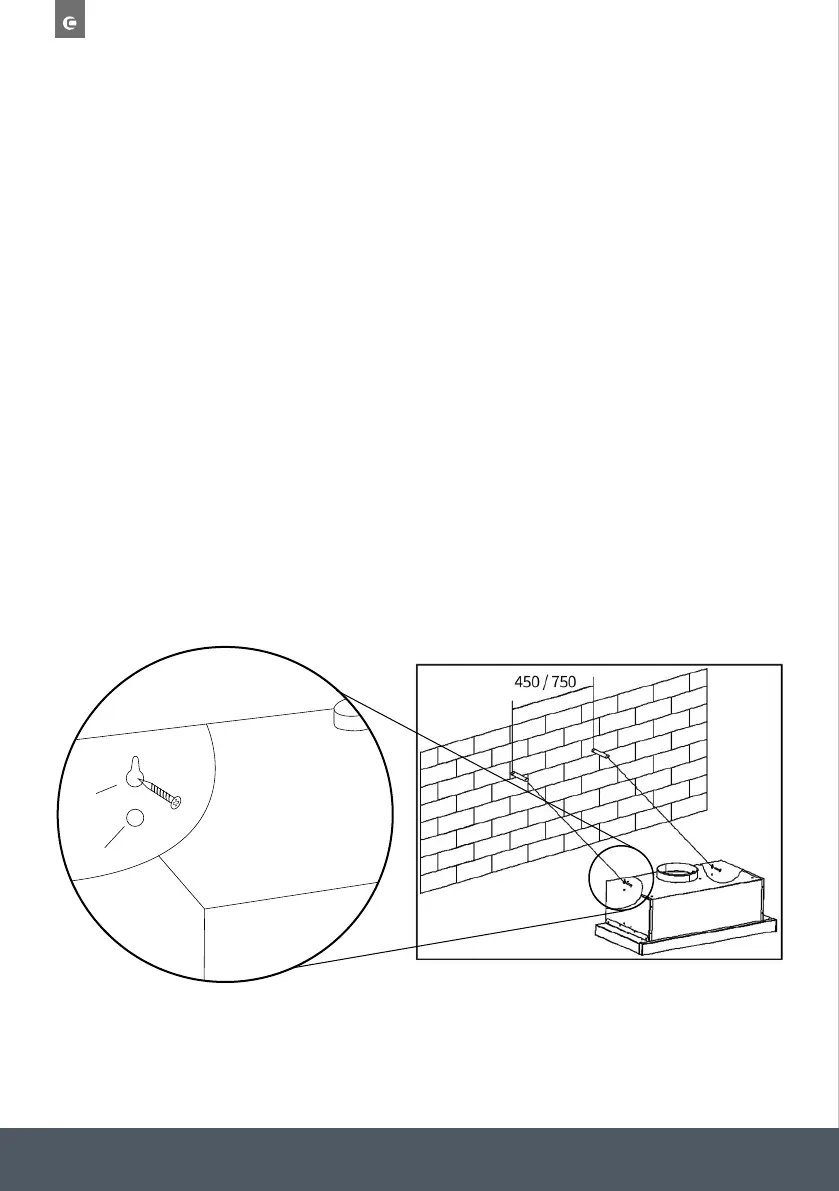

1. To install onto the wall, drill 2 holes of Ø8mm in a suitable place according with the centre
distance of hole in the back of the cooker hood.
2. Insert the wall plugs into the holes.
3. Insert the screws into the wall plugs and tighten. Put the cooker hood onto the
tightened screws.
4. Mark position for the safety screw holes onto the wall and remove the cooker hood.
5. Drill 2 holes of Ø8mm and insert wall plugs into holes.
6. Place the cooker hood onto the tightened screws (see a.).
7. Fix the cooker hood with the safety screws. The two holes are positioned on the back casing,
with diameter of 6mm (see b.)
8. Attach the one-way valve to the cooker hood.
