Version 15.03.2023 CAM(V100)/ (EF2L145/V20)+(100)/(V20) CI-RL4-NG4-HU
2.5. Analog power supply
If the communication between the CAN box and the vehicle’s CAN bus does not succeed (not
all vehicles are compatible), the analogue connection is required.

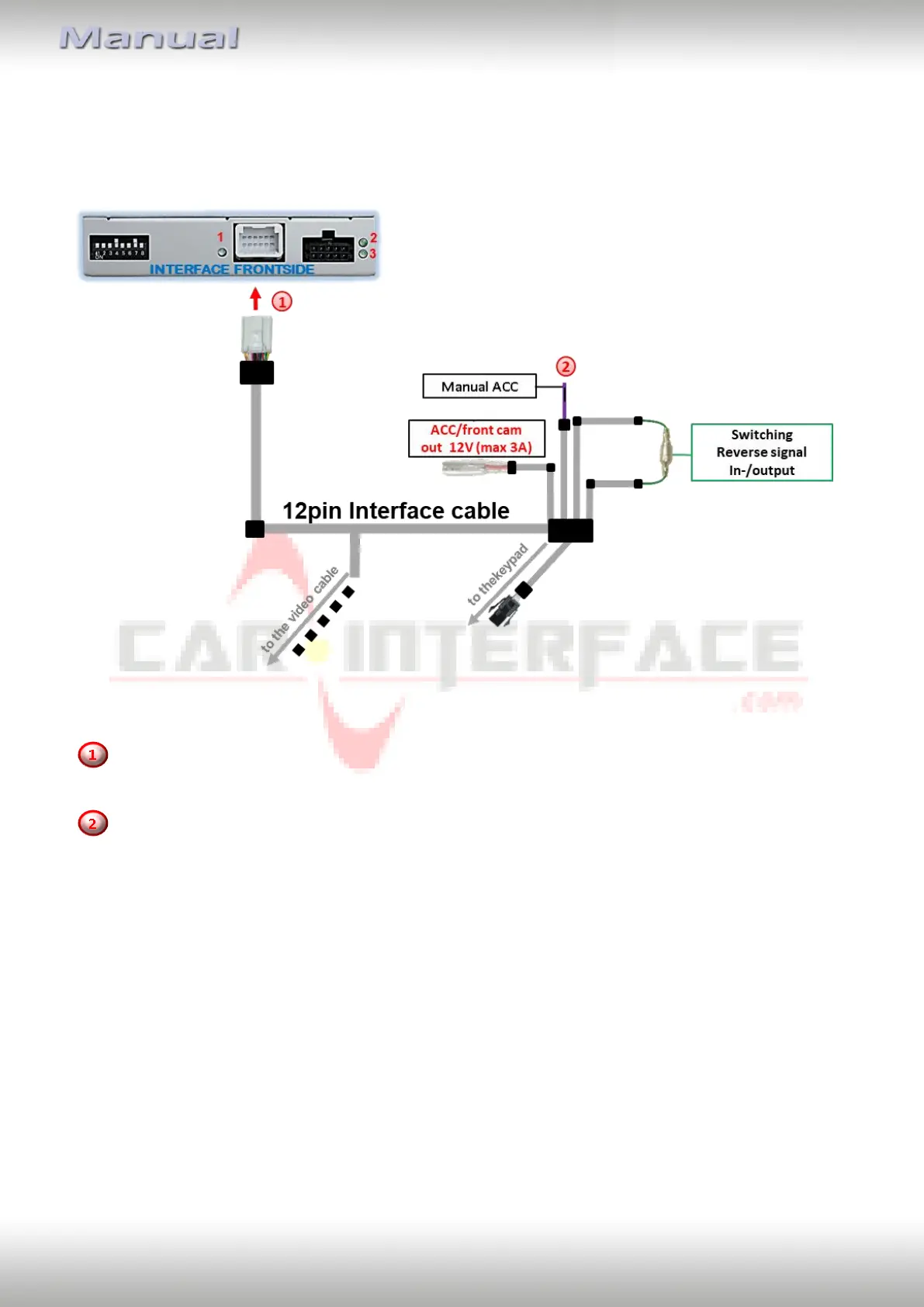

Connect the female 12pin connector of the 12pin interface cable to the male 12pin
connector of the video interface.
Connect the 12pin interface cable’s purple coloured wire Manual ACC to +12V Ignition power
or to +12V S-contact terminal 86s +12V (e.g. glove compartment illumination).
