Navigation Keys, Cont.

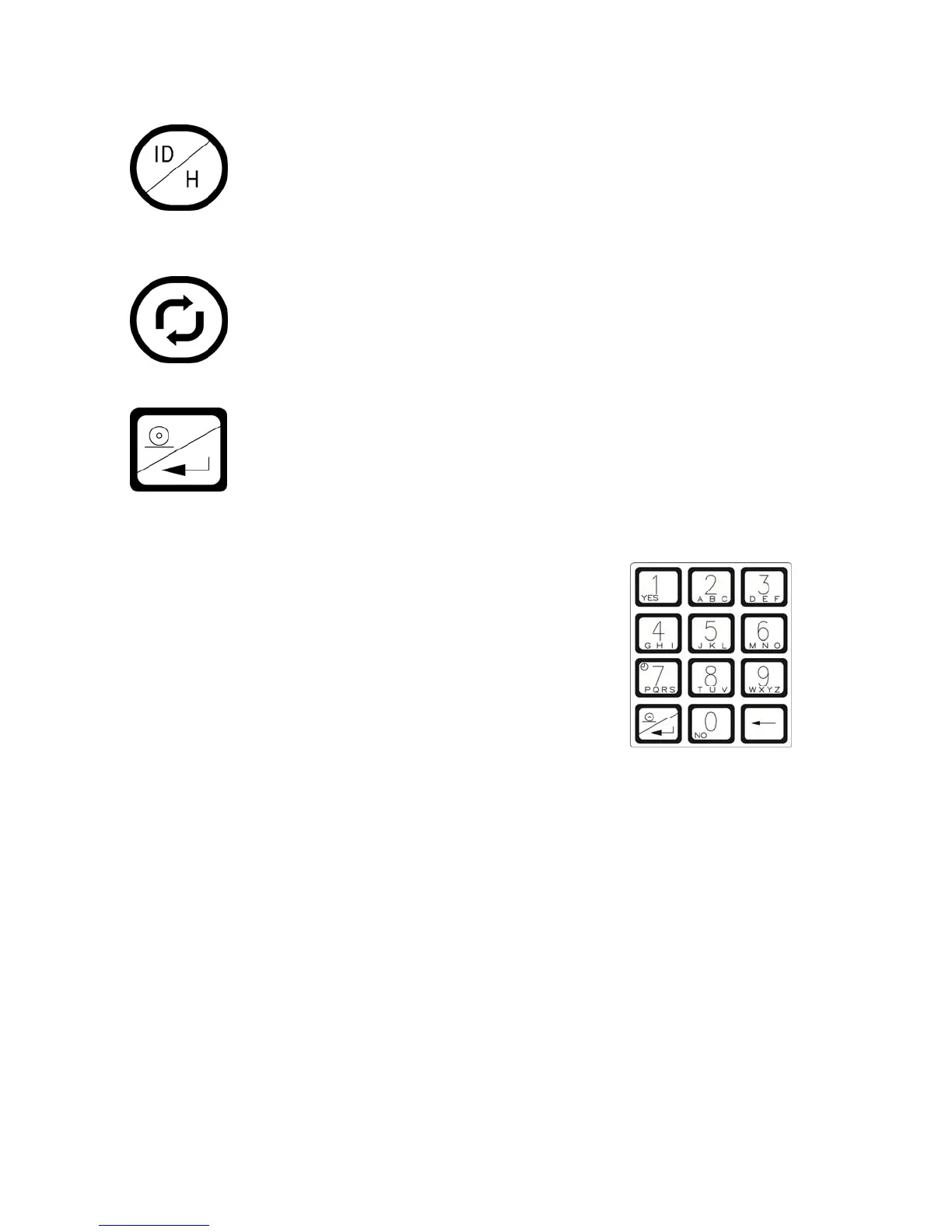

ID/HEIGHT – (Next Menu or Parameter)
If at the menu level, this will take you to the previous menu item in the list
below. If SCALE is currently displayed and the setup has been accessed
through the calibration switch, then this will return you to TIME SETTINGS. If
setup has been accessed through setup review, then pressing this when
SYSTEM is displayed will return you to TIME SETTINGS. If at the parameter
level the exact item this takes you to may depend on a [parameter condition].
UNITS – (Go up a level)
If at the parameter level, this returns you to the menu level. If at the menu
level, this returns you to normal operation
PRINT/ENTER – (Go into Menu or save Parameter)
If at the menu level, this will take you to the first parameter in the currently
displayed menu in the list below. If at the parameter level, this will store the
currently displayed value for that parameter and proceed to the next
parameter in the list below, which may depend on a [parameter condition].
Numeric Keys
The Numeric Keys are used to input values for the Calibration
Setup parameters. Some parameter prompts require only a yes or
no selection, while others require a numeric value to be entered.
NOTE: The 1 and 0 keys have dual functions. They are used to
enter numeric values as well as to select YES or NO to various
parameter prompts.
Calibration Setup Menu
SCALE
Scale Configuration. Proceed to the Scale Capacity parameter.
ZERO
Configure Zero functions. Proceed to the Zero Limit parameter.
FILTER
Analog to Digital Filtering. Proceed to the Filter Mode parameter.
CALIbRATION
Perform Calibration. Proceed to the Calibrate parameter.
GRAVITY
Gravity Constant Function. Proceed to the Enable Gravity
parameter.
LOCK
Lock/Release feature. Proceed to the Hold Mode parameter.
SYSTEM
Operational Selections. Proceed to the Language parameter.
SERIAL PORT
Serial I/O Configuration. Proceed to the RS232 Mode parameter.
USb PORT
USB Port Configuration. Proceed to the USB Mode parameter.
ETHERNET/WIFI
Ethernet/WiFi Configuration. (Displayed if option card is present).
Proceed to the Ethernet Mode parameter.
TIME SETTINGS
Time and Date Configuration. Proceed to the Year parameter.
