easy way ARIA +030220841 - rel. 1.0 - 26.10.2007
UP/DOWN buttons (4-6)
Used to increase/decrease of the values for the selected function or
parameters.
Pressing the buttons in the normal display (without any function selected)
increases/decreases the set point, temperature or humidity, based on the
value displayed in the main  eld ((1) Fig. 4.b).
The value displayed is selected using parameter loc1.
par. description min max def UOM type index R/W notes
loc 1
Main display
1 temperature set point
2 temperature
3 humidity set point
4 humidity
1 4 2 - I 19 R/W -
Multifunction button (5)
Used to manage the display/setting of the  ve functions shown in the
following list:
value function notes
0 No function
1 Set temperature Modi able
2 Temperature Display only
3 Set humidity Modi able
4 Humidity Display only
5 Clock Display only
6 Sleep Modi able
7 °C/°F Modi able
Tab. 4.f
Pressing • once displays the con gured functions, in sequence.
Each time the UP/DOWN button is pressed increases/decreases the •
function selected (where modi able)
To exit the selected function:
By time, 5 seconds after the last button is pressed•
manually by pressing•
The functions that can be associated are con gured using parameters loc
7, loc 8, loc 13, loc 14, loc 15.
par. description min max def mod.
T&H
def mod.
T
UOM type index R/W notes
loc 7 Field displayed when pressing multifunction once 0 7 4 6 - I 21 R/W -
loc 8 Field displayed when pressing multifunction the second time 0 7 3 7 - I 22 R/W -
loc 13 Field displayed when pressing multifunction the third time 0 7 6 0 - I 24 R/W *
loc 14 Field displayed when pressing multifunction the fourth time 0 7 7 0 - I 25 R/W *
loc 15 Field displayed when pressing multifunction the  fth time 0 7 0 0 - I 26 R/W *
* = password access
Tab. 4.g
Note:
the humidity value is displayed on the temperature-only model as •
“---“.
the humidity set point can also be displayed/set on the temperature-•
only model.

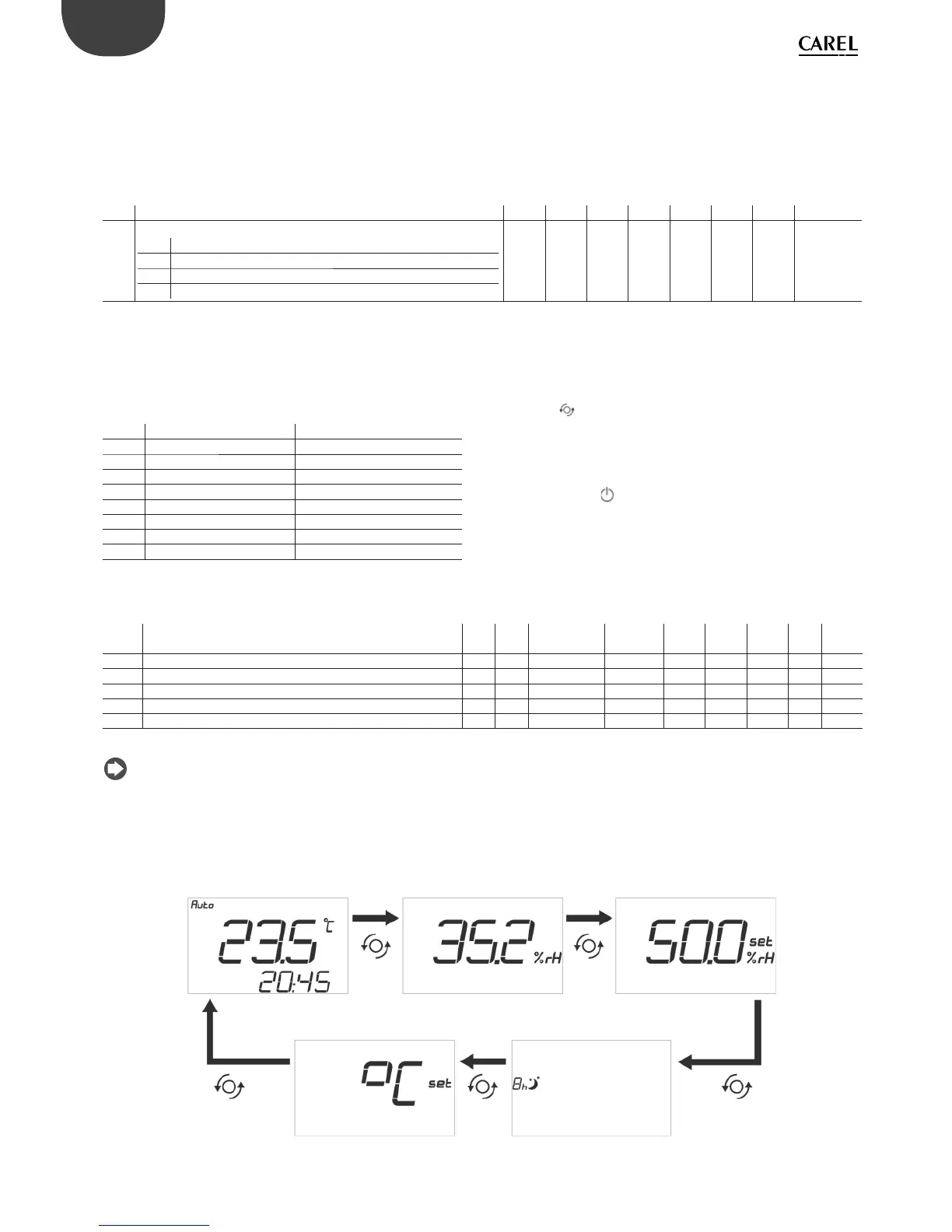

Example: with the default value on the temperature plus humidity
model.
Fig. 4.c.g
