FCM electronic regulator - Preliminary version Cod. +302235300 - Rel. 2.0 del 30/11/98
35

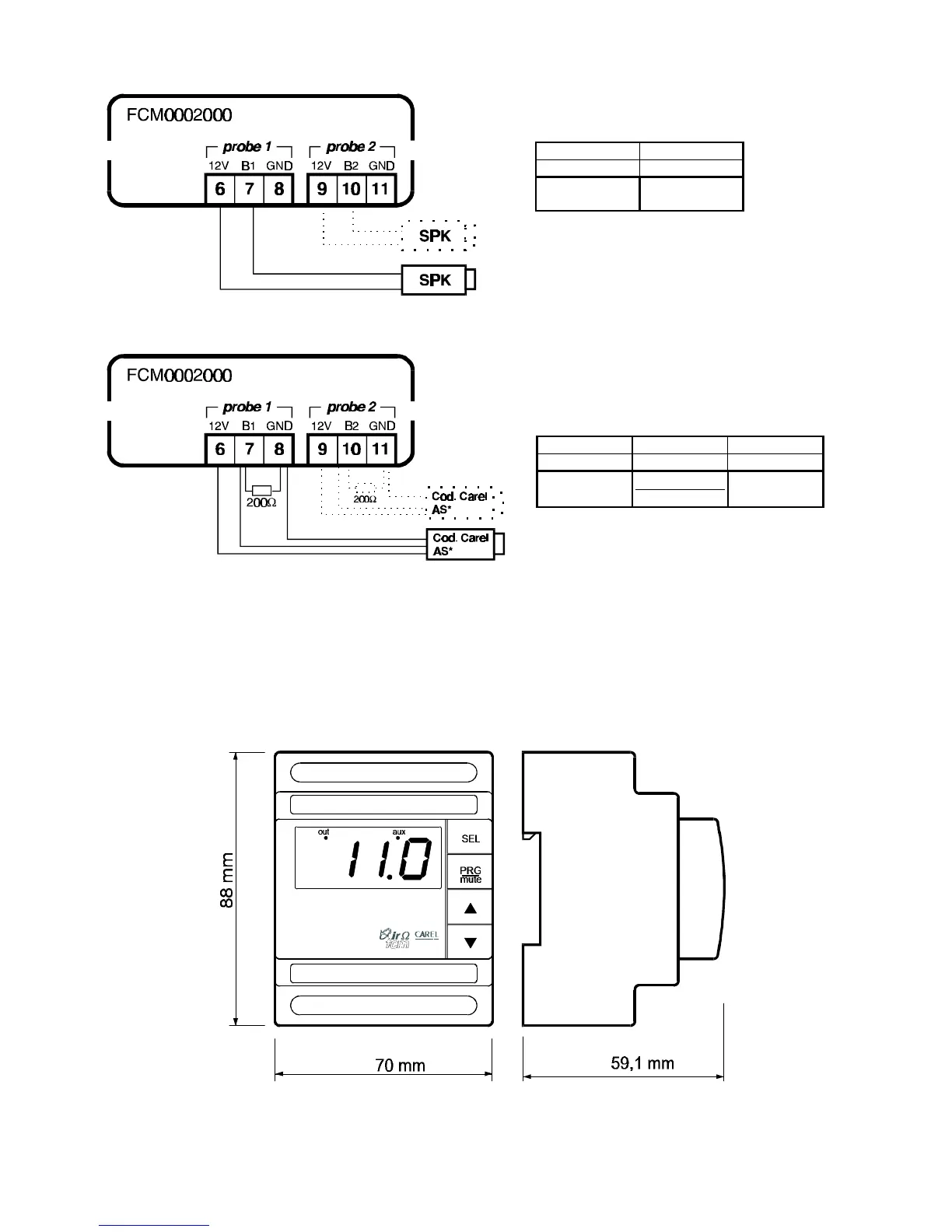

SPK-type 0÷20mA o 4÷20mA SPK probes (Carel pressure probes)
0÷20mA or 4÷20mA AS* probes (Carel temperature/humidity active probes)
Note: using a probe, it is possible to inhibit the R200 Ω resistance connection, if the 7-B1 and 10-B2 terminals are bridged.
13 Dimensions
Carel reserves the right to modify the features of its products without prior notice.
6 7
9 10
+
BROWN
OUT
WHITE
9 10 11
6 7 8
+ (G) OUT H
OUT T
M
