Carel pCO2 Series

Standard air-conditioning units
Carel Cod. +030221421 – Rel. 1.2 – April, 11, 2003
15
5.3 ANALOGUE OUTPUTS
ED CW
N. pCO1 – pCO2 SMALL pCO1 – pCO2 MEDIUM pCO1 – pCO2 SMALL pCO1 – pCO2 MEDIUM
AO 1 Outlet fan / Recovery valve Outlet fan / Recovery valve Cold valve / single Cold valve / single
AO 2 Warm valve Warm valve /
Humidification
Warm valve / Recovery valve Warm valve / Recovery valve /
Humidification
AO 3 Condensing fan 1 Condensing fan 1 --- ---
AO 4 Condensing fan 2 Condensing fan 2 Outlet fan Outlet fan

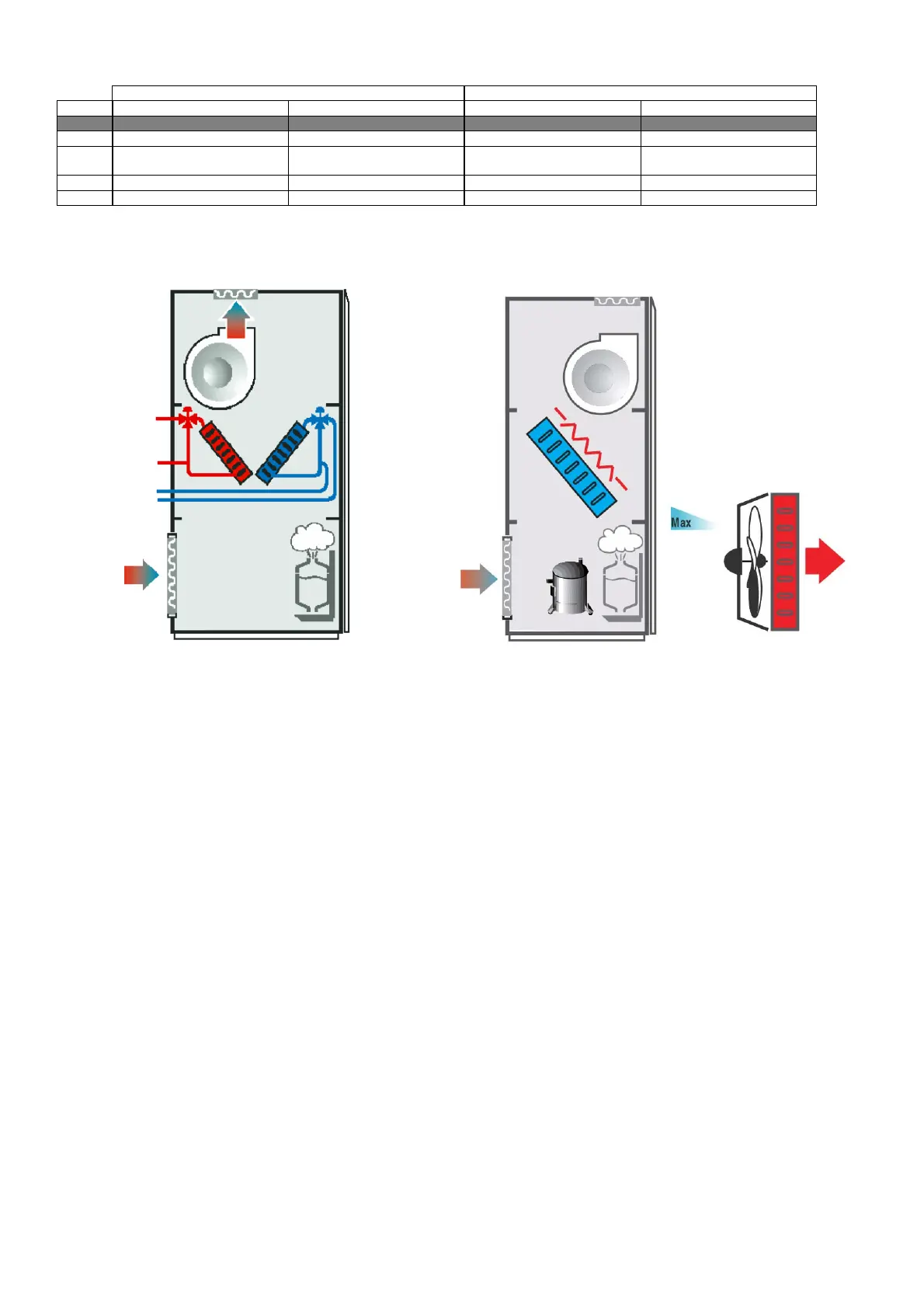

5.5 CLOSE CONTR. UNIT WITH COILS CLOSE CONTR. UNIT WITH DIRECT EXPANS. COIL
