PadScan HD 2
Caresono Technology Co., Ltd 12
● Weight：about 500g
● Power supply：Battery DC7.4V±0.5V
● Battery time for scanning：>3.5 hours
● Battery stand by time：>8 hours
● Type of Protection Against Electric Shock： Class II for approved adapter or internally
powered
● Degree of Protection Against Electric Shock: Type B applied part
● Degree of Protection Against the Ingress of Water: IPX1 for probe
● Mode of operation: Continuous
● Applied part: probe
●Battery Charger: Model: HXY-084V1500A，input: 100-240Va.c., 50/60Hz, 0.5A Max. Output:
8.4Vd.c. 1.2A. It is considered as a part of ME equipment.

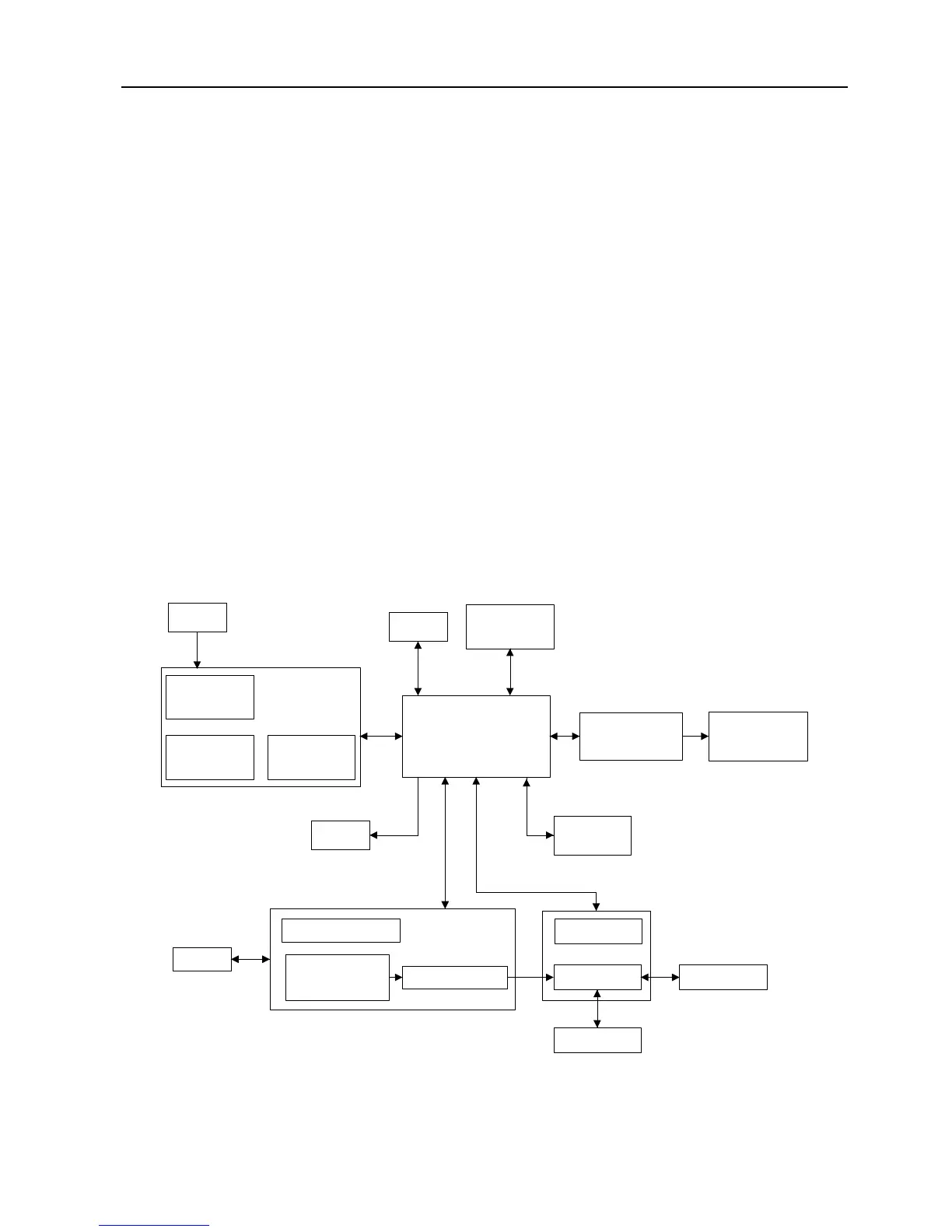

3.3 Block diagram
Figure 3-4 PadScan HD 2 electricity principle diagram
