2.4-2 Take Timed Counts Screen
On the Take Timed Counts Screen [Figure 7], a user can collect
information about how much radiation is detected over time.
In the lower corner is a countdown timer, which starts with the
duration of the timed count selected in 2.4-4; the default
duration is 10 seconds. Three seconds after the countdown is
complete, the user will be returned to the Counts Screen in 2.4-1.
The user can exit from the Take Timed Counts Screen by pressing
the “Exit” button. If the user chooses to exit while a count is being
taken, counting is interrupted and no data are saved. If the user
exits after the count is completed but before the 3-second
automatic return to the Counts Screen, the data from
the current timed count are saved.
NOTE: ID information entered on the View Timed Counts
Screen will be displayed above the timed counts list.
2.4-3 View Timed Counts Screen
On the View Timed Counts Screen [Figure 8], a user can see
the results of any timed counts that have been taken, edit ID
information for the data and print the results.
Viewing Timed Counts:
Each time a user presses the Take Timed Counts button on the
Count Screen (described in 2.4-1), and the user does not interrupt
the collection of timed count data by pressing the Exit button
(described in 2.4-2), data are retained about the amount of
radiation collected during that timed count. Data about timed
counts are retained on the View Timed Counts Screen until the
system is shut down, or until the user presses the “Clear”
button in the lower left corner, and confirms the choice
in the dialog box that appears.
Arranging Timed Count Fields:
There are eight fields on the View Timed Counts Screen which the
user can rearrange by touching the field name and sliding to the
left or right: Sample Number Location, Type, Timestamp, Duration,
Total Counts, Counts per Second, and Percent Primary.

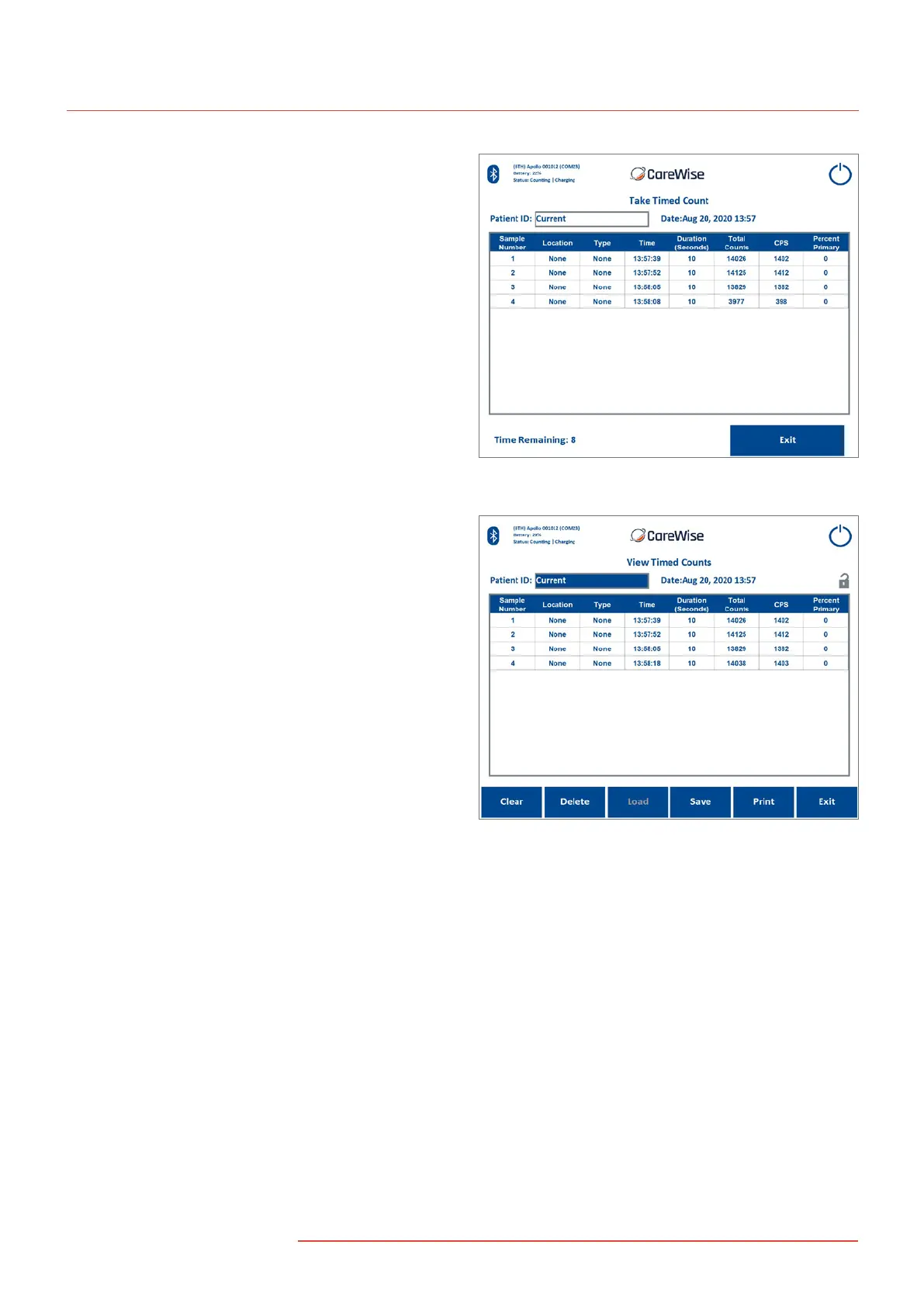

Figure 7 – Take Timed Counts Screen
Figure 8 – View Timed Counts Screen
10
|
