Carimali DIVA COF - Actuator 3 Testing; Actuator 4 Testing; Milk Pump Testing

LB.05099.02 Pag. 32 18/10/16

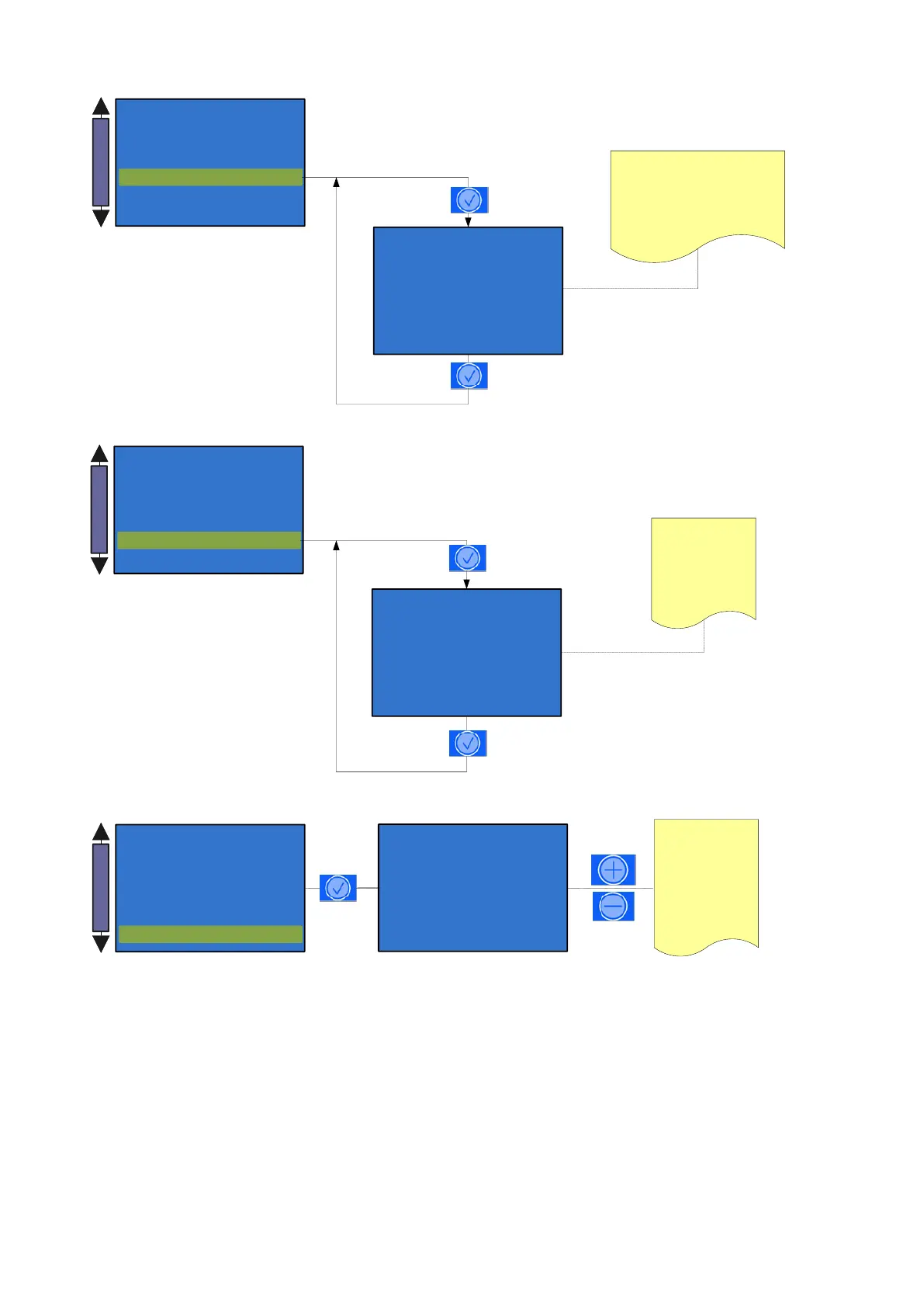

Actuators 3
PRESS A DOSE KEYS BETWEEN B1
TO B7 TO ACTIVATE THE ACTUATOR
THAT YOU WISH TO CHECK.
PRESS THE SAME DOSE KEY TO
STOP THE ACTIVATED ACTUATOR
FROM WORKING.
Test actuators
- Actuators 1
- Actuators 2
- Actuators 4
- Milk pump
Actuators 3
Test actuators
B1¹ Hot water
B2¹ Mixer tea S.V.
B4¹ Aux S.V.
Actuators 4
Test actuators
- Actuators 1
- Actuators 2
- Actuators 3
- Milk pump
Actuators 4
Test actuators
B1¹ Steam milker S.V.
B2¹ Air milker S.V.
B4¹ Rinse milker S.V.
B6¹ Steam nozzle S.V. xx °C
B7¹ Nozzle air S.V.
Press a dose keys
between B1 to B7 to
activate the actuator
that you wish to chek.
Press the same dose
key to stop it working.
XX: indicate the value
Keep pressed the + key
to increase the milk
pump speed.
Keep pressed the – key
to decrease the milk
pump speed.
Press the B1 to change
the milk pump spin
direction
Milk pump
Test actuators
- Actuators 1
- Actuators 2
- Actuators 3
- Actuators 3
Milk pump
Test actuators
Milk pump
X%
Charge
T1 changedirection
