3. Prepare burner (continued)
Perform checkout procedures
Verify before starting burner:
Should overheating or an emergency occur, immediately:
• Shut off oil supply line valve.
• Under some circumstances power should remain on for
water pumps or blowers. Determine proper response before
attempting start-up.
• If burner fails ignition on several attempts, use burner
blower to purge appliance chamber before restart.
Checklist
❏ Burner/appliance installed per appliance instruction manual?
❏ Burner nozzle verified per appliance manufacturer’s instructions,
Carlin OEM Spec Guide or Table 1, page 3?
❏ Burner/appliance installed per all applicable codes?
❏ Installation site has adequate combustion/ventilation air openings
and vent system?
❏ Fuel supply line in good condition and sized/designed cor-
rectly?
❏ Oil tank has oil and oil line valves are open.
❏ Wiring installed per burner manual and appliance instructions?
❏ Burner, appliance and all components inspected and in good
condition?

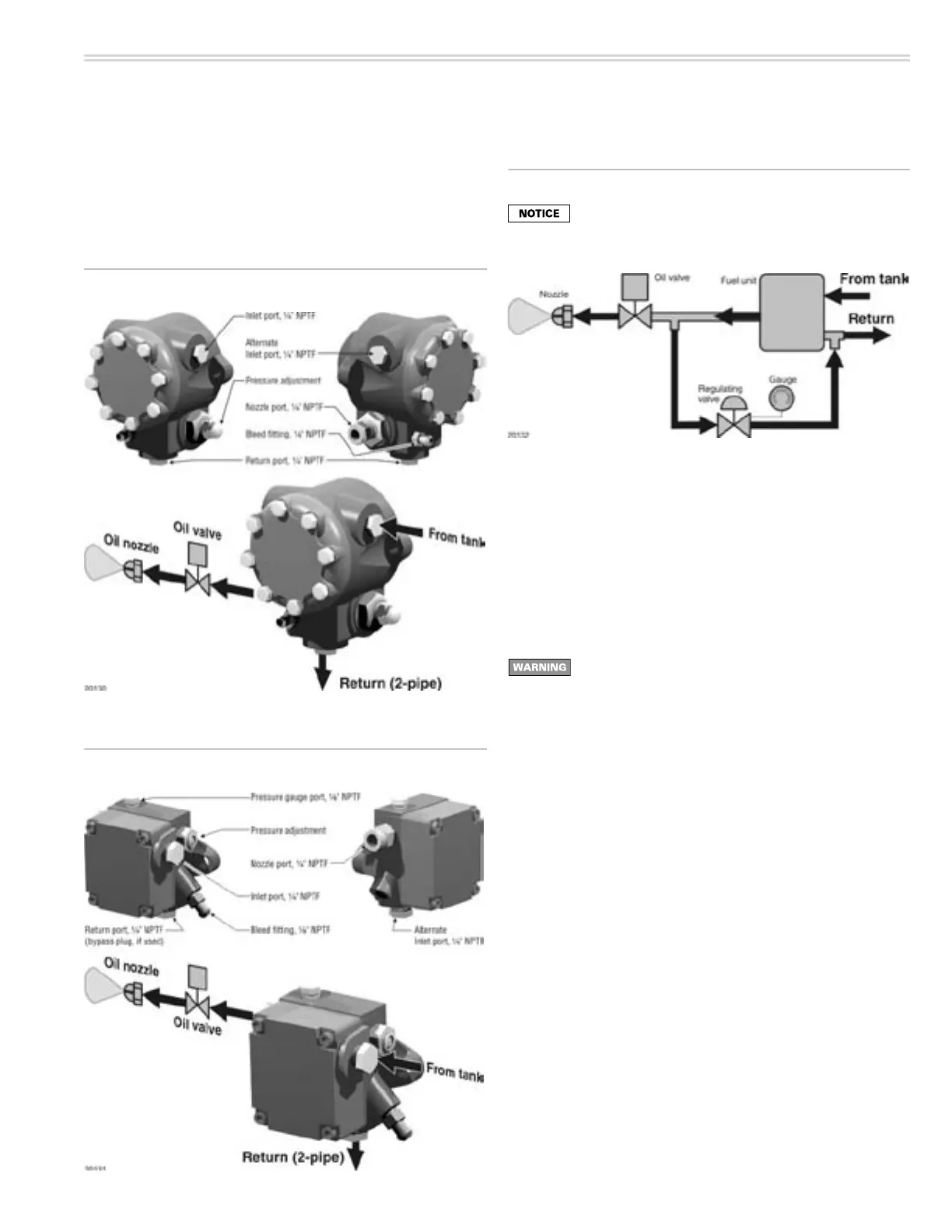

Oil flow schematics / fuel unit connections
• Figures 16, 17 and 18 show oil flow for Carlin 201 and 301 burners and
show port functions for Suntec Model A, B, J and H pumps.
• Figure 18 applies only for optional NYC-DAR pressure regulation kits.
Figure 16 201/301 burner with Suntec Model J or H fuel unit
Figure 17 201/301 burner with Suntec Model A or B fuel unit
Figure 18 201/301 burner with NYC-DAR pressure regulation kit
Obtain pressure regulator kits for New York City Department
of Air Resources. Kits must be set for the proper nozzle pres-
sure.
