EN

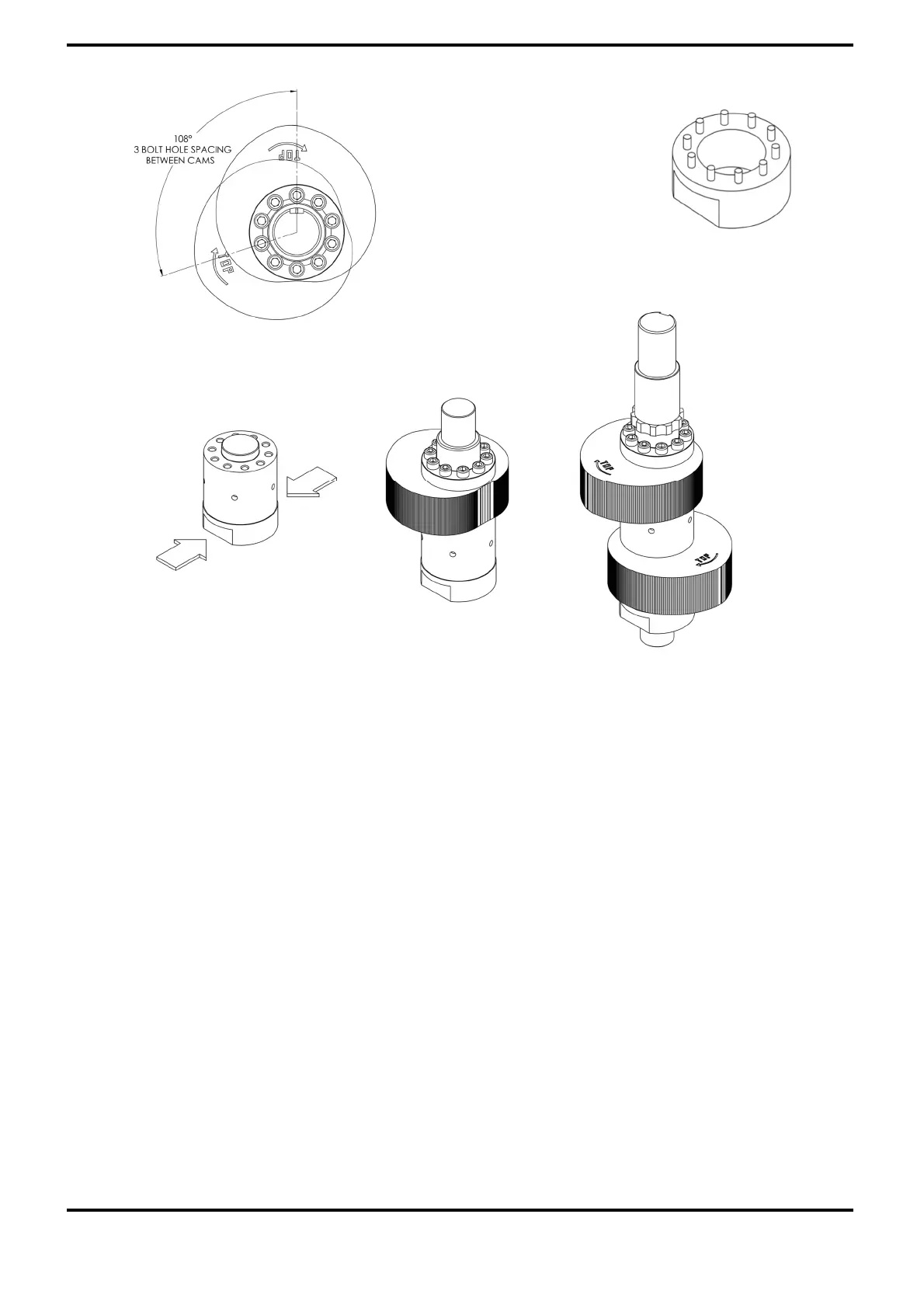

CAM radial pitch
offset
1. Hold assembly tool (502512) in a vice (flats provided) and install middle shaft.
2. Place CAM onto middle shaft ( with 'Top' engraving facing down).
3. Place the base shaft on top of the CAM, align the holes and screw in the M10 x 100 cap head
screws using Loctite 243 and cross-tighten evenly to 65Nm.
4. Invert shaft assembly on the tool to complete assembly.
5, Place the second CAM (with 'TOP' engraving facing up), ensure the CAM is 3 holes radially out of
pitch from the first CAM.
6. Fit top shaft, align holes and screw M10 x 100 cap head screws in using loctite 243 and cross-
tighten evenly to 65Nm.
Assembly tool
32
77-3330 R1.3 16/36 www.carlisleft.com
