COOLING FANS
Cylinder head cooling fans are required in any applications
where discharge gas temperature exceeds 250°F (121°C). Appli-
cations where the compressor is located in an airstream with a
consistent velocity of 8 to 10 fps (~3 m/s) do not require cylinder
head fans.
MOUNTING
The 06CC compressors may use either rigid mounts (see
Fig. 5 and 6) or spring mounts. Variable speed applications using
spring mounts should be carefully evaluated to ensure that there
are no resonances across the entire speed range. Refer to Table 6
for proper torque values.

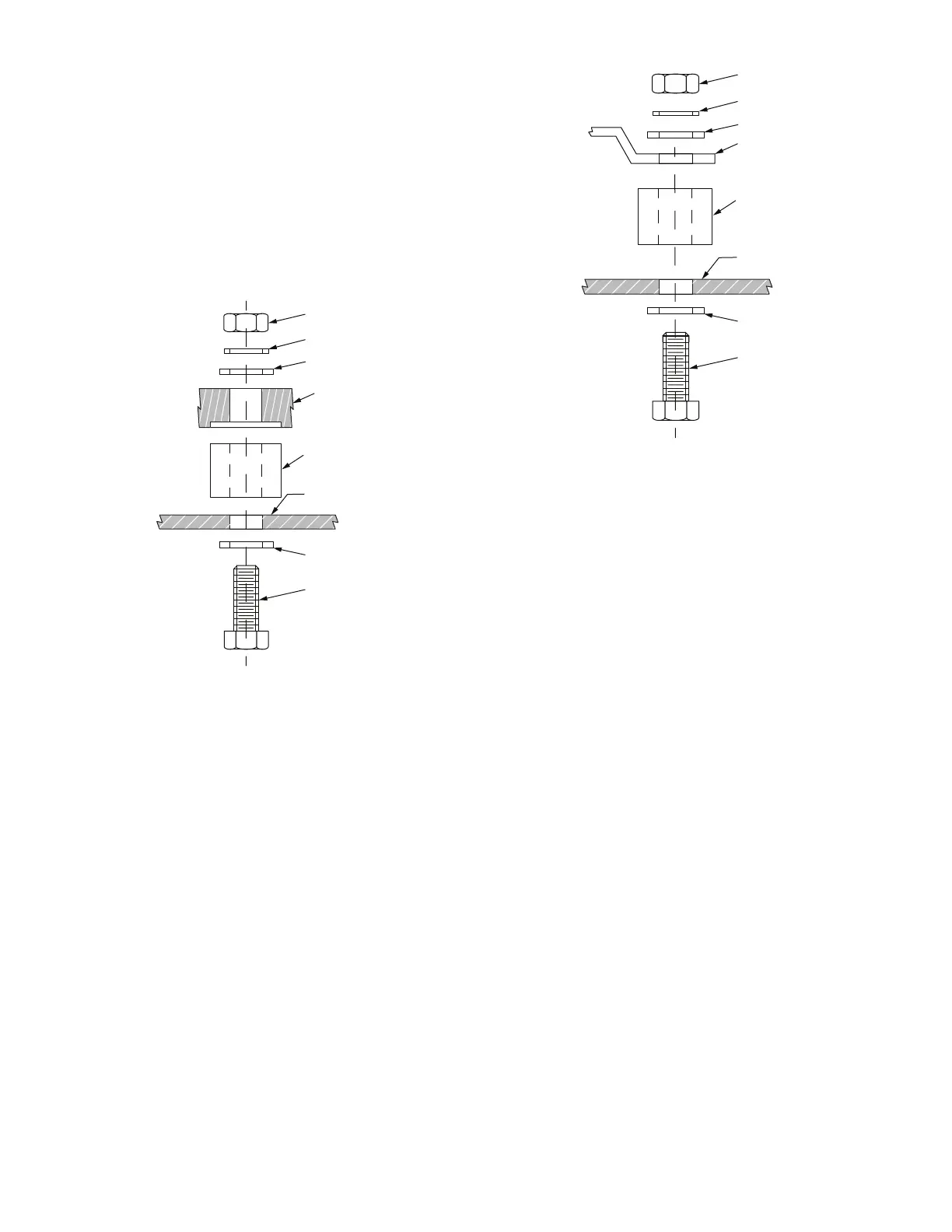

Fig. 5 — Rigid Mounting (Cast Foot with Spacer)
Fig. 6 — Rigid Mounting (Plate Foot with Spacer)
Nut
Lock Washer
Flat Washer
Compressor
Mounting Foot
Flat Washer
3/8-16 UNC Bolt
Grade 5 Min.
Mounting Surface
Spacer
Nut
Lock Washer
Flat Washer
Compressor
Mounting Foot
Flat Washer
3/8-16 UNC Bolt
Grade 5 Min.
Mounting Surface
Spacer
