Carlyle 06T 033 Series User Manual

C-Flange Motor NEMA A B C D E
Package HP RPM. Frame in. cm. in. cm. in. cm. in. cm. in. cm.
15 1750 254TC 8.25 20.96 5.00 12.70 27.29 69.32 .106 .28 .56 1.42
0TA0929 20 1750 256TC 10.00 25.40 5.00 12.70 27.29 69.32 .106 .28 .56 1.42
25 1750 284TC 9.50 24.13 5.50 13.97 27.48 69.80 .858 2.18 .56 1.42
30 1750 286TC 11.00 27.94 5.50 13.97 27.48 69.80 .858 2.18 .56 1.42
0TA0930 40 1750 324TC 10.50 26.67 6.25 15.88 28.86 73.30 1.86 4.72 .69 1.75
50 1750 326TC 12.00 30.48 6.25 15.88 28.86 73.30 1.86 4.72 .69 1.75
30 3500 286TSC 11.00 27.94 5.50 13.97 26.42 67.11 .858 2.18 .56 1.42
40 3500 324TSC 10.50 26.67 6.25 15.88 27.11 68.86 1.86 4.72 .69 1.75
0TA0931 50 3500 326TSC 12.00 30.48 6.25 15.88 27.11 68.86 1.86 4.72 .69 1.75
60 3500 364TSC 11.25 28.58 7.00 17.78 27.73 70.43 2.86 7.26 .69 1.75
75 3500 365TSC 12.25 31.12 7.00 17.78 27.73 70.43 2.86 7.26 .69 1.75
35

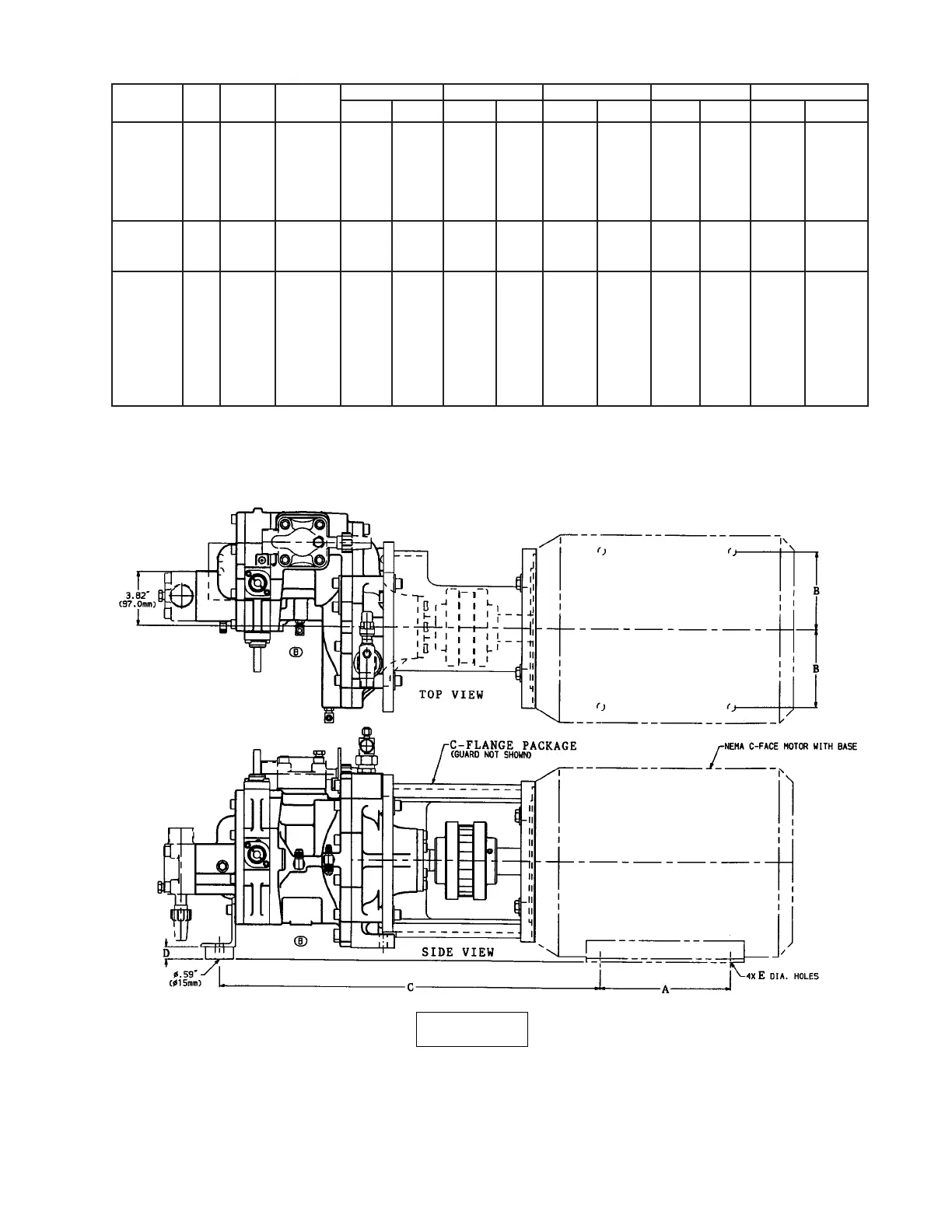

05T Dimensions
FOR REFERENCE ONLY
INCHES
[MILLIMETERS (mm)]
