1 - RECEIVING THE UNIT
1.1 - General checks

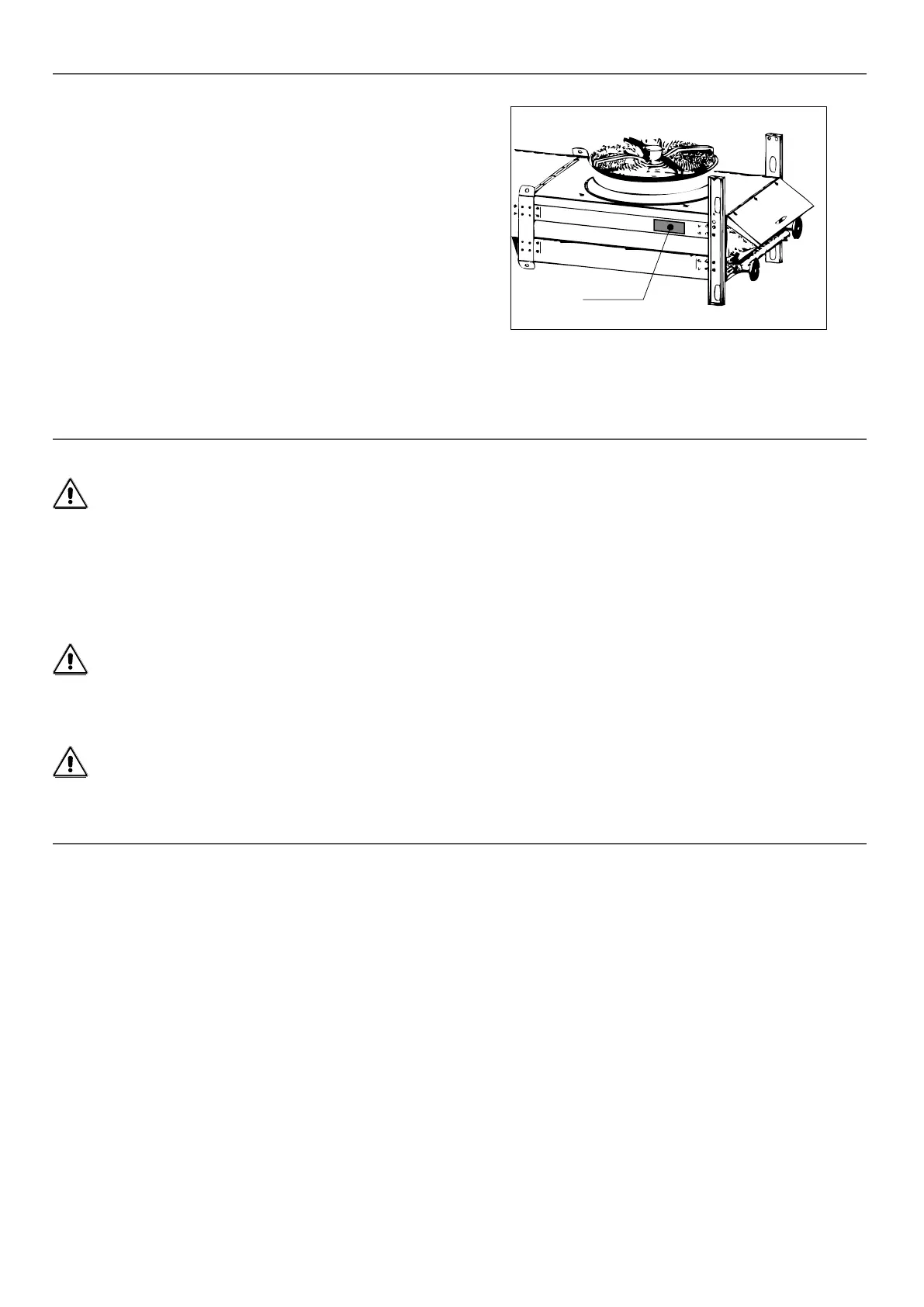

■ Each unit has a data plate bearing an identication number.
This number must be included in all correspondence. Ensure
that it is the correct unit by checking the purchase order.
■ After unpacking the unit, please inspect it for any damage.
■ If any items are missing or in case of damage, specify this on
the delivery slip and inform the carrier by registered letter within
3 days of delivery of the unit.

1.2 - Unloading
■ The recipient shall be responsible for unloading the equipment and providing the necessary handling equipment (see the section
entitled "LIFTING INSTRUCTIONS").
2 - SAFETY INSTRUCTIONS
■ Any operation must be carried out by qualied personnel using the appropriate Personal Protective Equipment (PPE).
■ Before any operation, read this guide carefully and keep it in a safe place. Safety information must be adhered to.
■ The units must not be run under operating conditions which are more restrictive than those it was designed for (pressure,
temperature, type and circulation of uids).
■ For units installed in European Community countries, ensure that the entire installation complies with the directives and legislation in force.
■ Respect the instructions for using slings (see the labels on the unit).
■ To prevent any risk of accident, prohibit public access by clearly marking the work area.
2.1 - In an emergency
■ Switch off the electrical supply.
■ The process should not be jeopardised if the emergency stop devices are activated.
■ Switch off the fans.
2.2 - The 4 main risks
■ Lifting or positioning = Accident
■ Contact with the piping = Burns
■ Opening the electrics box = Electrocution
■ Removing the grilles = Injury
3 - GENERAL INFORMATION
3.1 - Unit functions
■ Drycooler: Device in which a uid in liquid state is cooled by heat exchange with the ambient air, without direct contact between
the ambient air and the uid.
■ Condenser (or air-cooled condenser): Device in which a gas is condensed by heat exchange with the ambient air.
■ Misting option: System for cooling air by misting of water droplets under high pressure.
■ These devices must only be used for the purpose for which they are intended. In particular, it is formally prohibited to use any uid
other than that specied in the order documents.
3.2 - Standards
■ Every unit meets standards EN 60-204 and EN 14 276-1 as well as the following European directives:
- Machinery 2006/42 EC
- EMC 2014/30/EU
- PED 2014/68/EU
■ Technicians who install, commission, operate and service the unit must understand the instructions given in this manual and be
familiar with the specic technical characteristics of the installation site.
3.3 - Warranty
■ See general terms and conditions of sale.
■ Check the compatibility of the fluid with the equipment being used.
■ To find out the limits of use, refer to the name plate.
