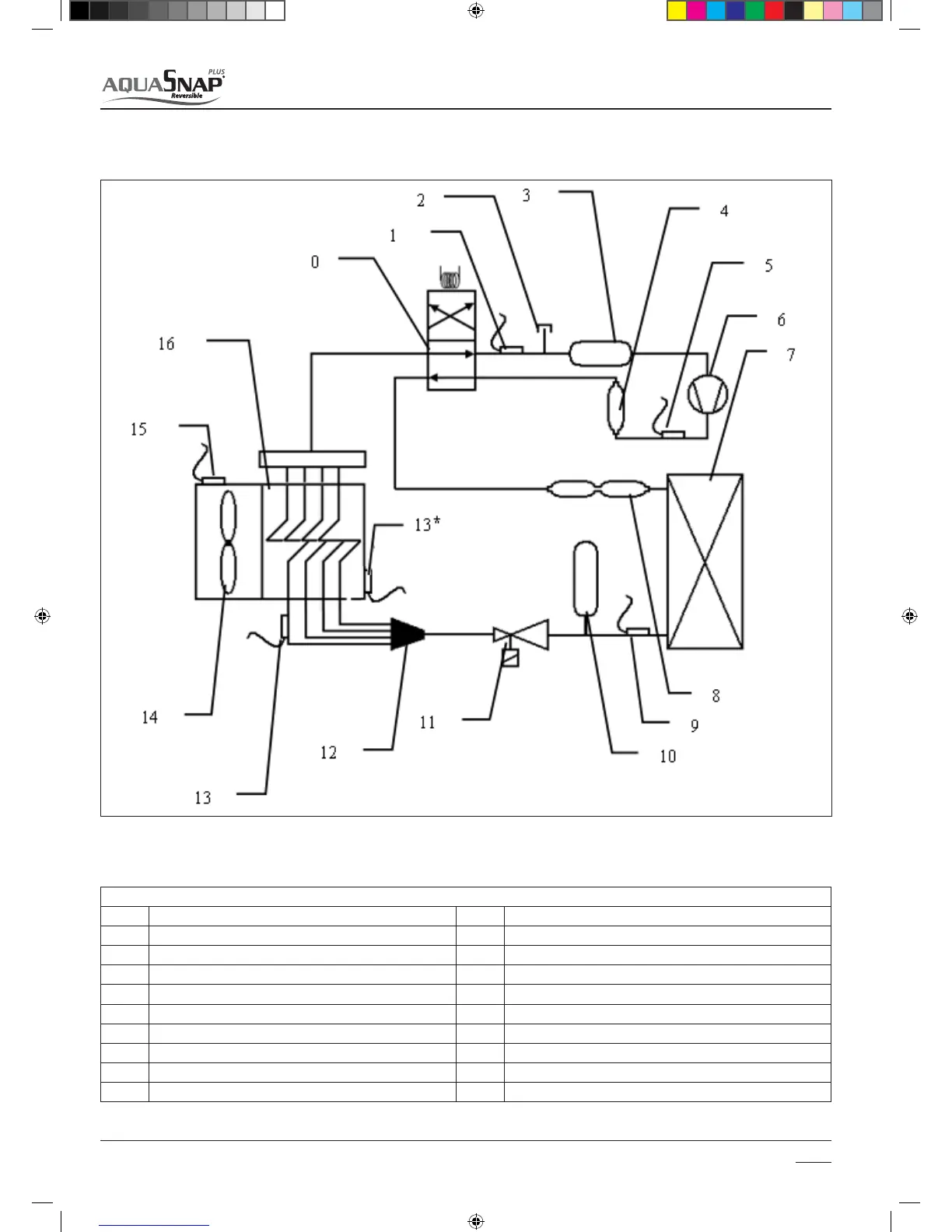

3.4 Refrigerant schematics
Refrigerant Circuit
N° Component N° Component
0 4-way valve 9 TR sensor
1 TS sensor 10 Liquid tank
2 Check joint 11 Pulse Motor Valve
3 Accumulator 12 Distributor
4 Muer 13 TE sensor
5 TD sensor 13* TL sensor (only 015)
6 DC twin rotary compressor 14 Propellor fan
7 BPHE 15 TO sensor
8 Muer 16 Heat exchanger
