Carrier 30AWH015HB User Manual

65
30AW
Control management
5
Outdoor fan control
Allocations of fan tap revolutions
FAN TAP W1 W2 W3W4W5W6W7W8W9WAWBWCWDWEWFWG
30AWH004 0 200 280 320 350 380 420 460 500 530 560 580 600 600 600 600
30AWH006 0 200 250 300 350 400 450 500 550 580 600 600 600 600 600 600
30AWH008 200 240 280 310 350 380 420 450 490 520 580 630 680 680 680 -
30AWH012
Higher fan
250 260 270 280 330 380 430 480 530 590 650 700 730 750 - -
30AWH012
Lower fan
OFF OFF 250 260 310 360 410 460 510 570 630 380 710 730 - -
30AWH015
Higher fan
200 240 240 260 320 380 480 540 640 740 780 780 780 780 - -
30AWH015
Lower fan
0 0 200 280 360 400 500 560 660 760 820 820 820 820 - -
5XPEJòFSFOUBMHPSJUINTGPSFBDITJ[FNBOBHFGBOTQFFEPOFGPSDPPMJOHBOEPOFGPSIFBUJOHPQFSBUJPOT
1) Cooling fan control
004-006 sizes.
The blowing air volume is controlled as follow:
When strong wind blows at outdoor side, the operation of heat pump continues with the fan motor stopped.1.
Whether the fan is locked or not detected, and the operation of heat pump stops and an alarm is displayed if the fan is 2.
locked.
According to each operation mode, by the conditions of outdoor temperature (TO) and compressor revolution, the 3.
speed of outdoor fan shown in the table is selected
Compressor speed
(Hz)
~ 13.8 ~ 31.7 32.3 ~ MAX
MIN MAX MIN MAX MIN MAX
TO
TO ≤ 38 °C W3 W4 WD WE WF WG
TO ≤ 28 °C W3 W4 WB WD WE WG
TO ≤ 15 °C W3 W4 W8 WB WA WD
TO ≤ 5,5 °C W2 W4 W3 W6 W5 W8
TO ≤ 0 °C W2 W2 W2 W3 W3 W5
TO ≤ 0 °C W1 W1 W1 W2 W2 W3
During
ECO
mode
TO ≤ 38 °C W3 W4 WC WD WD WE
TO ≤ 38 °C W3 W4 W3 W4 WC WD
When To is abnormal WE WG WE WG WE WG

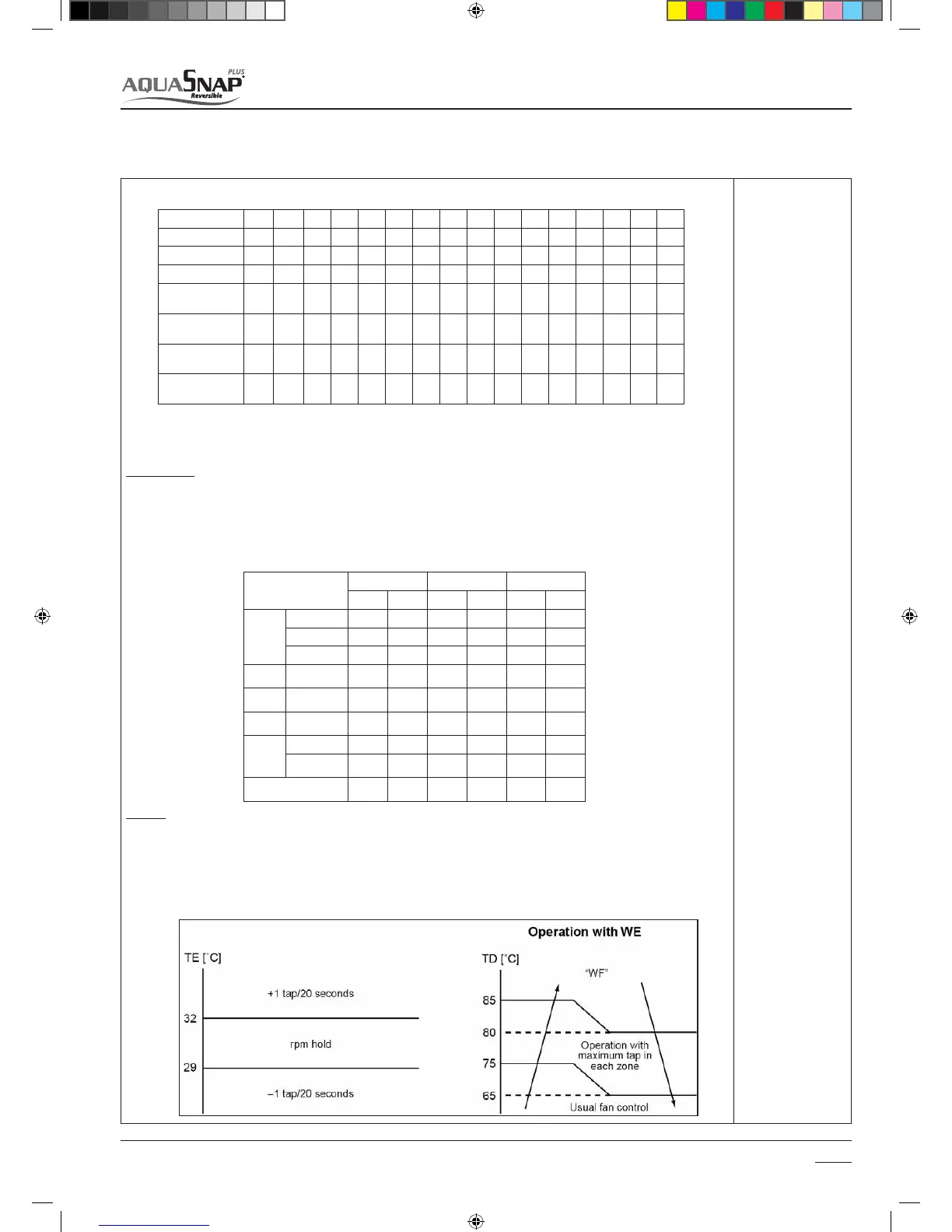

008 size
The outdoor fan is controlled by TE, TD, and TO sensors and also revolution frequency of the operation. The outdoor is 1.
controlled by every 1 tap of DC fan control (15 taps).
Only during 60 seconds after the operation has started, the fan is xed with the maximum fan tap which corresponds to 2.
the zone in the following table. After then the fan is controlled by TE sensor temperature.
Considering a case that TE sensor has come out of the holder, the fan is controlled so that revolution frequency of the 3.
fan increases regardless of TE if temperature of TD sensor has risen.
