30AW

Electrical connections

Load

TFC, floor or

radiators

Water collector

Check valve

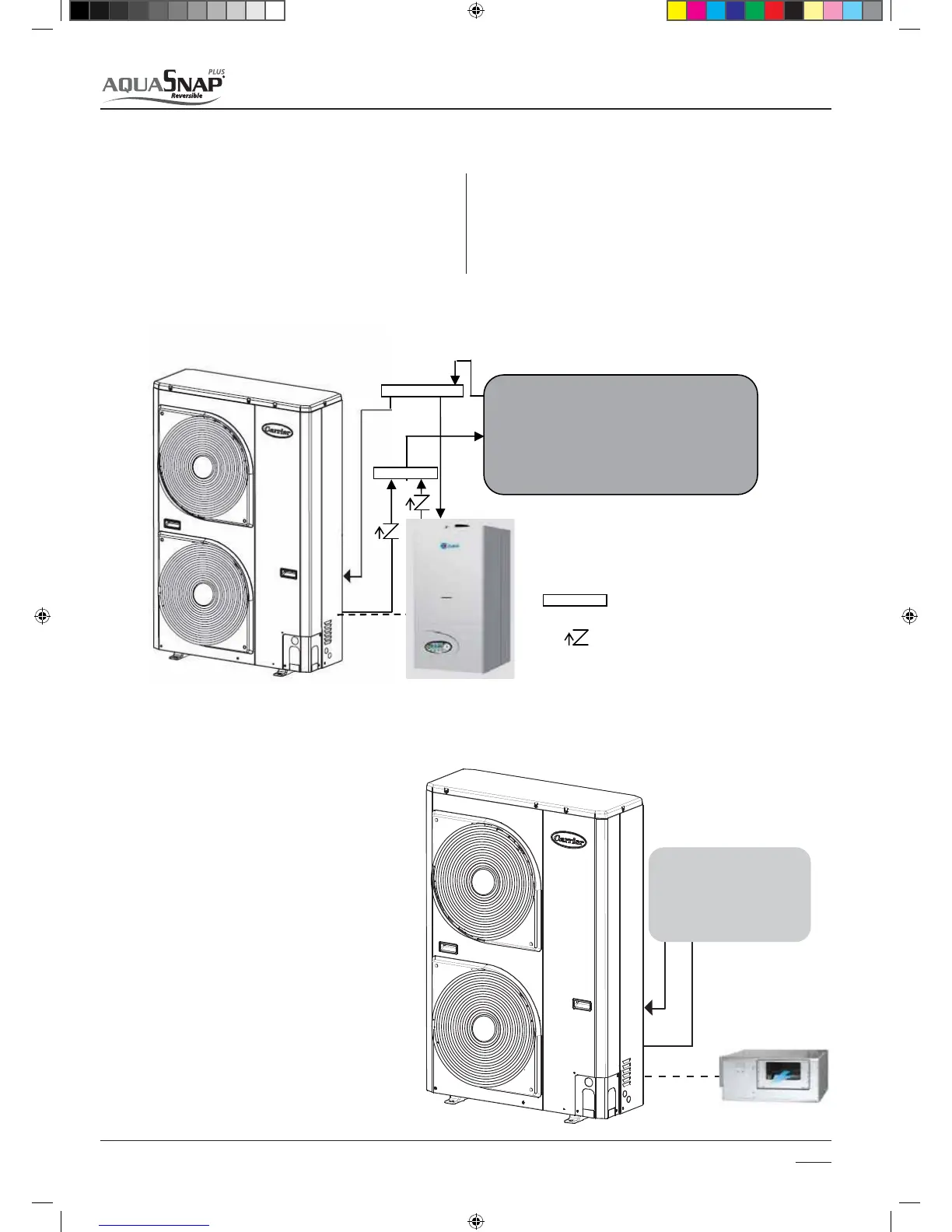

Examples of water circuitation:

4.1.2 External heat source

4.1.3 Dehumidier or a Humidier

An External Heat Source can be driven by Aquasnap Plus.

For this feature is necessary install 33AW-CS1 interface

Procedure to install an External Heat Source

Connect electrically EHS to N and 4 terminals to a relay that drives 1.

EHS

Congure parameter 106 through 33AW-CS1 interface (1 for EHS)2.

Congure outdoor temperature limits (parameter 148 and 150). 3.

A Dehumidier or a Humidier can be driven by Aquasnap

Plus using humidity sensor into 33AW-CS1 interface.

For this feature is necessary install 33AW-CS1 interface

Connect electrically a Dehumidier or a Humidier to 1.

N, 11 terminals to a relay that drives Dehumidier (NO

contact) or a Humidier (NC contact)

Congure parameter 108 through 33AW-CS1. (2 for 2.

dehumidier /Humid.)

Congure ambient humidity limit (parameter 107) 3.

where Dehumidier or a Humidier is activated (eg.

with par.107 = 65, Dehumidier is activated with

BNCJFOUIVNJEJUZ63

When the OAT is less than second parameter both the HP and the

EHS will be operative as per algorithm.

8IFOUIF0"5JTMFTTUIBOöSTUQBSBNFUFS"RVBTOBQJTTXJUDIFEJOPò

mode and EHS is activated (eg.with par.148 = -2 EHS is activated with

OAT < -2°C + hysteresis)

To change the delta T needed to activate the EHS change the 4.

parameter 152. (Factory default 5 °C).







SM_30AW.indd 24 14-03-2011 14:42:08
