NOTE: If the walls are higher than 2 m, contact the factory.
A Wall
B Units

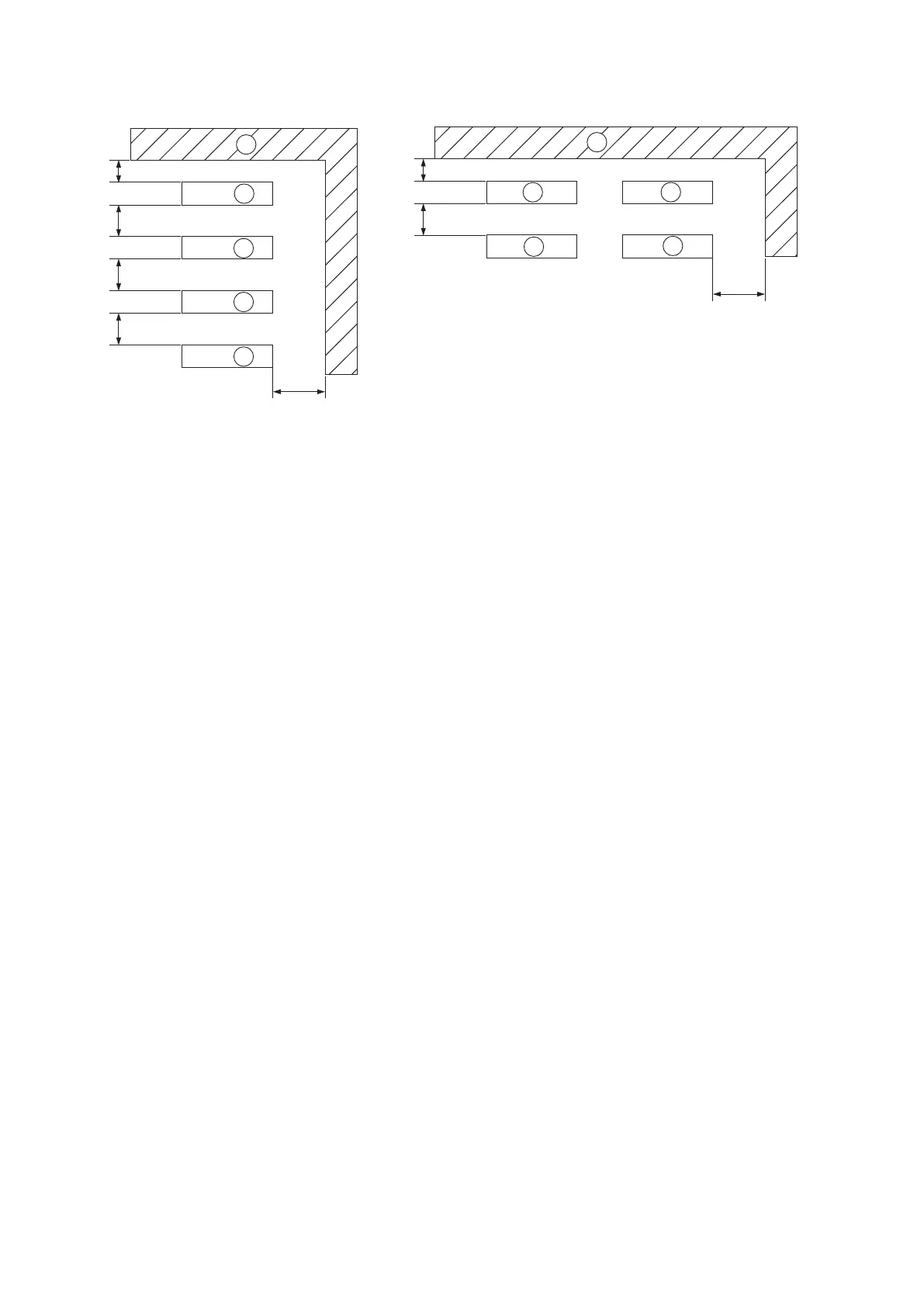

Unit must have clearances for air ow as follows:
Top: do not restrict in any way
In case of multiple chillers (up to four units), the respective clearance between them
should be increased from 1830 to 2000 mm for the side space requirement.
If necessary, add the required clearances for evaporator tube removal.
2000
1830
2000
1830
20002000
1525
1525
A
B
B
B
B
B
B
B
B
A
