Carrier 38HDR Product Data

12

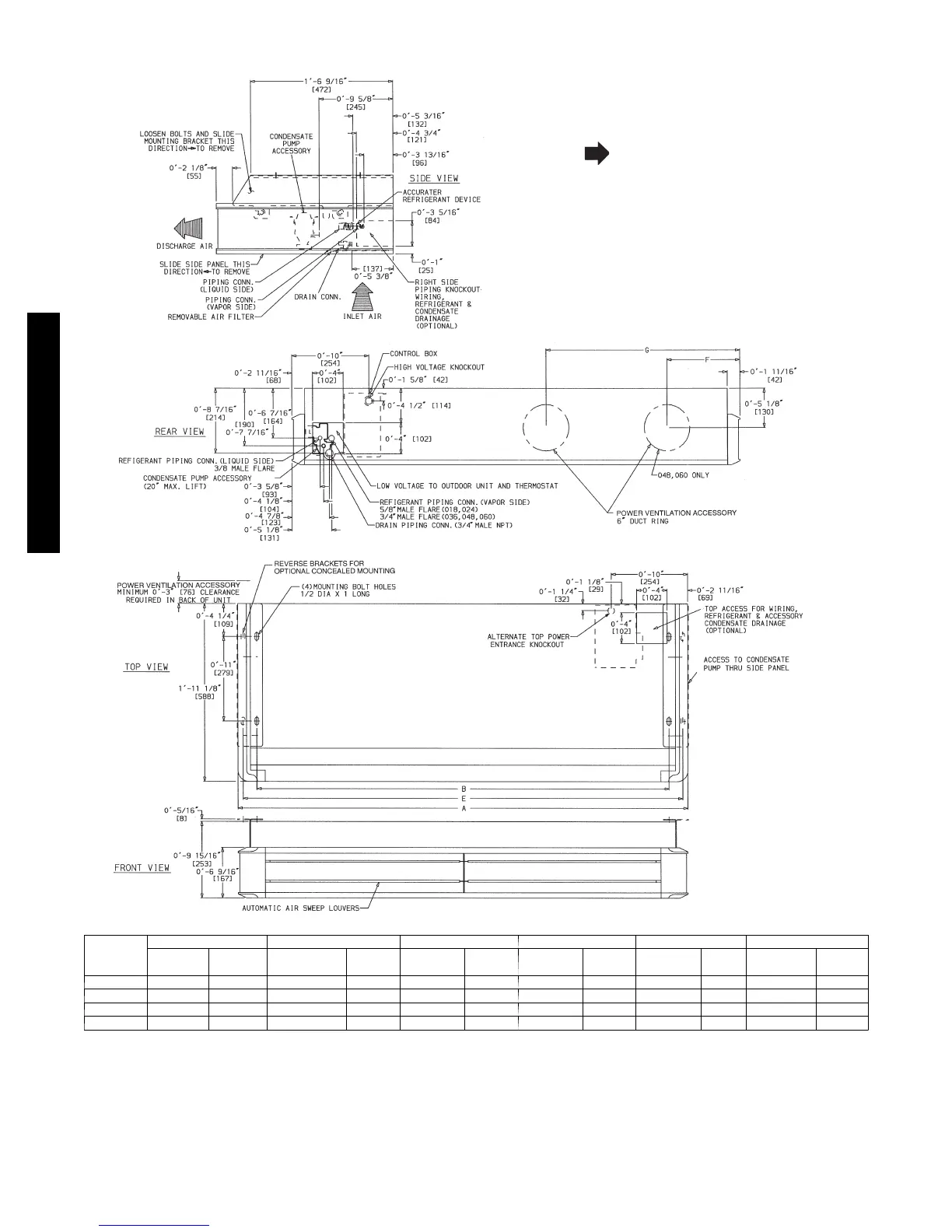

DIMENSIONS -- INDOOR UNIT
NOTES:
1. Dimensions in [ ] are in millimeters.
2. Direction of airflow.
3. Standard unit clearances are as follows:
• 0 in. on top and rear
• 3in.onleftside
• 12 in. on right side
• 36 in.on bottom
(When facing unit discharge.)
A08580
UNIT
SIZE
WEIGHT (lb) A B E F G
Cooling
Only
Heat
Pump
f t --- i n . mm f t --- i n . mm f t --- i n . mm f t --- i n . mm f t --- i n . mm
024 108 110 4 --- 2 15/16 1294 3 --- 1 0 1169 4 --- 15/8 1260 — — 1 --- 9 5/8 549
036 117 119 4 --- 1 0 13/16 1493 4 --- 5 7/8 1368 4 --- 9 1/2 1459 — — 2 --- 1 1/2 648
048 149 151 5 --- 1 1 9/16 1817 5 --- 6 5/8 1692 5 --- 1 0 1/4 1783 1 --- 9 7/8 555 3 --- 3 1/16 992
060 179 181 7 --- 8 2336 7 --- 3 2211 7 --- 6 5/8 2302 1 --- 1 1 5/8 601 4 --- 1 1 9/16 1512
Fig. 9 – 40QA Dimensions
40QAC/38HDR -- 40QAQ/38QR
R
