41
Local Access
Wall Mounted Equipment Toucht Interface
The Equipment Touch interface is a wall--mounted
interface used to connect to the RTU Open controller to
access the control information, read sensor values, and
maintenance. This is an accessory interface that does not
come with the RTU Open controller. Wire the Equipment
Touch interface to the RTU Open controller’s J13 local
access port. There are 2 password protected levels in the
display (User and Admin). See the Equipment Touch
Installation and Setup Guide for more informati on. See
Appendix A in the guide for naviga tion and screen
conte nt.
Field Assistant
Field Assistant is a computer program included with the
purchase of the Tech Tool Kit (USB-TKIT). This is a field
Tech Tool to set-up, service, or download application
software to the RTU Open controller and includes a USB
Link Cable. The li nk cable connect s a USB port to the J12
local access port. The Field Assistant’s menu structure is
similar and functions the same as i--Vu
R
controller. See
Fig. 71.
RTU Open Controller Troubleshooting —
Communication LEDs The LEDs indicate if the
controller is speaki ng to the devices on the network. The
LEDs should reflect communication traffic based on the
baud rate set. The higher the baud rate the more solid the
LEDs will appear. See Table 9.
Connect to
computer’s
USB port
Connect to
the Local
Access port
USB Link Kit
RTU Open Controller
Access
Port
J12
P1 P1
P5 P5
LOCAL
ACCESS
PORT
GND
GND
*Therm
mA
*Therm
mA
UI-10
UI-11
SW3
on
COMM
OPTION
CR2032
+
-
SW1 SW2
MSB LSB
TXRX
+12 DVC
Rnet-
Rnet+
GND
RNET
J12
J13
J15
J20
C14131

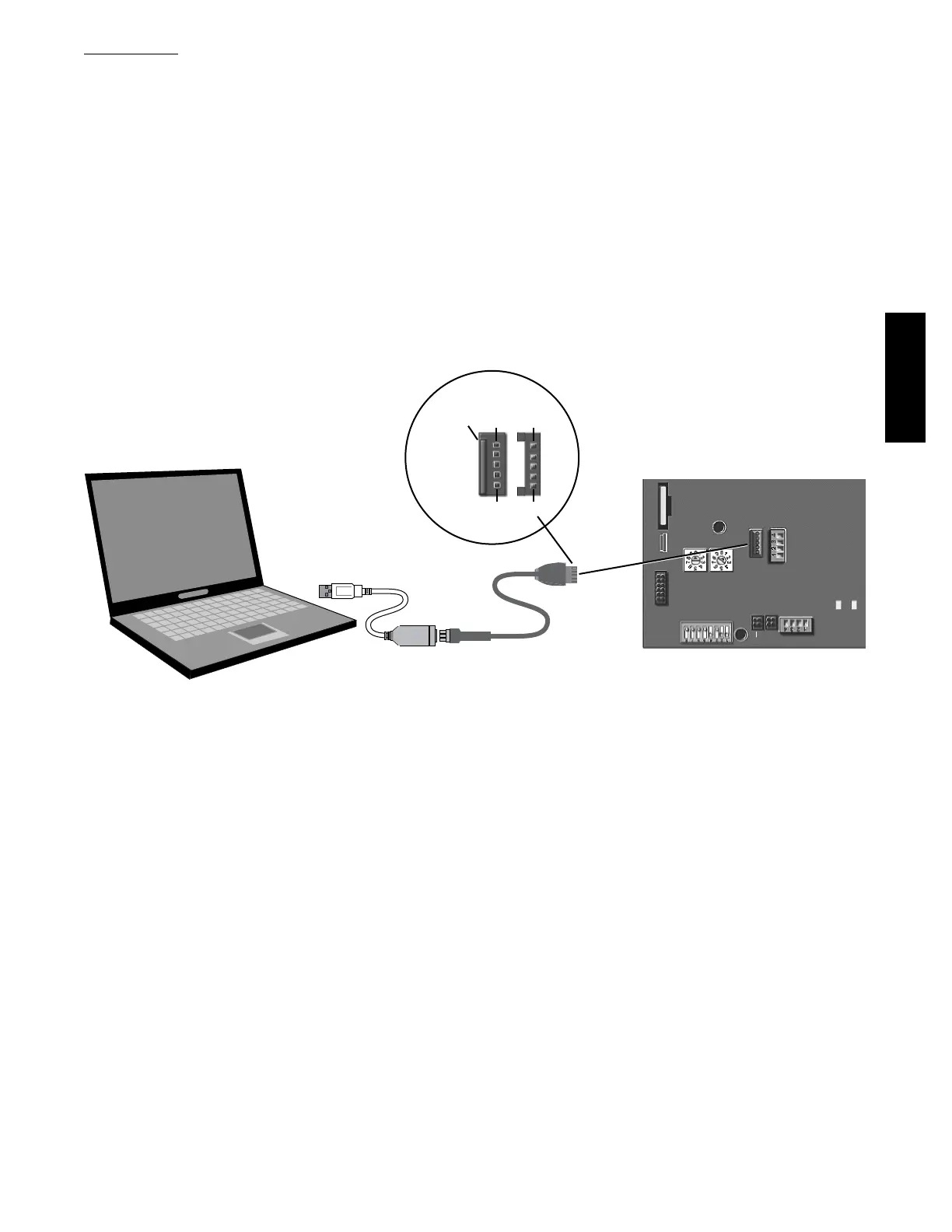

Fig. 71 -- PC Running Field Assistant
50TC
