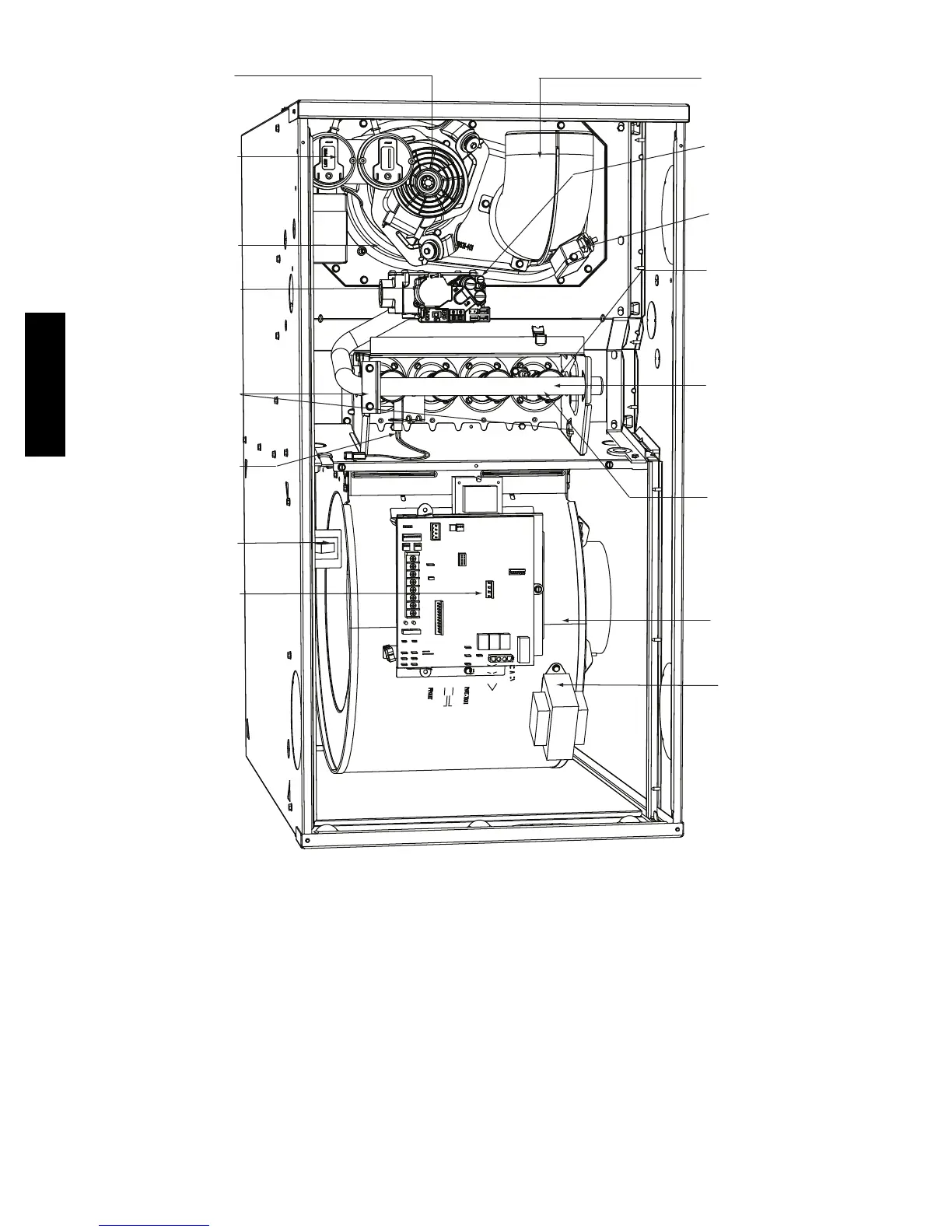

FURNACE COMPONENTS
INDUCER MOTOR
ASSEMBLY
PRESSURE
SWITCHES
FLUE COLLECTOR
BOX
GAS VALVE
HOT SURFACE
IGNITOR
BLOWER DOOR
SAFETY SWITCH
FURNACE CONTROL
BOARD
VENT
ELBOW
MAIN LIMIT SWITCH
(BEHIND GAS VALVE)
BLOCKED VENT
SWITCH
FLAME
SENSOR
GAS MANIFOLD
GAS BURNER
BLOWER AND
MOTOR
MANUAL RESET
LIMIT SWITCHES
CAPACITOR/
POWER CHOKE
A10312
NOTE: The 58CTW/58CTY Furnaces are factory shipped for use with natural gas. These furnaces can be field-converted for propane gas
with a factory-authorized and listed accessory conversion kit.
58CTW/CTY
