25
A00275

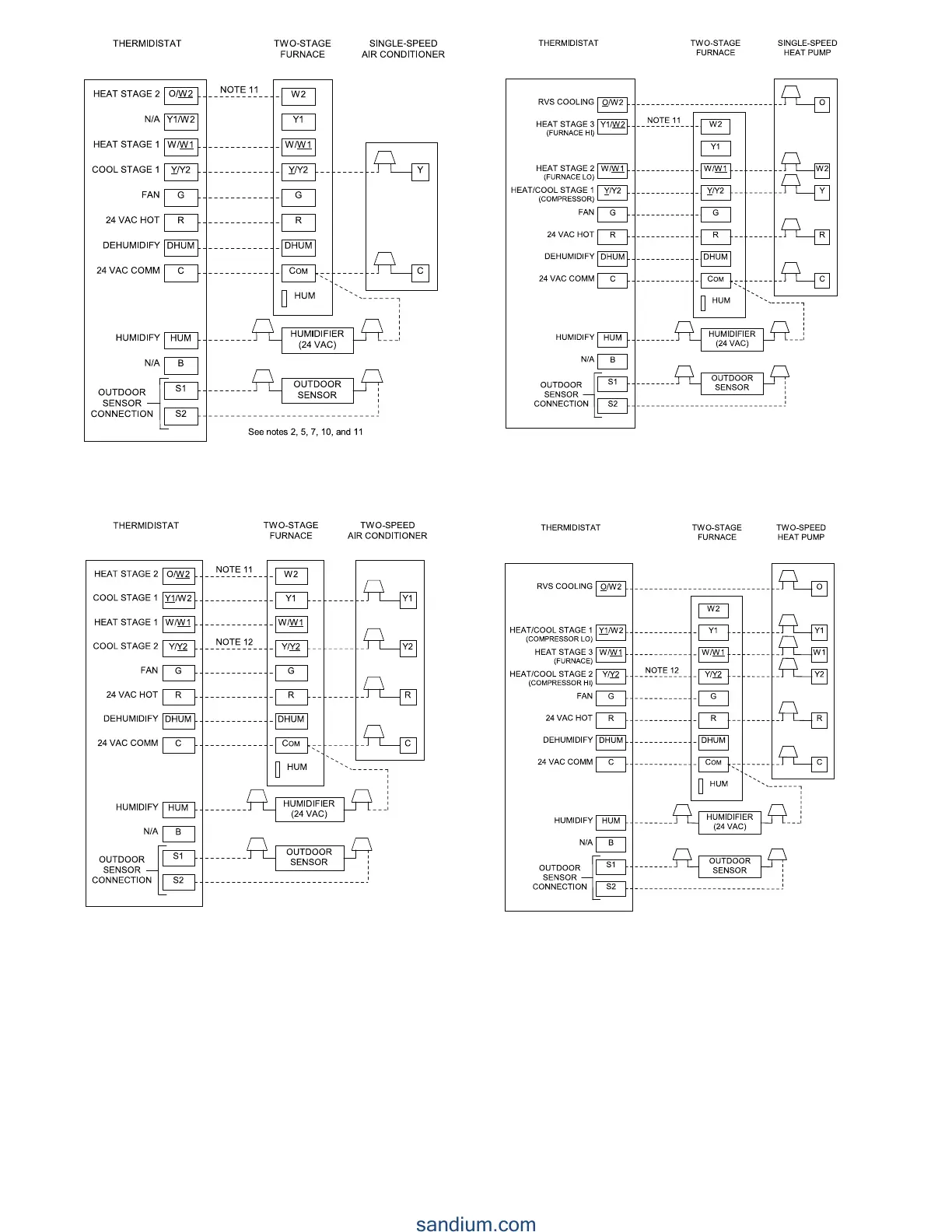

Fig. 27 -- Two --Stage Furnace with Single--Speed
Air Conditioner
See notes 2, 5, 8, 10, 11 and 12
on the page following these figures
A03179
Fig. 28 -- Two--Stage Furnace with Two--Speed Air Condi-
tioner
See notes 1, 2, 4, 6, 7, 9, 10, 11, and 15
on the page following these figures
A03180
Fig. 29 -- Two--Stage Furnace with Single--Speed Heat Pump
(Dual Fuel)
See notes 1, 2, 3, 4, 6, 8, 9, 10, 12, 13 and 15
on the page following these figures
A03178
Fig. 30 -- Two--Stage Furnace with Two--Speed Heat Pump
(Dual Fuel)
To Next Page
