58TP0A/58TP1A: Installation, Start-up, Operating and Service and Maintenance Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
25
A03207

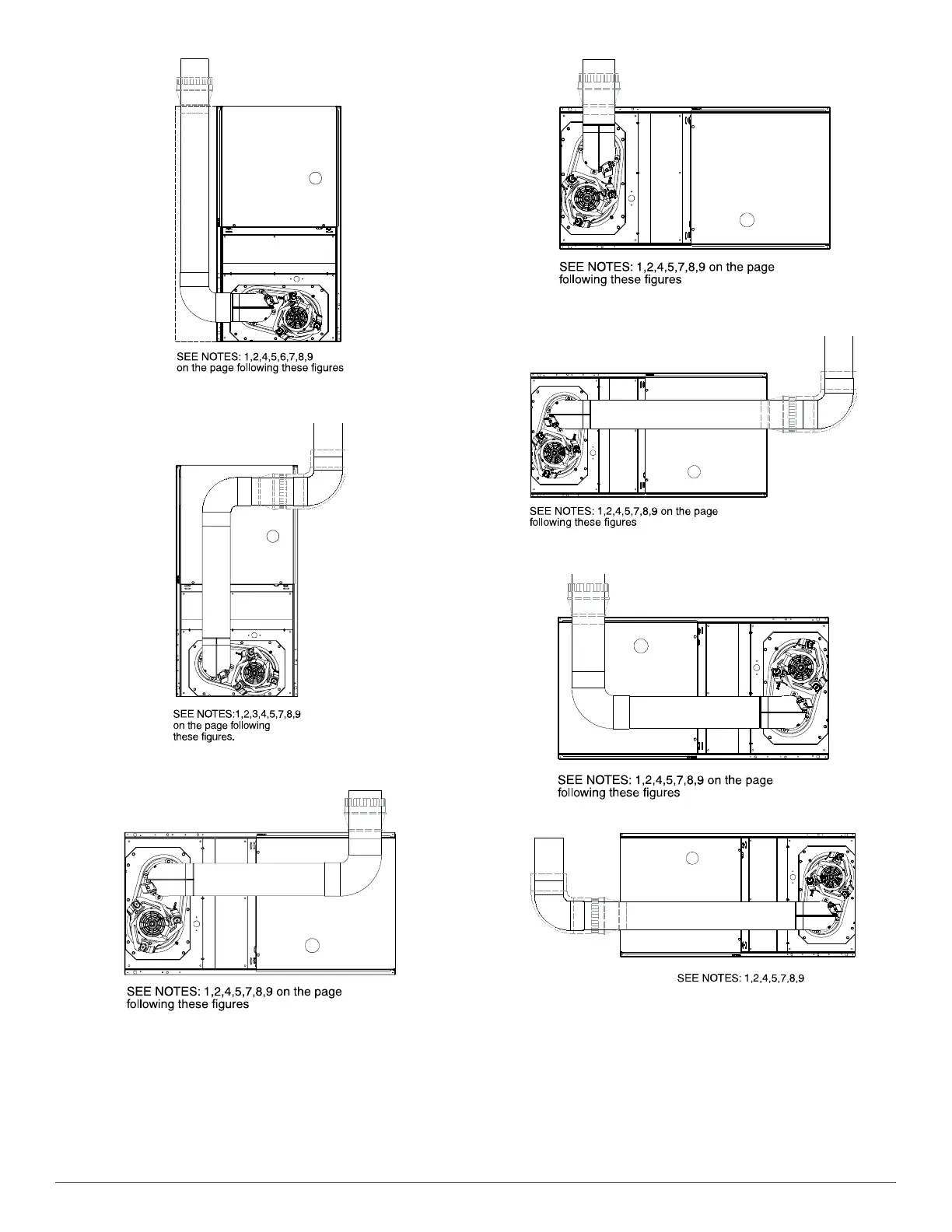

Fig. 44 – Downflow Application - Vent Elbow Left then Up
A03212
Fig. 45 – Downflow Application - Vent Elbow Up then Right
A03214
Fig. 46 – Horizontal Left Application - Vent Elbow Right then Up
A03215
Fig. 47 – Horizontal Left Application - Vent Elbow Up
A03216
Fig. 48 – Horizontal Left Application - Vent Elbow Right
A03219
Fig. 49 – Horizontal Right Application - Vent Elbow Left then Up
A02068
Fig. 50 – Horizontal Right Application-Vent Elbow Left
