Carrier 59SP2A - Page 39

39
Single-Stage Furnace with Single-Speed Air Conditioner
Single-Stage Furnace with Two-Speed Air Conditioner
Single-Stage Furnace with Single-Speed Heat Pump
Single-Stage Furnace with Two-Speed Heat Pump
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
*
*
*
*
D
D
D
D
See notes 2, 5, 7, 10, 14, and 15
See notes 1, 2, 4, 6, 7, 9, 10, 12, 14, and 15
See notes 2, 5, 8, 10, 14, and 15
See notes 1, 2, 3, 4, 6, 8, 9, 10,12, 14, and 15
A12223
A11275

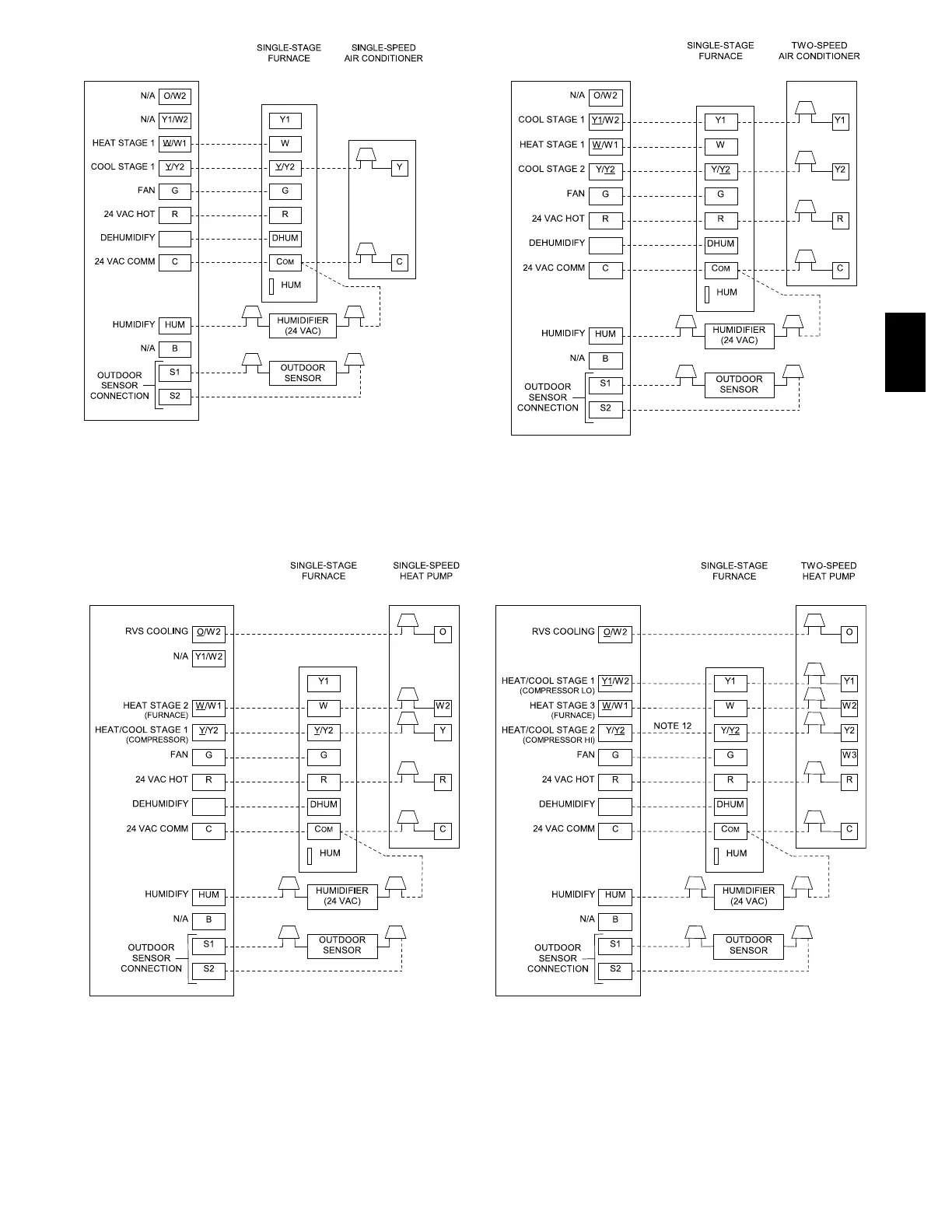

Fig. 39 -- Thermostat Wiring Diagrams
59SP2A
