Carrier EAM5X - Wiring Diagrams

Evaporator A-Coil, Cased, Multipoise for R-454B Refrigerant: Installation Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
8

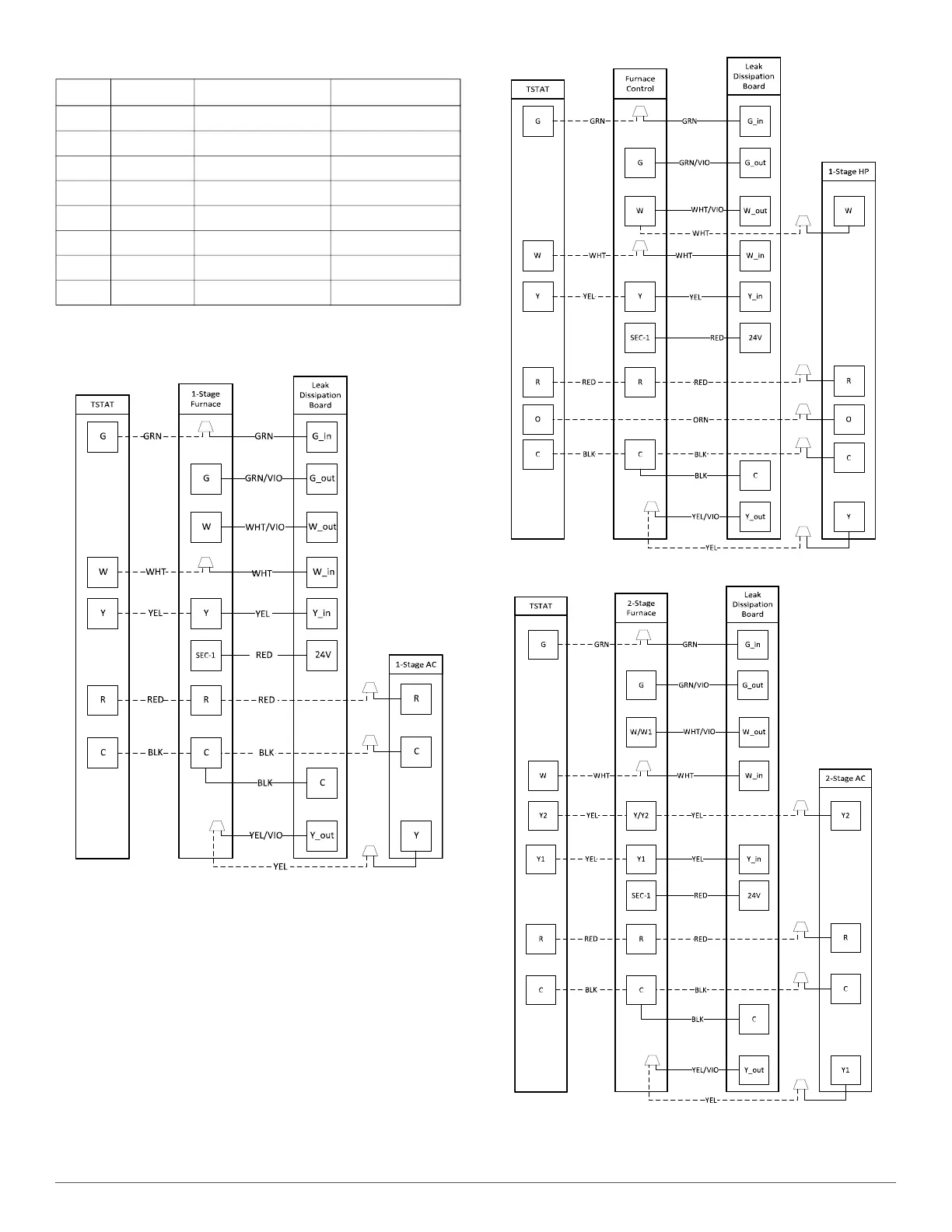

Wiring Diagrams
NOTE: All dashed lines in wiring diagrams are field-supplied wires. All
solid lines in wiring diagrams are provided with the respective unit.
A230458
Fig. 19 – Wiring Layout, 1-Stage Air Conditioning Unit
A230459
Fig. 20 – Wiring Layout, 1-Stage Heat Pump Unit
A230460
Fig. 21 – Wiring Layout, 2-Stage Air Conditioning Unit
Table 2 – Dissipation System Wiring Label
Pin Color 1-Stage Label 2-Stage Label
1 Red to Furnace SEC1 to Furnace SEC1
2 Grn/Vio to Furnace G to Furnace G
3 White to TSTAT W to TSTAT W1
4 Yel/Vio to OD unit Y to OD unit Y1
5 Yellow to Furnace Y to Furnace Y1
6 Green to TSTAT G to TSTAT G
7 White/Vio to Furnace W to Furnace W1
8 Black to Furnace C to Furnace C
