A
C
CROSS RAILS
SUPPLIED WITH
ACCESSORY TRIM KIT
A Module Cooler
B Module Cooler
B
A
B
C
D
B
A
CROSS RAILS
SUPPLIED WITH
ACCESSORY TRIM KIT
A Module Cooler
B Module Cooler
E
B
C
D
B
A
CROSS RAILS
SUPPLIED WITH
ACCESSORY TRIM KIT
B Module Cooler
A Module Cooler
Assume Victaulic Style 77 connections at all joints
Hat channel type brackets should be used (shaded areas) as required to support piping.
This assumes nozzle to nozzle spacing shown in dimensional drawing.
For all models: A pipe is 8
″
x length shown below;
B pipe is 8
″
x length shown below
C is Flexhose 8 x 16 SVG, 16
″
(406.4 mm) long Weight: 23.5 lbs (10.7 kg)
Size ‘A’ pipe length ‘A’ pipe weight ‘B’ pipe length ‘B’ pipe weight Total piping weight
303, 283 61.00
″
(1549 mm) 144.9 lbs (65.7 kg) 12.00
″
(304.8 mm) 28.5 lbs (12.9 kg) 196.9 lbs (89.3 kg)
390 78.88
″
(2003 mm) 187.6 lbs (85.1 kg) 12.00
″
(304.8 mm) 28.5 lbs (12.9 kg) 239.6 lbs (108.7 kg)
370 41.81
″
(1062 mm) 99.5 lbs (45.1 kg) 12.00
″
(304.8 mm) 28.5 lbs (12.9 kg) 151.5 lbs ( 68.7 kg)
373, 415 78.06
″
(1983 mm) 185.7 lbs (84.2 kg) 12.00
″
(304.8 mm) 28.5 lbs (12.9 kg) 237.7 lbs (107.8 kg)
Assume Victaulic Style 77 connections at all joints
Hat channel type brackets should be used (shaded areas) as required to support piping.
This assumes nozzle to nozzle spacing shown in dimensional drawing.
For all models: A pipe is 8
″
x length shown below
B elbow is 7.75
″
(196.9 mm) CL to end 8
″
elbow) Weight: 29.9 lbs (13.6 kg)
C is Flexhose 8 x 16 SVG, 16
″
(406.4 mm) long Weight: 23.5 lbs (10.7 kg)
D pipe is 8
″
x 22.375
″
(568.3 mm) long Weight: 53.2 lbs (24.1 kg)
Size ‘A’ pipe length ‘A’ pipe weight Total piping weight
450 47.06
″
(1195 mm) 112.0 lbs (50.8 kg) 360.5 lbs (163.5 kg)

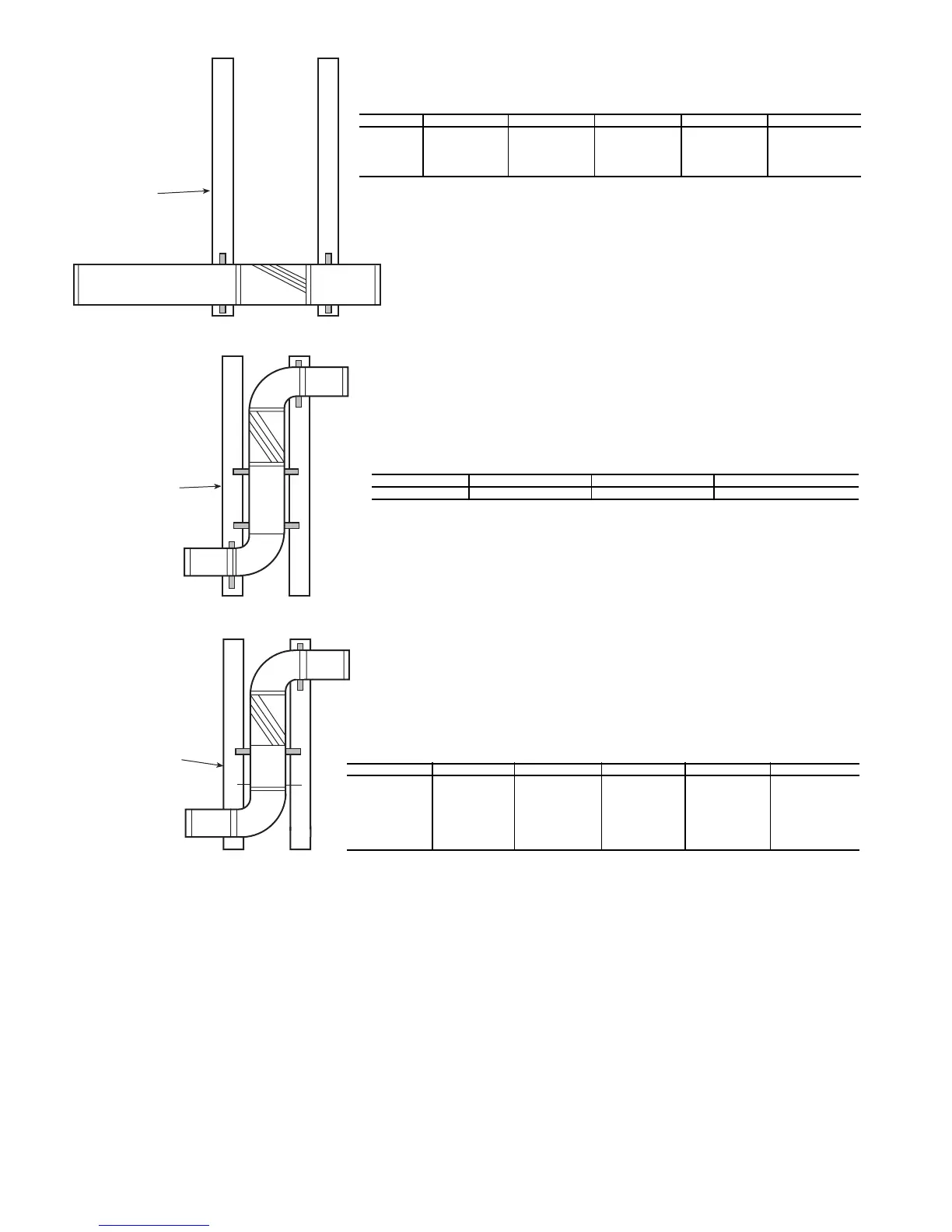

Fig. 33 — Victaulic Connection Details
Field Piping: Sizes 283, 303, 370, 373, 390, 415
Field Piping: Sizes 450
Assume Victaulic Style 77 connections at all joints
Hat channel type brackets should be used (shaded areas) as required to support piping.
This assumes nozzle to nozzle spacing shown in dimensional drawing.
For all models: A pipe is 8
″
x length shown below
B elbow is 7.75
″
(196.9 mm) CL to end (8
″
elbow) Weight: 29.9 lbs (13.6 kg)
C is Flexhose 8 x 16 SVG, 16
″
(406.4 mm) long Weight: 23.5 lbs (10.7 kg)
D pipe is 8
″
x 22.375
″
(568.3 mm) long Weight: 53.2 lbs (24.1 kg)
E pipe is 8
″
x length shown below
Size ‘A’ pipe length ‘A’ pipe weight ‘E’ pipe length ‘E’ pipe weight Total piping weight
328, 353 66.44
″
(1687 mm) 158.1 lbs (71.7 kg) 66.44
″
(1687 mm) 158.1 lbs (71.7 kg) 452.7 lbs (205.3 kg)
393, 418 83.25
″
(2114 mm) 197.7 lbs (89.7 kg) 66.44
″
(1687 mm) 158.1 lbs (71.7 kg) 492.3 lbs (223.5 kg)
453 47.06
″
(1195 mm) 112.0 lbs (50.8 kg) 47.06
″
(1195 mm) 112.0 lbs (50.8 kg) 360.5 lbs (163.7 kg)
478, 475 83.25
″
(2114 mm) 197.7 lbs (89.7 kg) 47.06
″
(1195 mm) 112.0 lbs (50.8 kg) 381.3 lbs (173.1 kg)
503, 528 83.25
″
(2114 mm) 197.7 lbs (89.7 kg) 83.25
″
(2114 mm) 197.7 lbs (78.7 kg) 531.9 lbs (241.5 kg)
500, 525 83.25
″
(2114 mm) 197.7 lbs (78.7 kg) 83.25
″
(2114 mm) 197.7 lbs (78.7 kg) 531.9 lbs (241.5 kg)
Field Piping: Sizes 328, 353, 393, 418, 475, 478, 500, 503, 525, 528
