4.11 Mount the air deflector
Fig.4-21
Fig.4-20
Fig.4-22
Fig.4-23
Unit: mm
Table.4-5
Fig.4-24
Fig.4-25
Fig.4-26

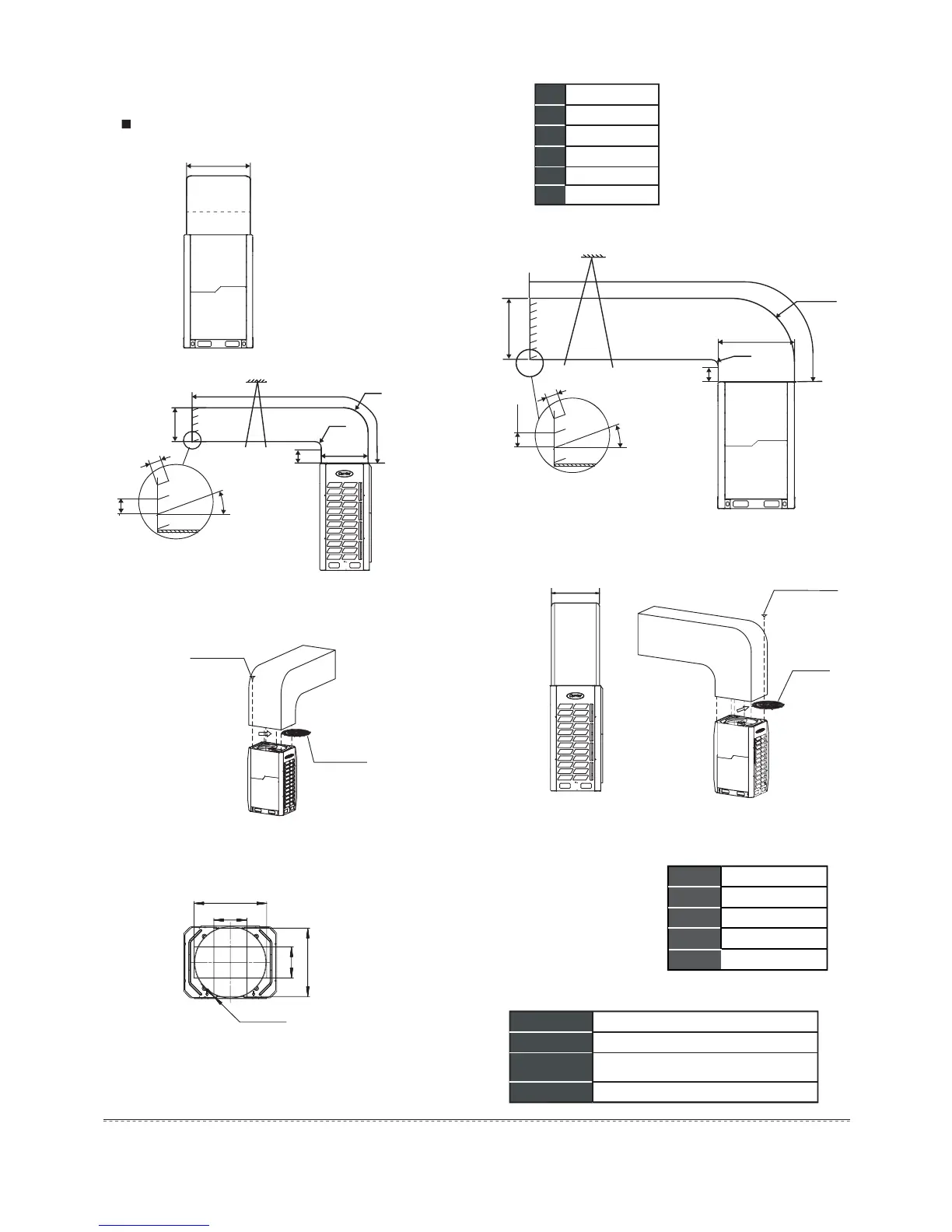

Air outlet louver dimension (optional)
Radius
8~12HP Installation illustration
Example A
Example B
Support
Support
Radius
Radius
Radius
Air outlet louver dimension (optional)
Remove the
iron filter firstly
Remove the
iron filter first
8 ST3.9 self-threading screws
8 ST3.9 self-threading screws
(If the static pressure of outdoor unit is over 20 Pa, the
unit needs to be customized.)
731
A
C
D
B
A≥300
B≥250
731≤D≤770
C≤3000
A
B
C
D
E=A+731
E
90
100
θ
750
E
θ
≤15°
θ
B
A
731
C
90
100
θ
770
750
D
750
340
320
704
8×φ3.3
Table.4-4
Remark
Factory default
Customization needed
Static pressure
0Pa
0～20Pa
Above 20Pa
Remove the wire mesh and connect it to
the wind duct (less than 3 meters).
A≥300
B≥250
C≤3000
A
B
C
D=A+750
D
θ
≤15°
θ
