Page 8 of 16 SC-409-10 Installation and Operating Instructions
11/10/05 CP4958A

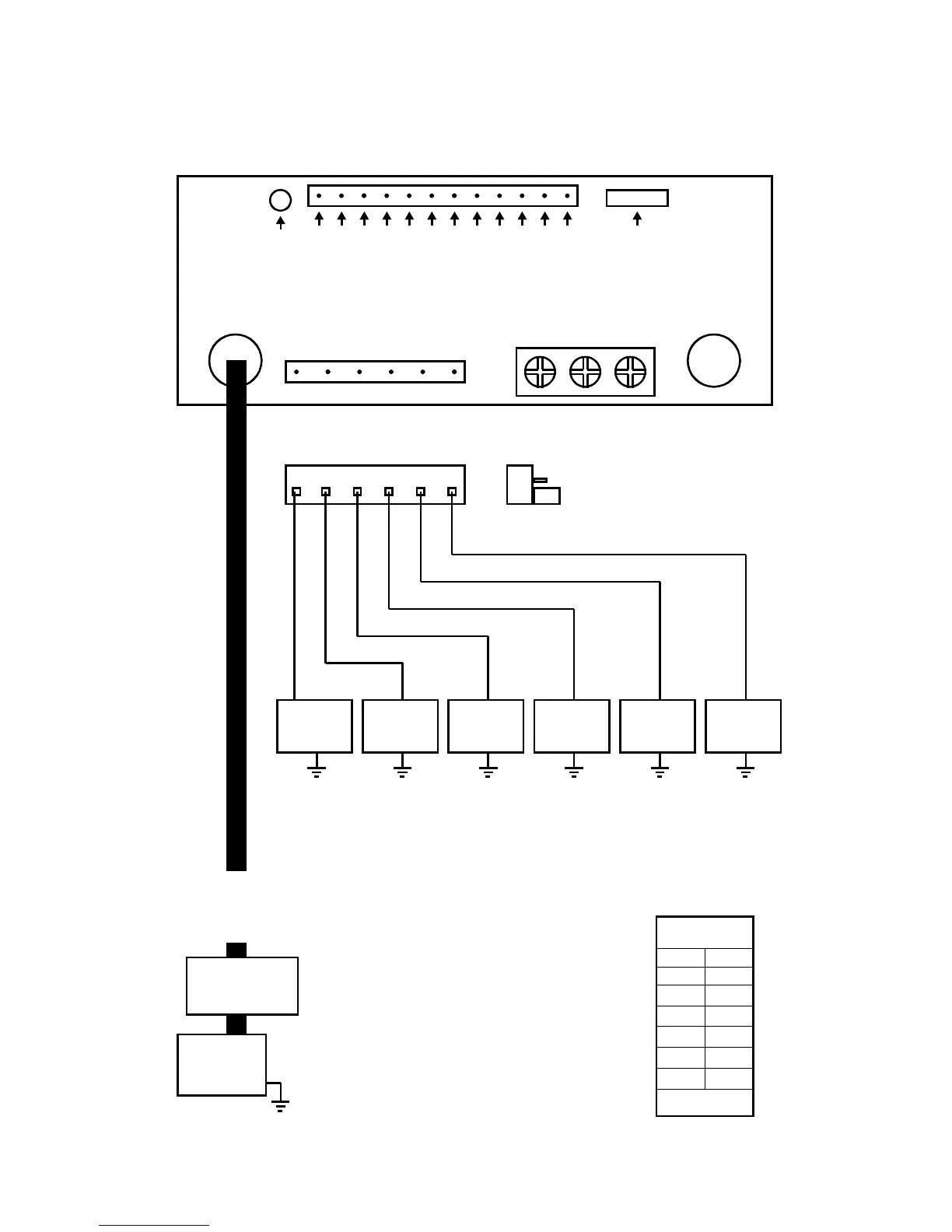

Auxiliary Control Switch Connections
Recommended
Wire Size
Amps Size
5 - 10 #16
10 - 15 #14
15 - 25 #12
25 - 40 #10
40 - 60 #8
60 - 80 #6
Use next larger size
if longer than 10 ft.
BAT
-
+
Supplied with #10 AWG RED
Internal screw pressure terminal
will accept up to #6 AWG for input
current higher than 40 Amps
Circuit Breaker
Limit input up to
80 Amps Max.
NEG NEG
VID
ENA AUX
RAD RAD
CUT
POS POS
SPK SPK
RAD
VOL
SIREN
FUSE
SW6 SW5 SW4 SW3 SW2 SW1
LV3 LV2 LV1
Load SW1
20 Amps
Max.
Load SW2
20 Amps
Max.
Load SW3
20 Amps
Max.
25A Automotive Type Fuses for outputs on bottom of unit
Plug installed
this orientation
6-P Terminal Block Plug
(CP4956-06)
Load SW4
20 Amps
Max.
Load SW5
20 Amps
Max.
Load SW6
20 Amps
Max.
NOTE: THE NEGATIVE (NEG) CONNECTIONS
ON 12-P PLUG ARE ALSO REQUIRED
