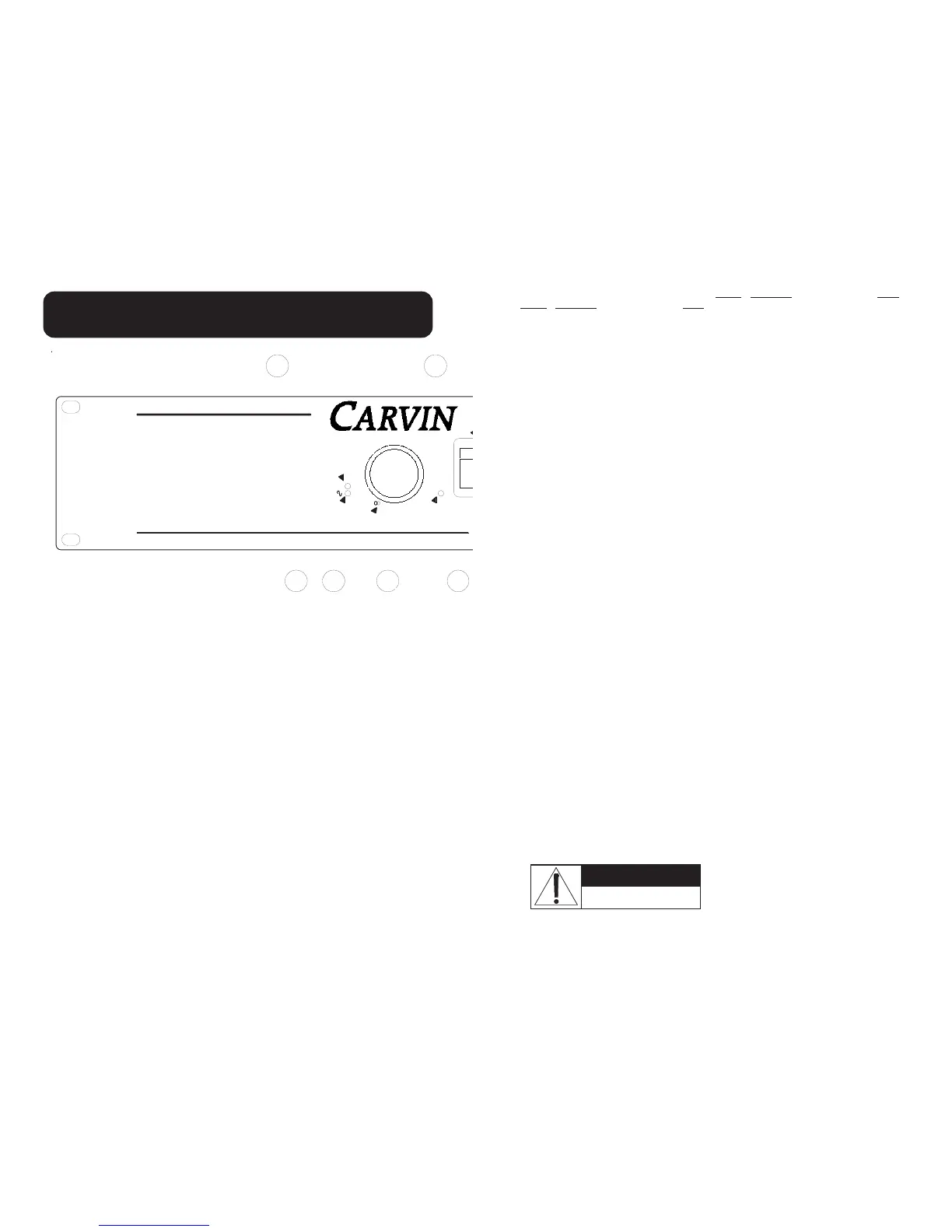

CARVIN F600 - Front Panel Features

3
20
1. POWER SWITCH
Press the top half of this switch to apply power to the unit. (The orange power LED ➆
will illuminate to show when the amplifier is powered.)
2. CHANNEL 1 LEVEL CONTROL
A precision 41 step input level attenuator is used to adjust volume levels.
3. CHANNEL 1 SIGNAL INDICATOR
This green LED comes on when signal is present on channel 1.
4. CHANNEL 1 CLIP INDICATOR
This RED LED lights when channel 1 has reached its maximum output capability.
5. FRONT PULL COOLING VENTS
The cooling chamber gets air from the front of the amplifier where the air is cooler. Make
sure there is adequate ventilation. Never block the vents or attach a front cover to the
rack while the equipment is operating.
6. HANDLES
These sturdy one piece aluminum handles make transporting a breeze as well as facili-
tate installation and removal from racks.
FRONT PANEL FEATURES
CHANNEL
1
2
3
4
5
6
7
8
9
10
11
12
13
15
17
19
22
30
50
0 dB
PROTECT
1
1
23 711
4
Parts List For F-Series PC Sub Assemblies
PCB REF DESCRIPTION PART #
A1 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A2 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A3 5532 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-55320
A4 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A5 5532 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-55320
A6 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A7 5532 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-55320
A8 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A9 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A10 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A11 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
A12 4558 Op Amp . . . . . . . . . . . . . . . . . . . . . . . . . .60-45580
BIAS ADJ Header, 4 Pin, .100, Straight . . . . . . . . . . . . . .23-10004
C4 Capacitor, Electrolytic, 4700µF, 100V . . . . . . .42-47212
C5 Capacitor, Electrolytic, 4700µF, 100V . . . . . . .42-47212
C6 Capacitor, Electrolytic, 4700µF, 100V . . . . . . .42-47212
C8 Capacitor, Electrolytic, 4700µF, 100V . . . . . . .42-47212
C9 Capacitor, Electrolytic, 4700µF, 100V . . . . . . .42-47212
C10 Capacitor, Electrolytic, 4700µF, 100V . . . . . . .42-47212
C11 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C12 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C14 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C15 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C16 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C18 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C19 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C20 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C21 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C22 Capacitor, Electrolytic 47µF, 63V . . . . . . . . . . .47-47061
C23 Capacitor, Electrolytic 47µF, 63V . . . . . . . . . . .47-47061
C100 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C101 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C105 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C106 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C107 Capacitor, Poly, .001µF, 100V . . . . . . . . . . . . .46-10212
C109 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C110 Capacitor, Ceramic, 56pF . . . . . . . . . . . . . . . . .45-56052
C111 Capacitor, Ceramic, 56pF . . . . . . . . . . . . . . . . .45-56052
C112 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C113 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C114 Capacitor, Ceramic, 39pF . . . . . . . . . . . . . . . . .45-39052
C115 Capacitor, Ceramic, 39pF . . . . . . . . . . . . . . . . .45-39052
C116 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C117 Capacitor, Ceramic, 56pF . . . . . . . . . . . . . . . . .45-56052
C118 Capacitor, Poly 0.068µF 100V . . . . . . . . . . . . .46-68312
C119 Capacitor, Electrolytic, 47µF, 63V . . . . . . . . . .47-47061
C125 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C126 Capacitor, Ceramic, 56pF . . . . . . . . . . . . . . . . .45-56052
C127 Capacitor, Ceramic, 27pF . . . . . . . . . . . . . . . . .45-27052
C128 Not used
C129 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C130 Not used
C131 Capacitor, Ceramic, 120pF . . . . . . . . . . . . . . . .45-12152
C132 Not used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C133 Not used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C134 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C135 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C136 Capacitor, Mylar, 0.047µF/400V . . . . . . . . . . . .46-47342
C138 Capacitor, Mylar, 0.0033µF/100V . . . . . . . . . . .46-33212
C139 Capacitor, Electrolytic, 22µF, 160V . . . . . . . . .47-22016
C140 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C141 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C142 Capacitor, Mylar, .01µF, 100V . . . . . . . . . . . . .46-10312
C200 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C201 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C205 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C206 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C207 Capacitor, Poly, .001µF, 100V . . . . . . . . . . . . .46-10212
C209 Capacitor, Electrolytic, 470µF, 25V . . . . . . . . .47-47125
C210 Capacitor, Ceramic, 56pF . . . . . . . . . . . . . . . . .45-56052
C211 Capacitor, Ceramic, 56pF . . . . . . . . . . . . . . . . .45-56052
C212 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C213 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C214 Capacitor, Ceramic, 39pF . . . . . . . . . . . . . . . . .45-39052
C215 Capacitor, Ceramic, 39pF . . . . . . . . . . . . . . . . .45-39052
C216 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C217 Capacitor, Ceramic, 56pF . . . . . . . . . . . . . . . . .45-56052
C218 Capacitor, Poly 0.068µF 100V . . . . . . . . . . . . .46-68312
C219 Capacitor, Electrolytic, 47µF, 63V . . . . . . . . . .47-47061
C225 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C226 Capacitor, Ceramic, 56pF . . . . . . . . . . . . . . . . .45-56052
C227 Capacitor, Ceramic, 27pF . . . . . . . . . . . . . . . . .45-27052
C228 Not used
C229 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C230 Not used
C231 Capacitor, Ceramic, 120pF . . . . . . . . . . . . . . . .45-12152
C232 Not used
C233 Not used
C234 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C235 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C236 Capacitor, Mylar, 0.047µF/400V . . . . . . . . . . . .46-47342
C238 Capacitor, Mylar, 0.0033µF/100V . . . . . . . . . . .46-33212
PCB REF DESCRIPTION PART #
C239 Capacitor, Electrolytic, 22µF, 160V . . . . . . . . .47-22016
C240 Capacitor, Electrolytic, 10µF, 50V . . . . . . . . . .47-10051
C241 Capacitor, Mylar, 0.22µF . . . . . . . . . . . . . . . . .46-22412
C242 Capacitor, Mylar, .01µF, 100V . . . . . . . . . . . . .46-10312
D1 LED, Small Red . . . . . . . . . . . . . . . . . . . . . . . .60-75320
D2 LED, Small Yellow . . . . . . . . . . . . . . . . . . . . . .60-24251
D3 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D4 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D5 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D6 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D7 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D8 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D9 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D100 Diode, 1A, 1000V, 1N4007 . . . . . . . . . . . . . . . .61-10000
D101 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D102 Diode, 1A, 1000V, 1N4007 . . . . . . . . . . . . . . . .61-10000
D105 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D106 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D107 LED, Small Red . . . . . . . . . . . . . . . . . . . . . . . .60-75320
D108 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D109 LED, Small Green . . . . . . . . . . . . . . . . . . . . . . .60-75330
D110 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D111 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D112 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
D113 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D114 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D115 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D116 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D117 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D118 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D119 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D120 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D121 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D200 Diode, 1A, 1000V, 1N4007 . . . . . . . . . . . . . . . .61-10000
D201 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D202 Diode, 1A, 1000V, 1N4007 . . . . . . . . . . . . . . . .61-10000
D205 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D206 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D207 LED, Small Red . . . . . . . . . . . . . . . . . . . . . . . .60-75320
D208 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D209 LED, Small Green . . . . . . . . . . . . . . . . . . . . . . .60-75330
D210 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D211 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D212 Resistor 1/4W, ±5%, 47K . . . . . . . . . . . . . . . . .50-47045
D213 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D214 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D215 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D216 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D217 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D218 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D219 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D220 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
D221 Diode, 1A, 200V, 1N4003 . . . . . . . . . . . . . . . .61-40030
E1 Not used
E2 Wire, RED, 14AWG, 14” . . . . . . . . . . . . . . . . . .04-14214
E3 Wire, BLU, 14AWG, 16” . . . . . . . . . . . . . . . . . .04-14616
E5 Wire, RED, 14AWG, 6” . . . . . . . . . . . . . . . . . . .04-16206
E6 Wire, BlU, 14AWG, 7” . . . . . . . . . . . . . . . . . . . .04-14607
E100 Wire, GRN, 14AWG, 9” . . . . . . . . . . . . . . . . . .04-14509
E101 Wire, BLK, 14AWG, 16” . . . . . . . . . . . . . . . . . .04-14016
E102 Wire, BRN, 14AWG, 11” . . . . . . . . . . . . . . . . . .04-14111
E103 Wire, BRN, 14AWG, 5” . . . . . . . . . . . . . . . . . . .04-14105
E200 Wire, GRN, 14AWG, 12” . . . . . . . . . . . . . . . . .04-14512
E201 Wire, BLK, 14AWG, 16” . . . . . . . . . . . . . . . . . .04-14016
E202 Wire, BLK, 14AWG, 8” . . . . . . . . . . . . . . . . . . .04-14008
E203 Wire, BLK, 14AWG, 4” . . . . . . . . . . . . . . . . . . .04-14004
H1 Cable, Ribbon, 24AWG, 8Pin, 175mm . . . . . . .05-24175
H2 Cable, Ribbon, 24AWG, 4Pin, 254mm . . . . . . .05-24254
H3 Cable, Ribbon, 24AWG, 4Pin, 275mm . . . . . . .05-24275
H4 Cable, Ribbon, 24AWG, 4Pin, 125mm . . . . . . .05-24125
H5 Cable, Ribbon, 24AWG, 4Pin, 225mm . . . . . . .05-24225
H6 Cable, Ribbon, 24AWG, 8Pin, 255mm . . . . . . .05-24255
H7 Cable, Ribbon, 24AWG, 8Pin, 255mm . . . . . . .05-24255
H8 Conn. Header, 4 Pin, .100, Straight . . . . . . . . .23-10004
H9 Cable, Ribbon, 24AWG, 8Pin, 255mm . . . . . . .05-24255
J100 Jack, 1/4” 7P Plastic, 24mm . . . . . . . . . . . . . . .21-06457
J101 XLR, Female, Neutrik . . . . . . . . . . . . . . . . . . . .21-40000
J102 Jack, 1/4” 3P Plastic, 24mm . . . . . . . . . . . . . . .21-06453
J103 Connector, Speakon 4 Pin . . . . . . . . . . . . . . . .21-45000
J200 Jack, 1/4” 7P Plastic, 24mm . . . . . . . . . . . . . . .21-06457
J201 XLR, Female, Neutrik . . . . . . . . . . . . . . . . . . . .21-40000
J202 Jack, 1/4” 3P Plastic, 24mm . . . . . . . . . . . . . . .21-06453
J203 Connector, Speakon 4 Pin . . . . . . . . . . . . . . . .21-45000
JMP108 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP110 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP113 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP114 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP119 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP120 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP130 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP131 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP132 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP134 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP136 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP137 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP138 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP139 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP140 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP151 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP156 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP162 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP165 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
JMP166 Resistor, 0.0Ω, 0.35” jumper . . . . . . . . . . . . . .50-00035
K1 Relay, 10 Amp, SPDT, 24VDC, JY1JDC24V . .70-05698
K100 Relay, 10 Amp, SPDT, 24VDC, JY1JDC24V . .70-05698
K200 Relay, 10 Amp, SPDT, 24VDC, JY1JDC24V . .70-05698
THIS UNIT CONTAINS HIGH VOLTAGE
COMPONENTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
