CARVIN TRx Series User Manual

14
Full Range or Bi-Amp Configuration
Trx3210 Enclosures can be congured either in full range/passive mode or bi-amped 3-way mode. ey ship
from the factory as standard in full range/passive mode. Selecting from one to the other is as simples as ipping
a concealed switch on the connection panel.
OUTPUT
INPUT
THRU INPUT INPUT THRU
GND PARALLELLIMITERBRIDGE
LIFT
ONLY
BRIDGE
12
OUTPUT
INPUT
THRU INPUT INPUT THRU
GND PARALLELLIMITERBRIDGE
LIFT
ONLY
BRIDGE
12
OUTPUT
INPUT
THRU INPUT INPUT THRU
GND PARALLELLIMITERBRIDGE
LIFT
ONLY
BRIDGE
1 2
BIAMP
BIAMP
NORM
NORM
(NORMAL, BIAMP)
(NORMAL, BIAMP)
LOW
FREQ
AMP
MID
FREQ
AMP
HI
FREQ
AMP
DCM3800L
DCM3800L
DCM2000L
CARVIN XD360 OUTPUTS
HI
FREQ
MID
FREQ
LOW
FREQ
AD45 ADAPTER
(1+,1-) to (2+,2-) for HI FREQ.
and
(1+,1-) to (1+,1-) for MID FREQ.
Bi Amp Operation:
Remove rubber plug marked Full Range/ BiAMP from con-
nection panel. Using a small at-head screw driver, carefully
insert screwdriver into opening and slide switch to the right
for Bi-Amp operation. Note: Mode switch must always be
in the UP (normal) position for Bi-Amp operation. Replace
rubber plug aer change.

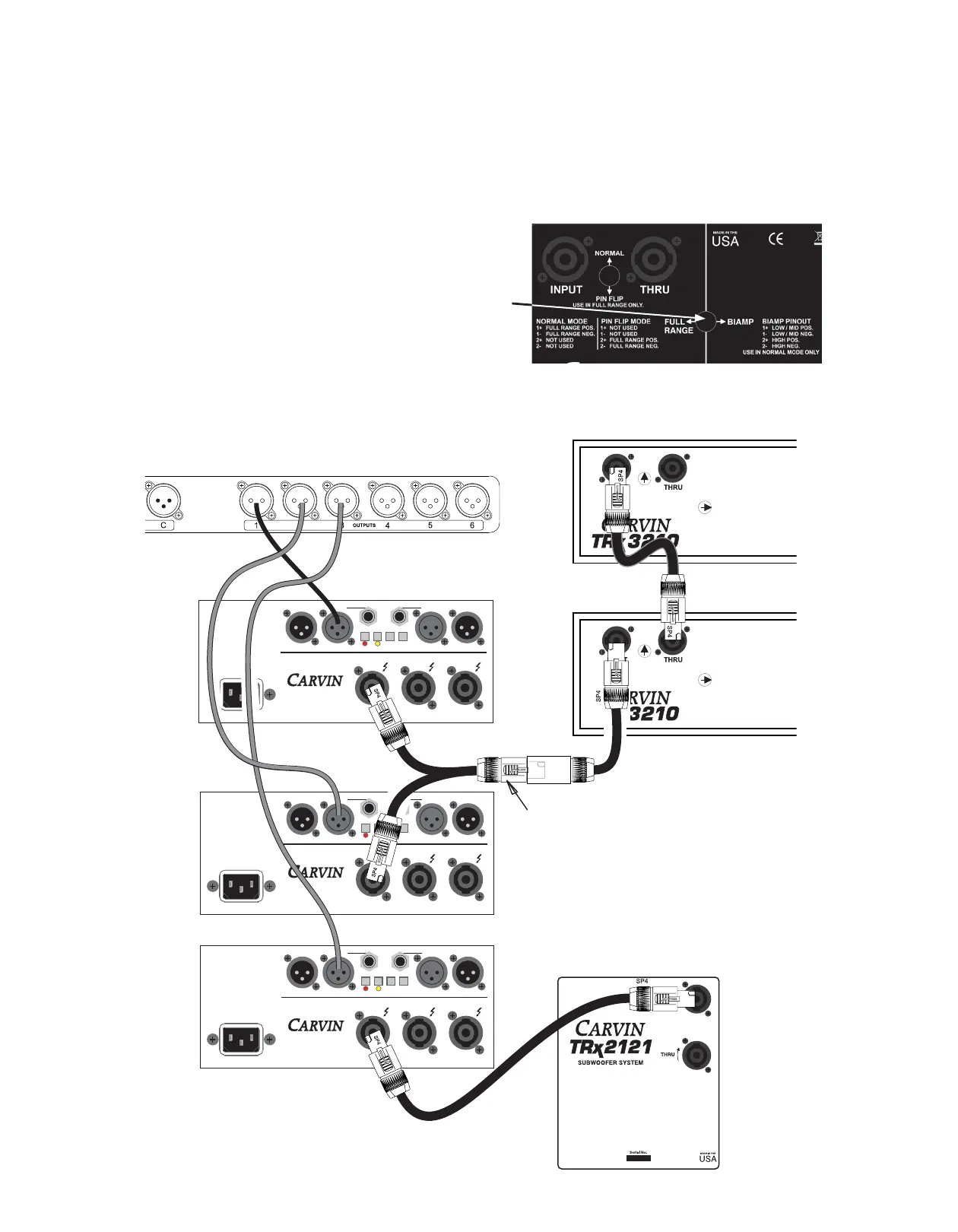

Bi-Amp Hook-up
not required with DCMLx amps
SUB
