17
Processor Settings for XD360, DCMLx or other speaker management systems
For optimum performance, a loudspeaker management processor is recommended. Carvin oers both an out-
board processor such as the XD360 X-Drive™ as well as the DCMLx power amps that have on-board X-Drive™
processing. Carvin’s XD360 and DCMLx power amps will have the TRx3210 crossover settings as a preset. e
following charts provide a variety of settings that cover both full-range and bi-amping. e below settings apply
to all speaker management systems.

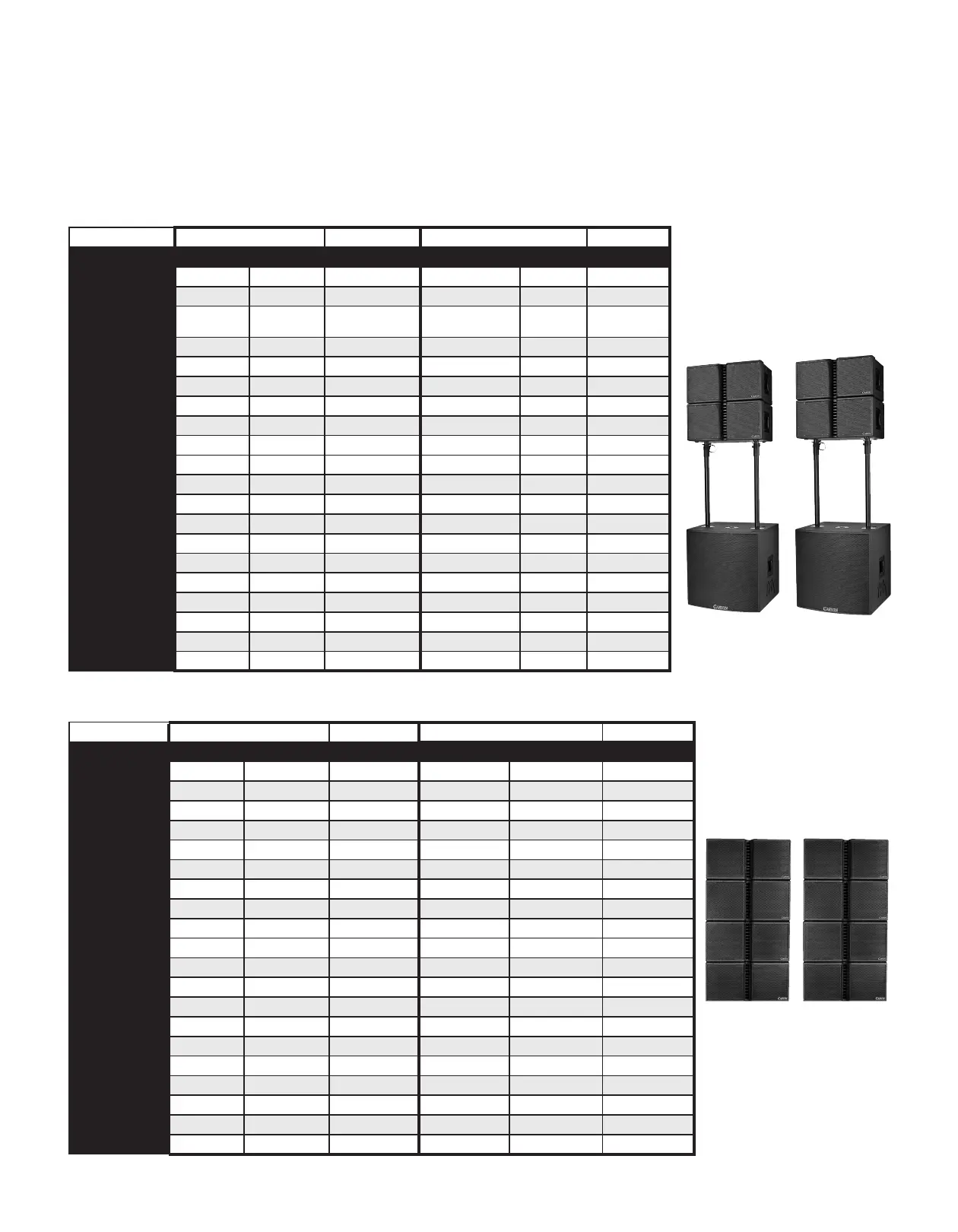

LEFT TWO ON SUB RIGHT TWO ON SUB
OUTPUT
Main (ch1) N/A (ch2) SUB (ch3) Main (ch1) N/A (ch5) SUB (ch6)
Output Gain
-3dB 0.0 dB -3dB 0.0 dB
Input Source
A A, A+B or B B, A+B or
(Alt Source)
(C for Aux sub) (A for 8 mono) (C for Aux
sub)
Polarity
OUT IN OUT IN
LPF frequency
20 KHz 80Hz 20 KHz 80Hz
LPF type
OUT Linkwtz 24 OUT Linkwtz 24
HPF frequency
80 Hz 32 Hz 80 Hz 32 Hz
HPF type
Linkwtz 24 Butter 18 Linkwtz 24 Butter 18
Limit Threshold
0dB 0dB 0dB 0dB
Output Delay
PEQ1 GAIN
6 dB 6 dB
PEQ1 FREQ
630 Hz 630 Hz
PEQ1 BW
0.16 0.16
PEQ2 GAIN
-9 dB -9 dB
PEQ2 FREQ
2.7 KHz 2.7 KHz
PEQ2 BW
0.12 0.12
LEFT FOUR RIGHT FOUR
OUTPUT
HI (ch1) LO-MID (ch2) SUB (ch3) HI (ch4) LO-MID (ch5) SUB (ch6)
Output Gain
-15 dB 0.0 dB 0.0 dB -15 dB 0.0 dB 0.0 dB
Input Source
A A A, A+B or B B B, A+B or
(Alt Source)
(C for Aux sub) (A for 8 mono) (C for Aux sub)
Polarity
OUT IN IN OUT IN IN
LPF frequency
20kHz 1.5kHz 80Hz 20kHz 1.5kHz 80Hz
LPF type
OUT Butter 48 Linkwtz 24 OUT Butter 48 Linkwtz 24
HPF frequency
1.5 KHz 80 Hz 32 Hz 1.5 KHz 80 Hz 32 Hz
HPF type
Butter 48 Linkwtz 24 Butter 18 Butter 48 Linkwtz 24 Butter 18
Limit Threshold
-3 0 0 -3 0 0
Output Delay
84 uS 0.0 mS 0.0 mS 84 uS 0.0 mS 0.0 mS
PEQ1 GAIN
-6 dB -9dB -6 dB -9dB
PEQ1 FREQ
2 KHz 315 Hz 2 KHz 315 Hz
PEQ1 BW
1 0.3 1 0.3
PEQ2 GAIN
12 dB 12 dB
PEQ2 FREQ
12 KHz 12 KHz
PEQ2 BW
3 3
Stereo passive 2 array modules pole mounted on sub
STEREO Bi Amp 4 array modules 2.5 - 12.5 degrees Curve array
