CARVIN TRx Series User Manual

20
Turnkey Factory Assembled Amp Racks
AR-MAIN
(1)DCM2004L
(2)DCM3800L
(1)XD360
(1)IP340
(1)USB-CBL
(8)C3XLR
(1)1U Panel
(1)4U Vented Panel
(1)AC3PH120*
AR-S
(4)DCM3800L (bridged)
(1)IP340
(1)USB-CBL
(4)C3XLR
(1)4U Vented Panel
(1)AC3PH120*
*
Delete Option Available
SUB Amp Rack (15,200 Watts)
Main Amp Rack (6,600 Watts)
AR AMP RACKS
DCM-L AMPS & XD360 Processor
AR-MAIN
(1)DCM2004L
(2)DCM3800L
(1)XD360
(1)IP340
(1)USB-CBL
(8)C3XLR
(1)1U Panel
(1)4U Vented Panel
(1)AC3PH120*
AR-S
(4)DCM3800L (bridged)
(1)IP340
(1)USB-CBL
(4)C3XLR
(1)4U Vented Panel
(1)AC3PH120*
*
Delete Option Available
SUB Amp Rack (15,200 Watts)
Main Amp Rack (6,600 Watts)
AR AMP RACKS
DCM-L AMPS & XD360 Processor
SUB Amp Rack (15,200 Watts)
Main Amp Rack (6,600 Watts)
ARX AMP RACKS
DCM-LX DSP AMPS (No XD360 required)
ARX-S
(4)DCM3800LX (bridged)
(1)IP340
(1)USB-HUB
(4)USB-CBL
(4)C3XLR
(1)4U Vented Panel
(1) AR1 Amp Rack
(1) ASSM-AR
(1)AC3PH120*
* Delete Option Available
ARX-MAIN
(1)DCM2004LX
(2)DCM3800LX
(1)IP340
(1)USB-HUB
(3)USB-CBL
(4)C3XLR
(1)2U Panel
(1)4U Vented Panel
(1) AR1 Amp Rack
(1) ASSM-AR
(1)AC3PH120*
SUB Amp Rack (15,200 Watts)
Main Amp Rack (6,600 Watts)
ARX AMP RACKS
DCM-LX DSP AMPS (No XD360 required)
ARX-S
(4)DCM3800LX (bridged)
(1)IP340
(1)USB-HUB
(4)USB-CBL
(4)C3XLR
(1)4U Vented Panel
(1) AR1 Amp Rack
(1) ASSM-AR
(1)AC3PH120*
* Delete Option Available
ARX-MAIN
(1)DCM2004LX
(2)DCM3800LX
(1)IP340
(1)USB-HUB
(3)USB-CBL
(4)C3XLR
(1)2U Panel
(1)4U Vented Panel
(1) AR1 Amp Rack
(1) ASSM-AR
(1)AC3PH120*

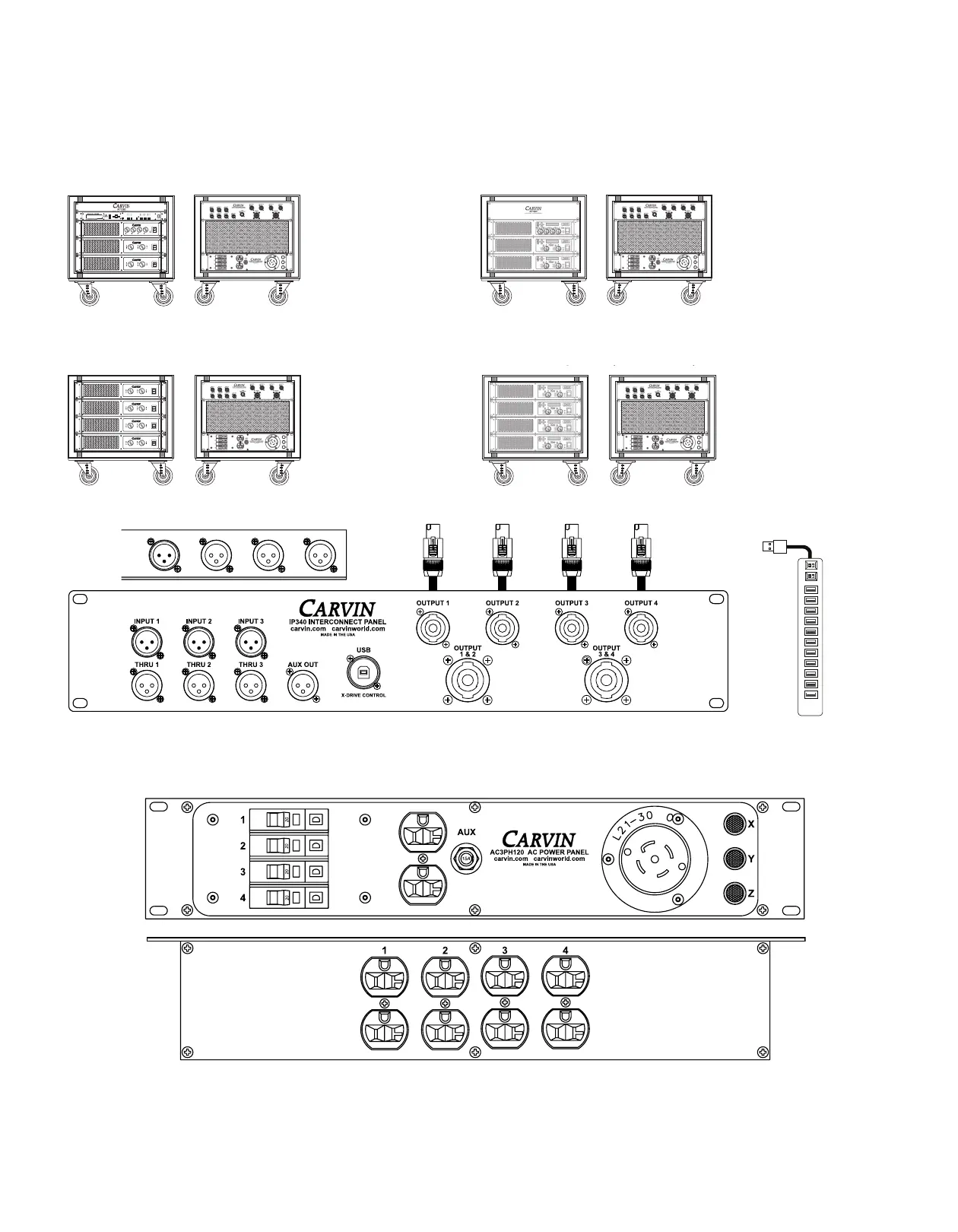

• IP340 2U Interconnect XLR inputs and TwistLoc outputs • Fast and easy connections to rack gear
• Built-in rear TwistLoc cables connect to power amps • Front USB to computer, rear to USB hub
• AC3PH120 2U AC power panel for 100-130VAC 50-60Hz • Saftey approvals ETL listed to UL standards.
• Designed for safe connections to the rack gear & house power. For use in other countries with approved adapters.
• 3 phase 120VAC/208VAC • Each phase (leg) supports one 20 amp breaker (3rd & 4th breaker on leg 3)
USB12HUB
12 port hub
To power ampsTo power amps
ARP-MAIN-BI (Biamp)
(1) DCM2004L
†
(2) DCM3800L
(1) XD360 Processor
(1) IP340 Connect Panel
(1) C2U USB 2ft cable
(8) C3XLR 3ft cable
(1) 1U Blank Panel
(1) 4U Vented Panel
(1) AR1 Shock Rack Case
(1) AR-ASSM Assembled Rack
(1) AR-PROG Program / Test
(1) AC3PH120 AC Panel*
*AR-MAIN-BI without AC3PH120
*
†
AR-MAIN (passive) without DCM2004L
& AC3PH120
ARPx-MAIN-BI (Biamp)
(1) DCM2004Lx
†
(2) DCM3800Lx
(1) IP340 Connect Panel
(1) USB12HUB
(3) C2U USB 2ft cable
(4) C3XLR 3ft cable
(1) 2U Blank Panel
(1) 4U Vented Panel
(1) AR1 Shock Rack Case
(1) AR-ASSM Assembled Rack
(1) AR-PROG Program / Test
(1) AC3PH120 AC Panel*
*ARx-MAIN-BI without AC3PH120
*
†
ARx-MAIN (passive) without DCM2004Lx
& AC3PH120
ARP-S (Sub)
(4) DCM3800L (bridged)
(1) IP340 Connect Panel
(1) C2U USB 2ft cable
(4) C3XLR 3ft cable
(1) 4U Vented Panel
(1) AR1 Shock Rack Case
(1) AR-ASSM Assembled Rack
(1) AR-PROG Program / Test
(1) AC3PH120 AC Panel*
*AR-S without AC3PH120
ARPx-S (Sub)
(4) DCM3800Lx (bridged)
(1) IP340 Connect Panel
(1) USB12HUB
(4) C2U USB 2ft cable
(4) C3XLR 3ft cable
(1) 4U Vented Panel
(1) AR1 Shock Rack Case
(1) AR-ASSM Assembled Rack
(1) AR-PROG Program / Test
(1) AC3PH120 AC Panel*
*ARx-SUB without AC3PH120
AR AMP RACKS
DCM-L Amps & XD360 Processor
Configured for minimum of 4 ohm operation per amplifier channel.
ARx AMP RACKS
DCM-Lx DSP Amps (XD360 not required)
Configured for minimum of 4 ohm operation per amplifier channel.
ARP-MAIN-BI Amp Rack (6,600 Watts)
ARPx-MAIN-BI Amp Rack (6,600 Watts)
AR-S Sub Amp Rack (15,200 Watts)
ARX-S Sub Amp Rack (15,200 Watts)
TOP VIEW
AUX IN 3 IN 2 IN 1
IP340 XLR Rear
Rear Rear
Rear
Rear
Front Front
Front
Front
MADE IN USA
MADE IN USA
