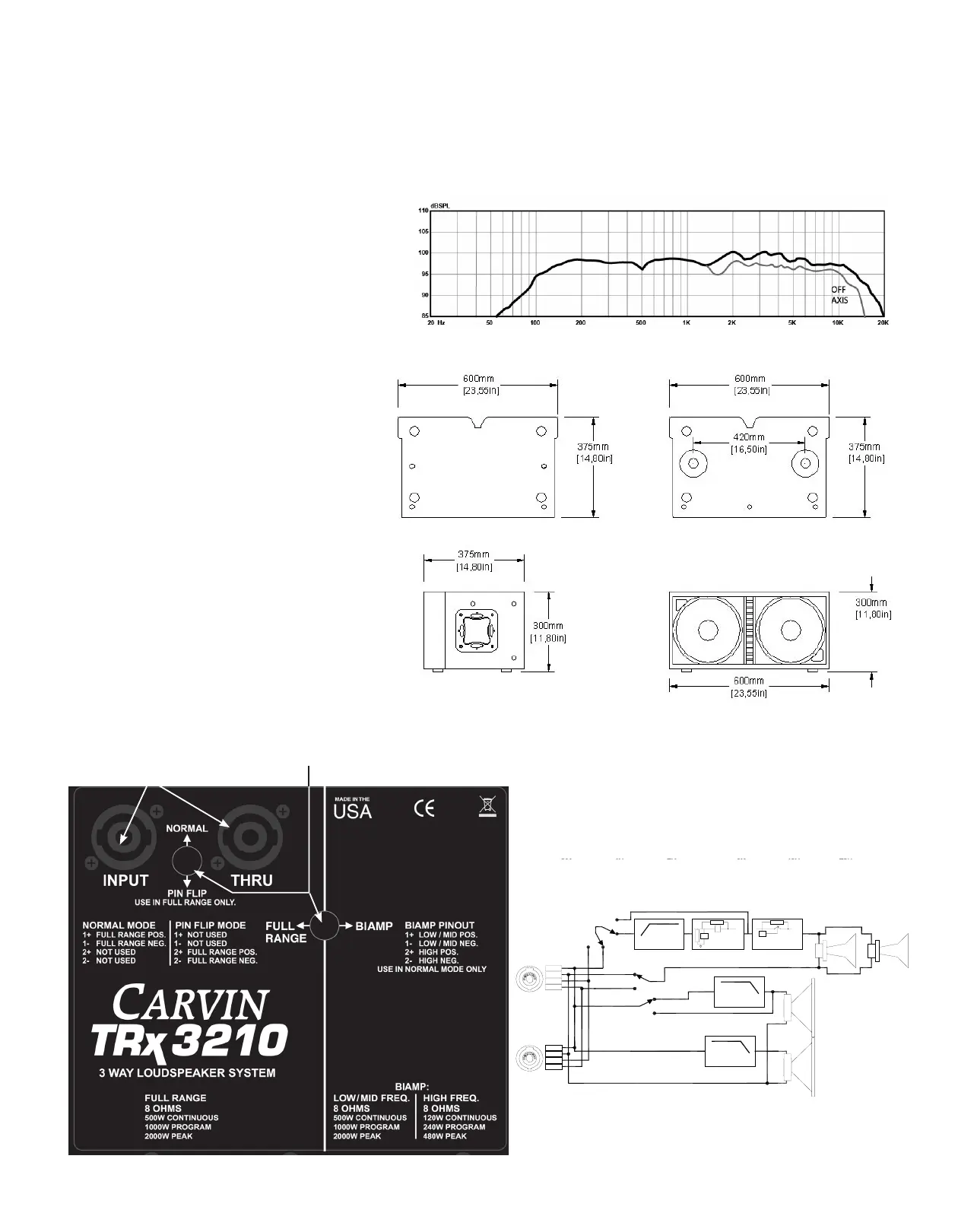

CARVIN TRx Series User Manual

4
Side of TRx3210
with and without
SureFly hardware
Frequency Response
TRx3210 Rear Plate Block Diagram in Full Range Mode
Dimensions
HIGH PASS
FILTER
MID / LOW
PASS FILTER
LOW PASS
FILTER
EQ AND
MATCHING
1+
1-
2+
2-
+
-
SPEAKER
GUARD
1+
1-
2+
2-
+
-
+
-
MID / LOW
DRIVER
LOW
DRIVER
HORN DRIVERS
+
-
600mm
[23,50in]
575mm
[22,63in]
375mm
[14,75in]
285mm
[11,25in]
600mm
[23,50in]
SureFly Hardware
Four TRx3210’s
Stacked on TRx1121
Ten TRx3210 hang with 4
straight and 6 set at 5 degrees
No hardware
needed. Feet fit into
cabinet below
Side of TRx3210
with and without
SureFly hardware
Frequency Response
TRx3210 Rear Plate
Block Diagram in Full Range Mode
Dimensions
HIGH PASS
FILTER
MID / LOW
PASS FILTER
LOW PASS
FILTER
EQ AND
MATCHING
1+
1-
2+
2-
+
-
SPEAKER
GUARD
1+
1-
2+
2-
+
-
+
-
MID / LOW
DRIVER
LOW
DRIVER
HORN DRIVERS
+
-
600mm
[23,50in]
575mm
[22,63in]
375mm
[14,75in]
285mm
[11,25in]
600mm
[23,50in]
SureFly Hardware
Four TRx3210’s
Stacked on TRx1121
Ten TRx3210 hang with 4
straight and 6 set at 5 degrees
No hardware
needed. Feet fit into
cabinet below
TRx3210 Specifications
TRx3210F - with SureFly™ hardware pre-installed
System Type: Dual 10-inch 3-Way, Reflex
Frequency Response: 70 Hz – 18.5 kHz (-10DB)
85 Hz – 16 kHz (-3 dB)
Coverage Pattern: 100˚ H x 10˚ V (single enclosure)
Crossover: 3-Way Quasi
Speaker Guard™ HF protection
Crossover Frequencies: 500Hz & 1.5 k Hz
Sensitivity (1w @ 1m): 98dB
Maximum SPL: 131dB Peak single enclosure
137dB Peak four enclosures
140dB Peak eight enclosures
LF Driver: 2x 10-inch 2-inch VC
HF Driver: 2x 1-inch exit 1.75-inch VC
Nominal Impedances (Continuous/Program/Peak)
Full range: 8 ohms 500w /1000w /2000w
Bi-amp LF: 8 ohms 500w /1000w /2000w
Bi-amp HF: 8 ohms 120w /240w /480w
Enclosure: 13-Ply Russian Baltic Birch
Suspension/Mounting: 14 captive 3/8in-16 nut fly pts.
Two 1-3/8 pole mount cups
Finish: Black DuraTec™
UV, water resistant IP2
Transport: 2 Recessed Handles
Grill: Black powder coated steel
Acoustically Transparent Foam Backing
Connectors: Two 4-pin TwistLoc connectors
Dimensions (H x W x D): 11.8 in x 23.5 in x 14.75 in
300 mm x 600 mm x 374 mm
Net Wt: 52 lb (24 kg) without hardware
Maximum Fly Capacity: 16
Made in USA
See pages 14-16 for full range - pin ip mode and
bi-amp conguration
4-pin TwistLoc
