CARVIN TRx Series User Manual

16
OUTPUT
INPUT
THRU INPUT INPUT THRU
GND PARALLELLIMITERBRIDGE
LIFT
ONLY
BRIDGE
1
2
DCM3800L
AMP CH.2: PINS 2+, 2-
(PIN FLIP, FULLRANGE)
AMP CH.1: PINS 1+, 1-
(NORMAL, FULL RANGE)
AMP CH.2: PINS 2+, 2-
(PIN FLIP, FULLRANGE)
AMP CH.1: PINS 1+, 1-
(NORMAL, FULL RANGE)
AD45 ADAPTER
(1+,1-) + (1+,1-)
to (1+,1- , 2+,2-)
OLDER MODELS USE ADAPTER AD45
(before SEPT. 2012)
CH.1 (1+,1-)
and
CH.2 (2+,2-)

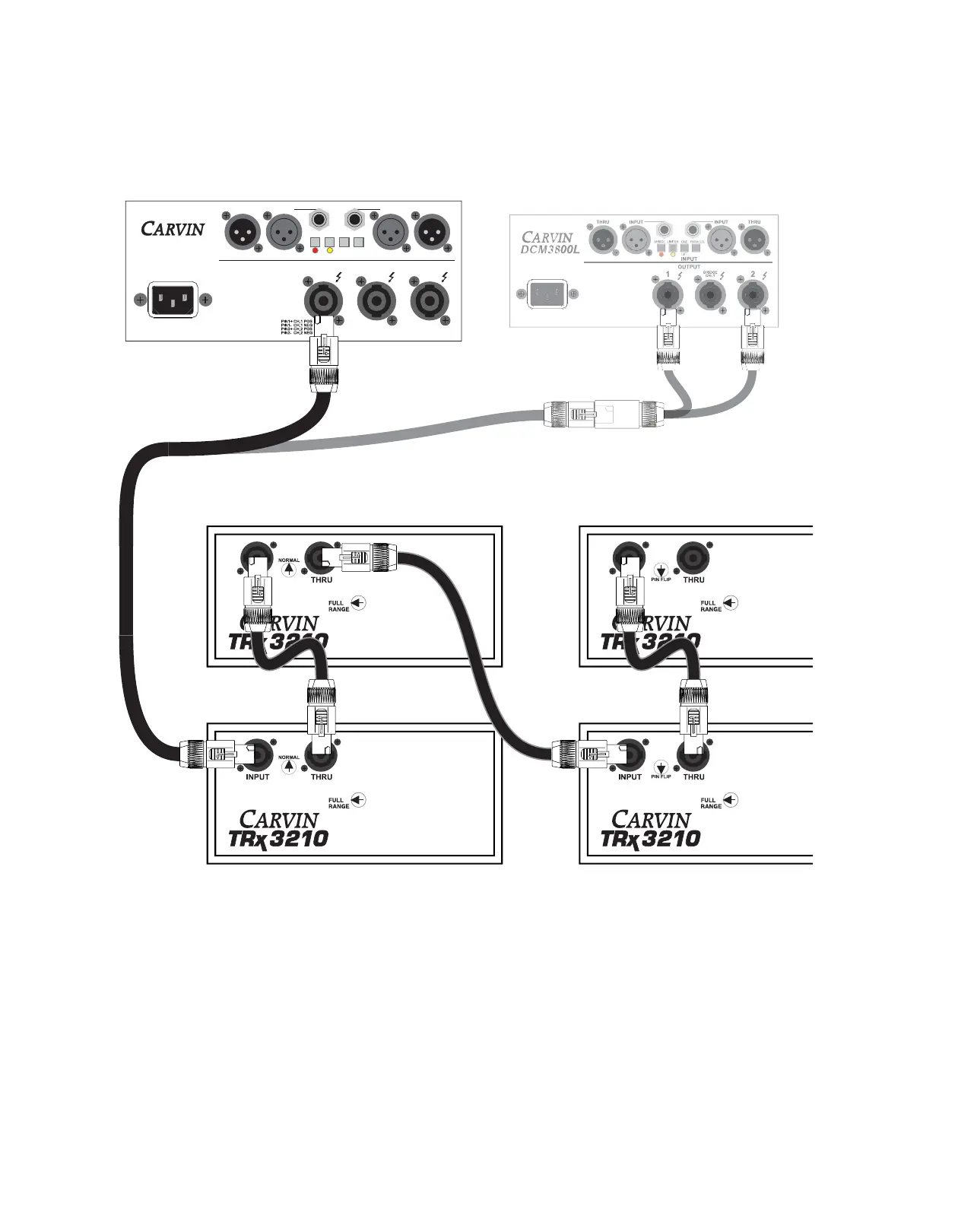

Full-Range Passive Hook-up 2 normal Pin Mode, 2 Pin Flip Mode
