CARVIN TRx Series User Manual

12

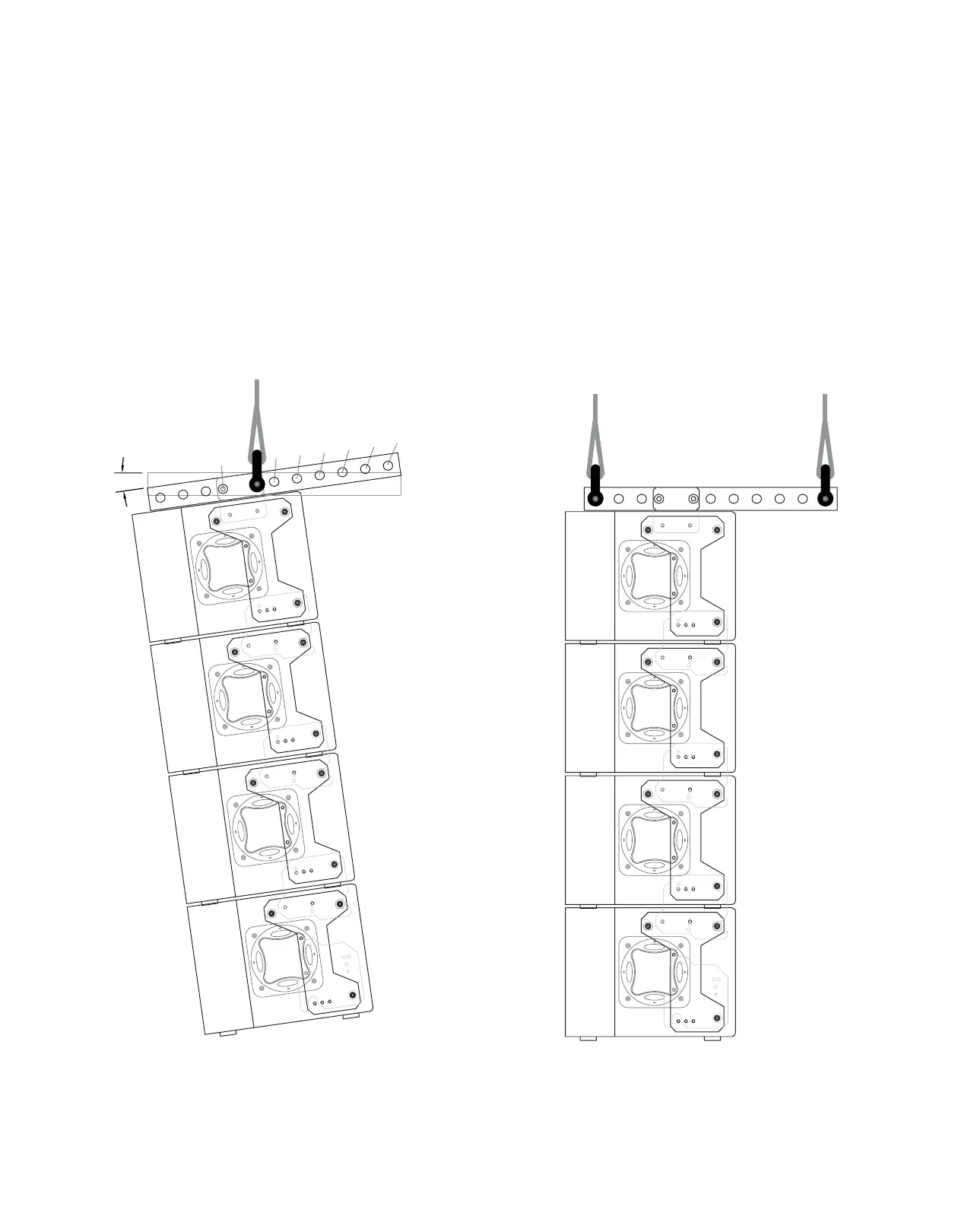

T-Bar Hang Points
To change the angle of the array, attach the shackle to the dierent lug holes as shown in the below diagram. e
further back from center, a larger degree of forward tilt is achieved.
By using two hang points and two chain motor hoists, the angle of the array can be changed by raising or low-
ering the front or back of the array by adjusting the chain motors. is requires the use of a second shackle as
shown in the diagram below.
8˚
12˚
16˚
20˚
8˚
1-POINT
HANG
(4 CABS)
2-POINT
HANG
0˚
23˚
26˚
29˚
8˚
12˚
16˚
20˚
8˚
1-POINT
HANG
(4 CABS)
2-POINT
HANG
0˚
23˚
26˚
29˚
To chain
motor hoist
To chain
motor hoist
To chain
motor hoist
